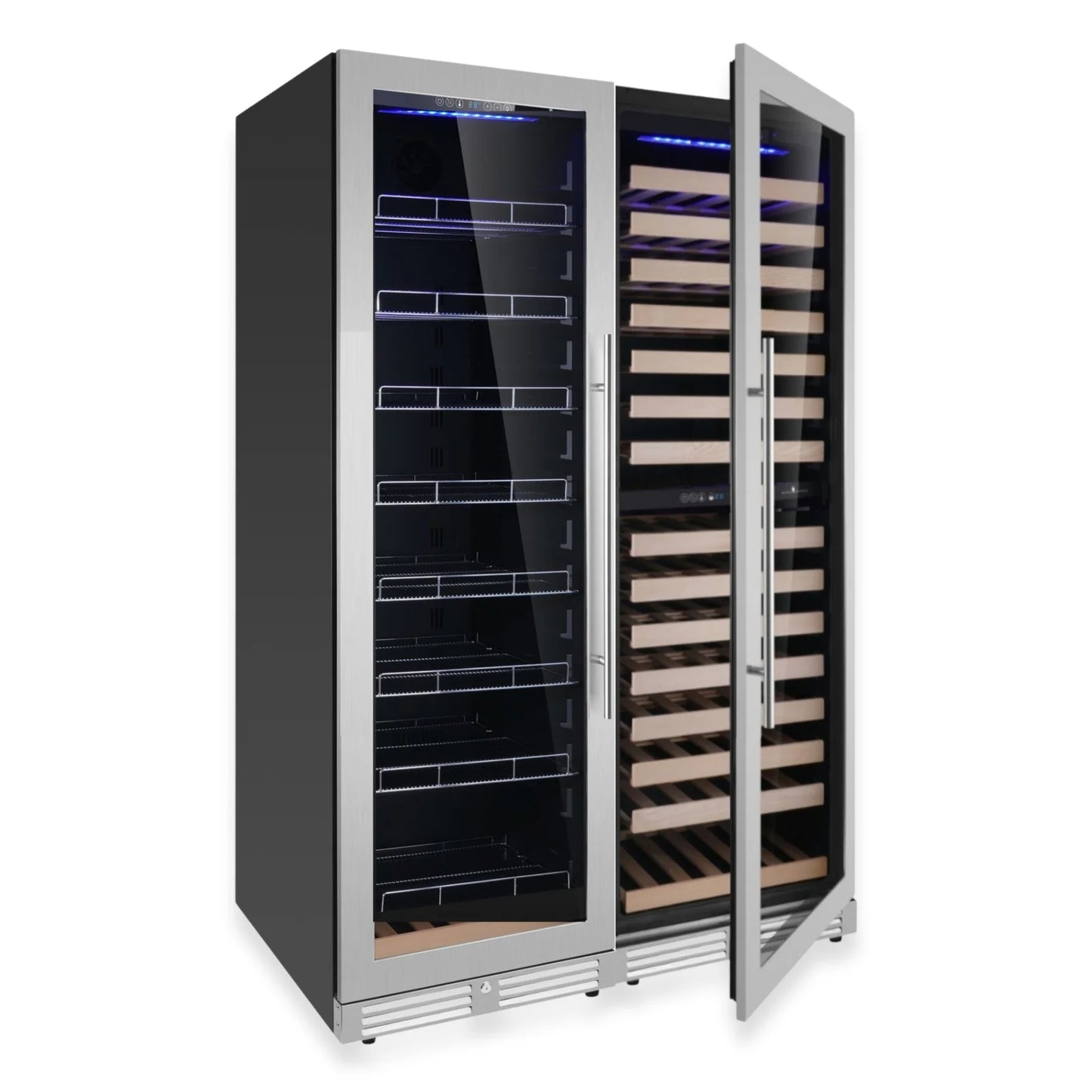

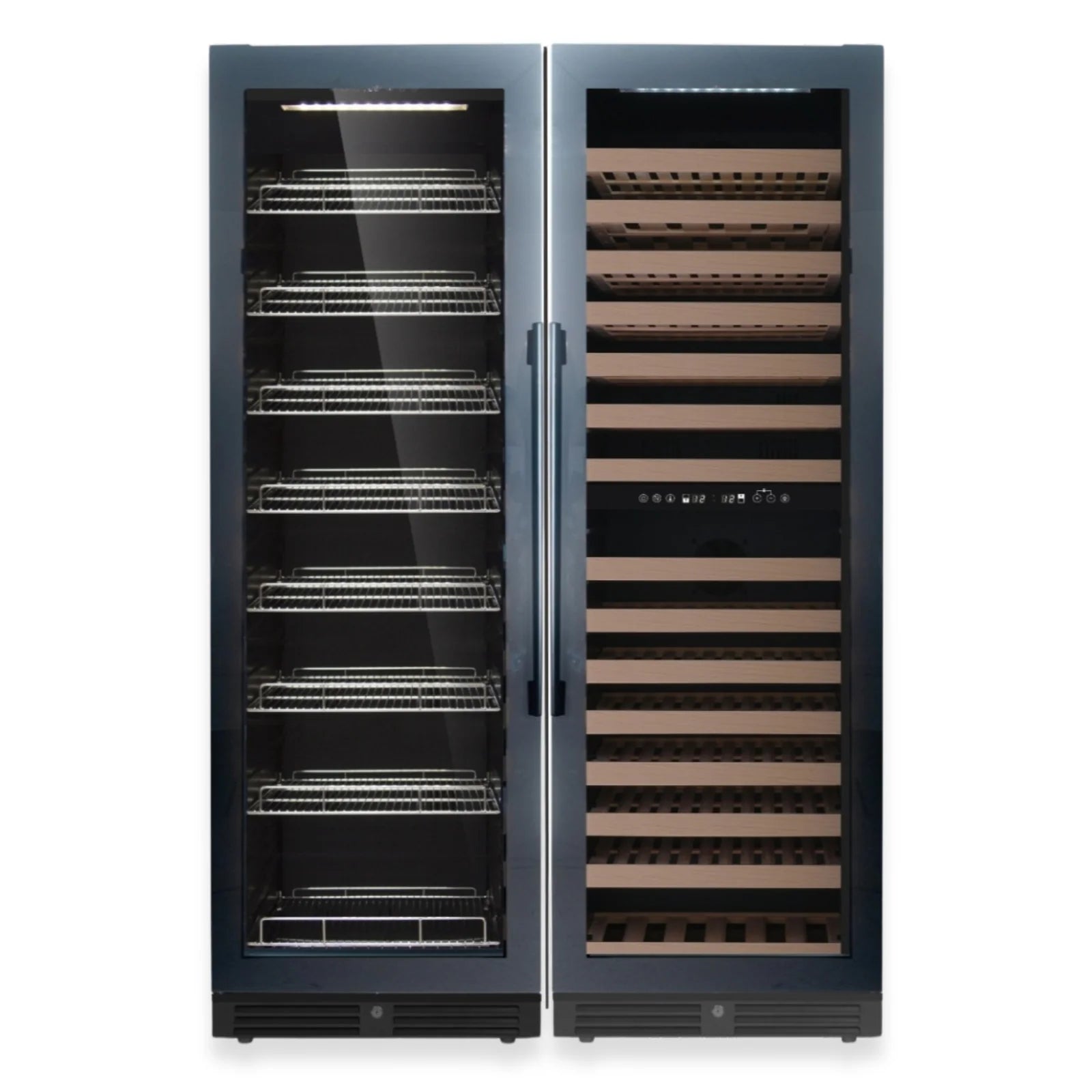

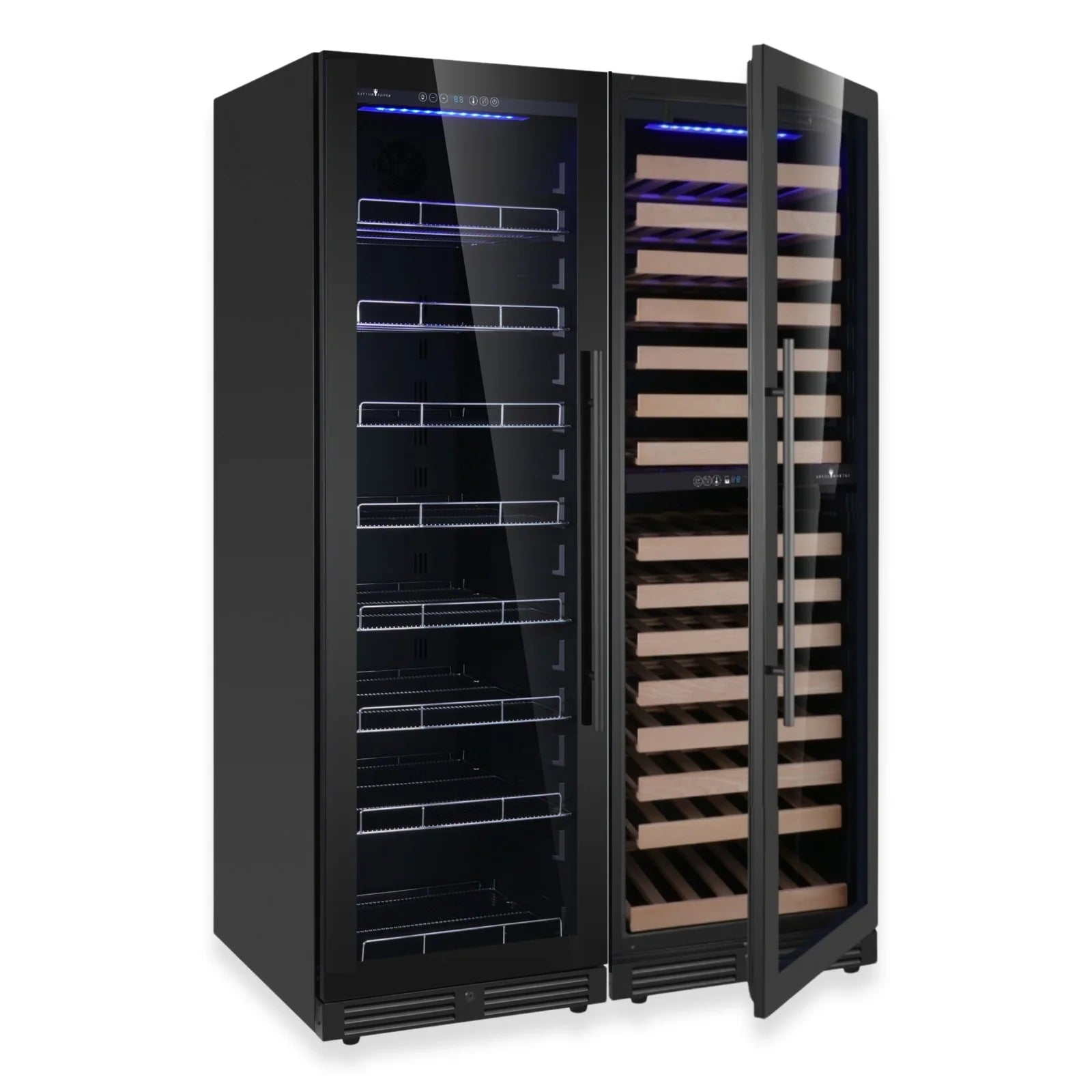

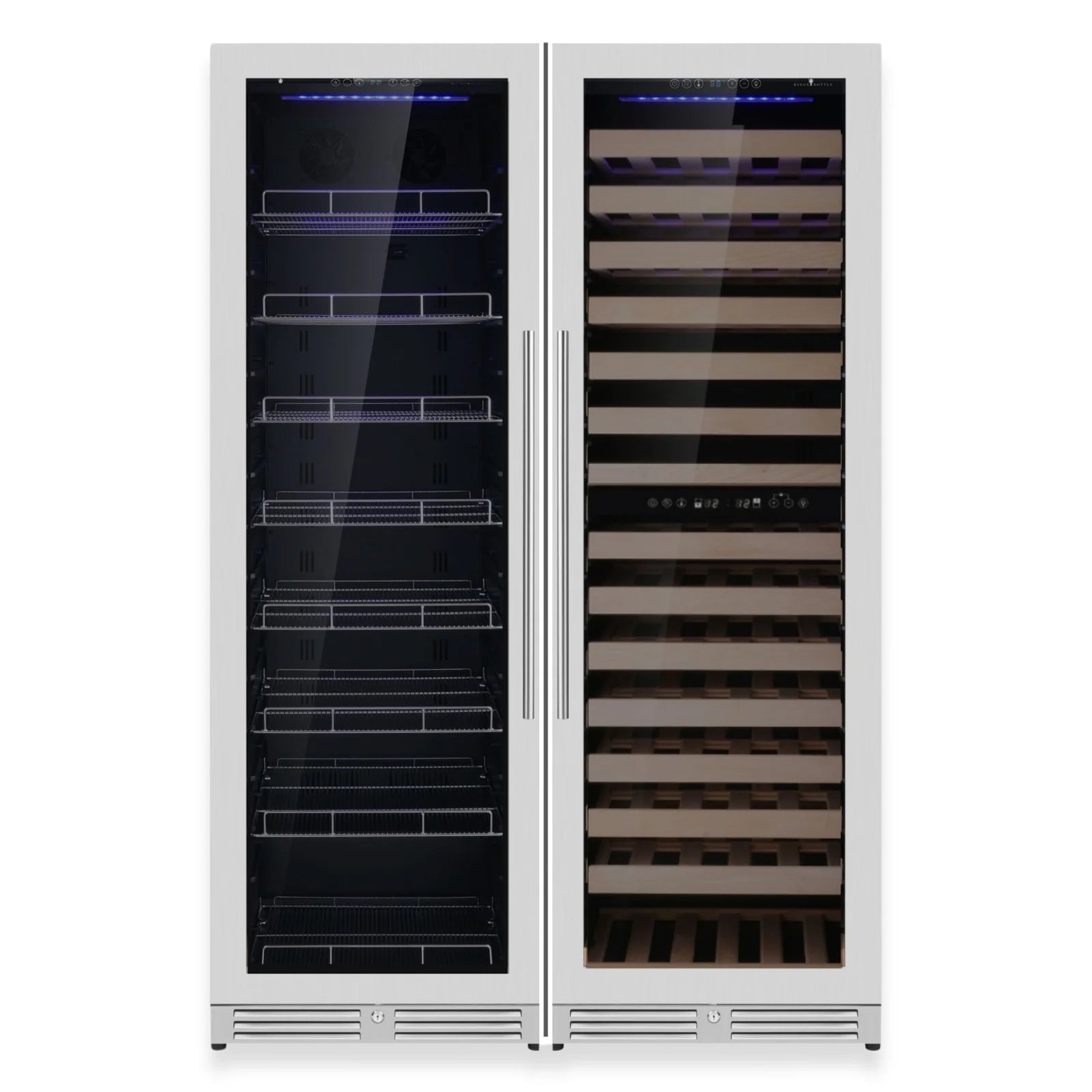

Upright Wine & Beverage Cooler Combo with Triple Temp Zones
The Upright Wine & Beverage Cooler Combo with Triple Temperature Zones is designed for those who want the perfect balance between wine storage and beverage cooling. Its dual-zone wine compartments allow you to store both red and white wines at their ideal serving temperatures, while the dedicated beverage section keeps drinks perfectly chilled.
Powered by the Embraco Inverter Compressor, this unit delivers ultra-quiet, energy-efficient cooling with precise control. The Low-E glass door protects against UV rays and reduces condensation, preserving the quality of your collection. With adjustable shelving, seamless stainless steel design, and flexibility for both freestanding and built-in installation, this cooler is the ultimate solution for home or commercial use.
Specifications
-
Volume: 30 CF (850 Liters) Total, 15 CF (425 Liters) Each
-

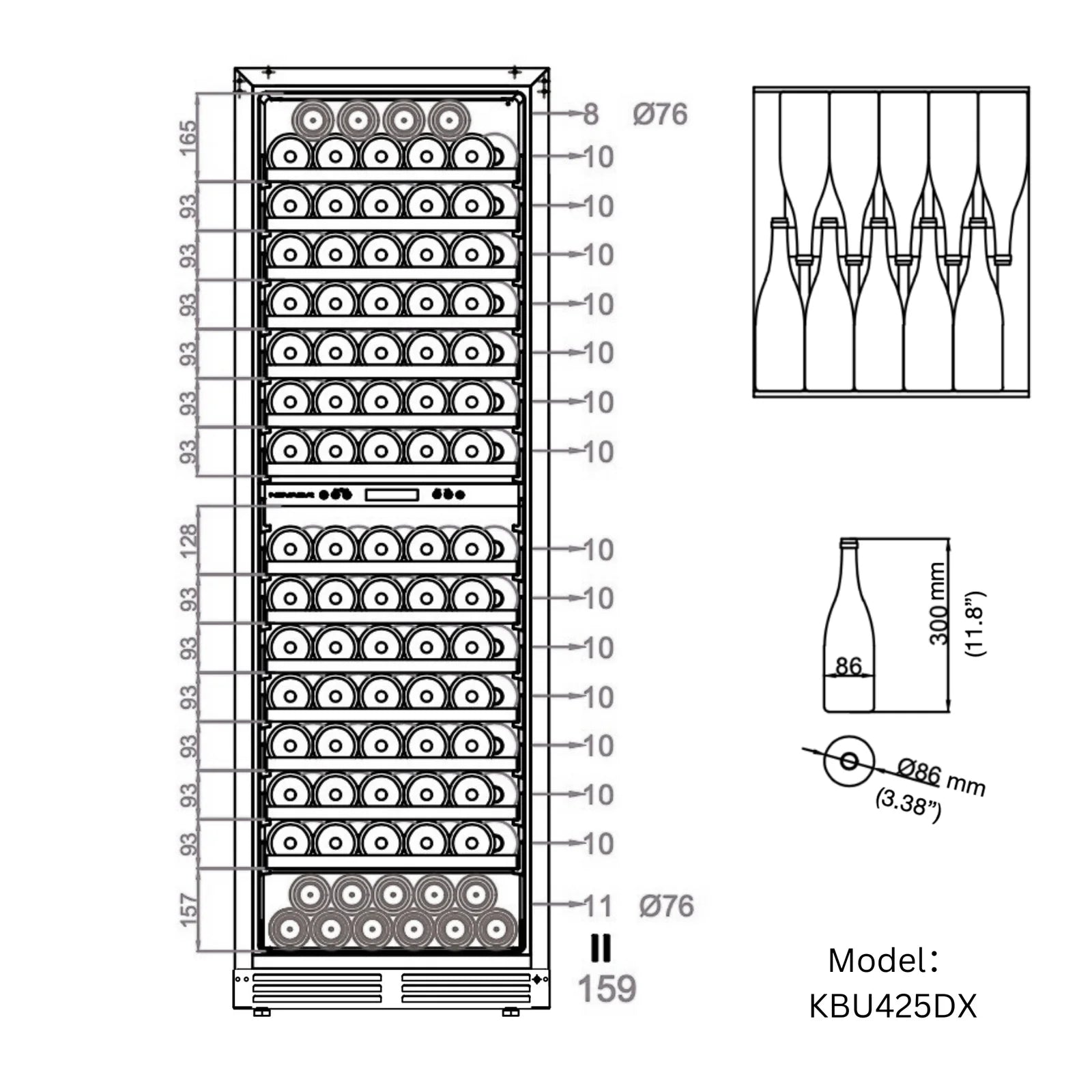

Capacity (Wine): 159 bottles
-

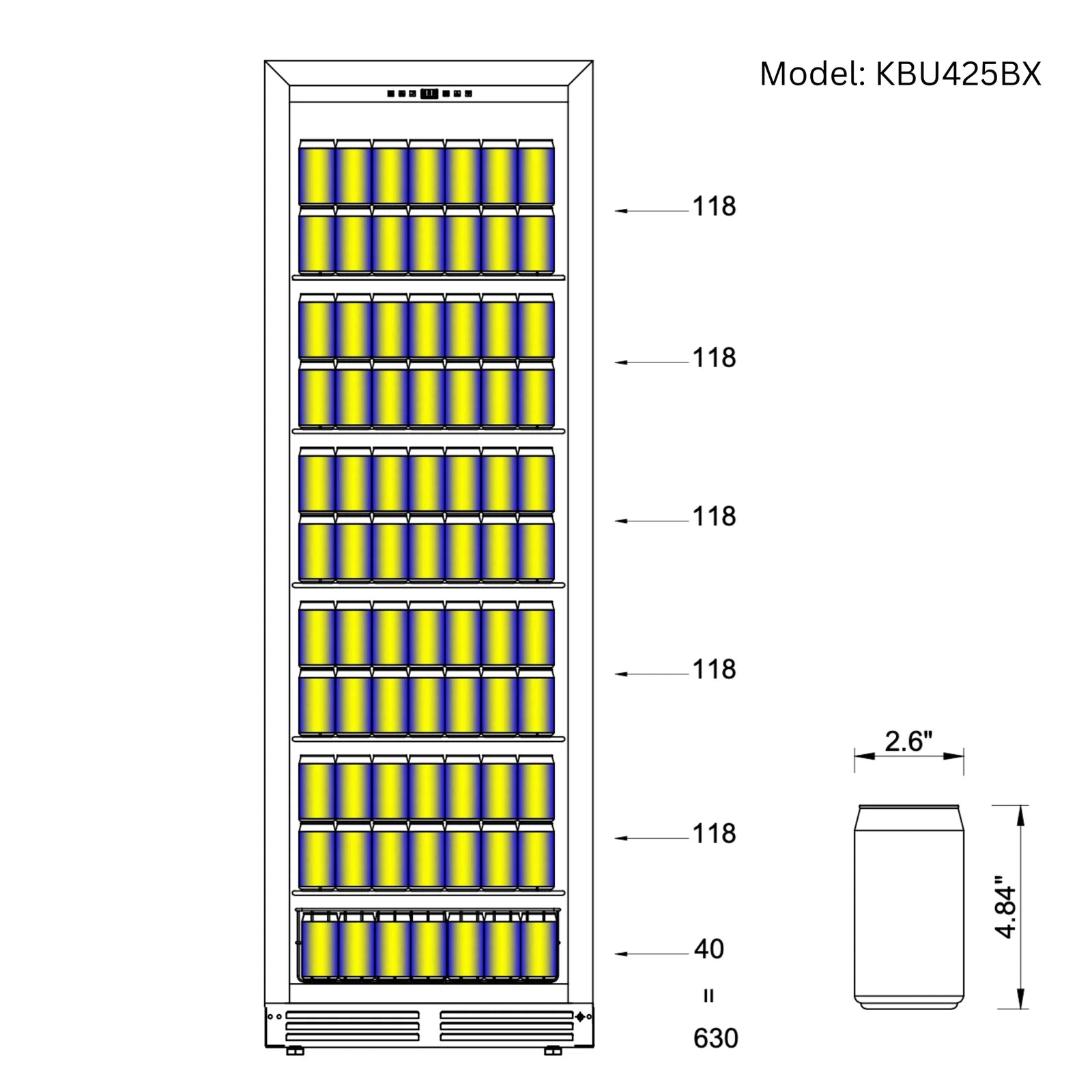

Capacity (Beverages): 630 cans
-
Installation Type: Built-In or Freestanding
-
Climate Type: N
-
Temperature Zones: Triple Zone
-
Adjustable Temperature Range:
-
Beer Side: 35°F to 68°F (2°C to 20°C)
-
Wine Side:
-
Upper Zone: 35°F to 54°F (2°C to 12°C)
-
Lower Zone: 54°F to 68°F (12°C to 20°C)
-
-
-
Operating Room Temperature: 32–100°F (0–38°C)
-
Shelf Configuration: 8 Chromed Steel Shelves + 15 Beech Wooden Shelves
-
Dimensions: 46.84” W x 27.36” D x 70.86” H (includes stand height 0.59”)
Electrical
-
Compressor: Embraco Inverter Compressors
-
Power Supply: 110–115V / 60Hz
-
Rated Power Input: 330W (165W per unit)
-
Rated Current: 3.4A (1.7A per unit)
-
Refrigerant: R600A / 52g per unit
Key Features
Inverter Compressor
-
Premium Embraco inverter compressor
-
Super quiet operation
-
Reduces energy consumption by up to 40%
Patented Sink of Compressor
-
Increases air circulation around the compressor
-
Improves cooling performance
-
Minimizes vibration and noise
Low-E Glass
-
Reduces condensation and energy loss
-
Provides UV protection
-
Acts as an invisible insulating barrier
-
Coating reduces heat transfer for improved efficiency
Fan-Circulated Air-Cooling System
-
Ensures even temperature distribution
-
Controls humidity to protect wine and beverages
Activated Carbon Filter
-
Filters impurities from circulating air
-
Keeps cabinet fresh and odor-free

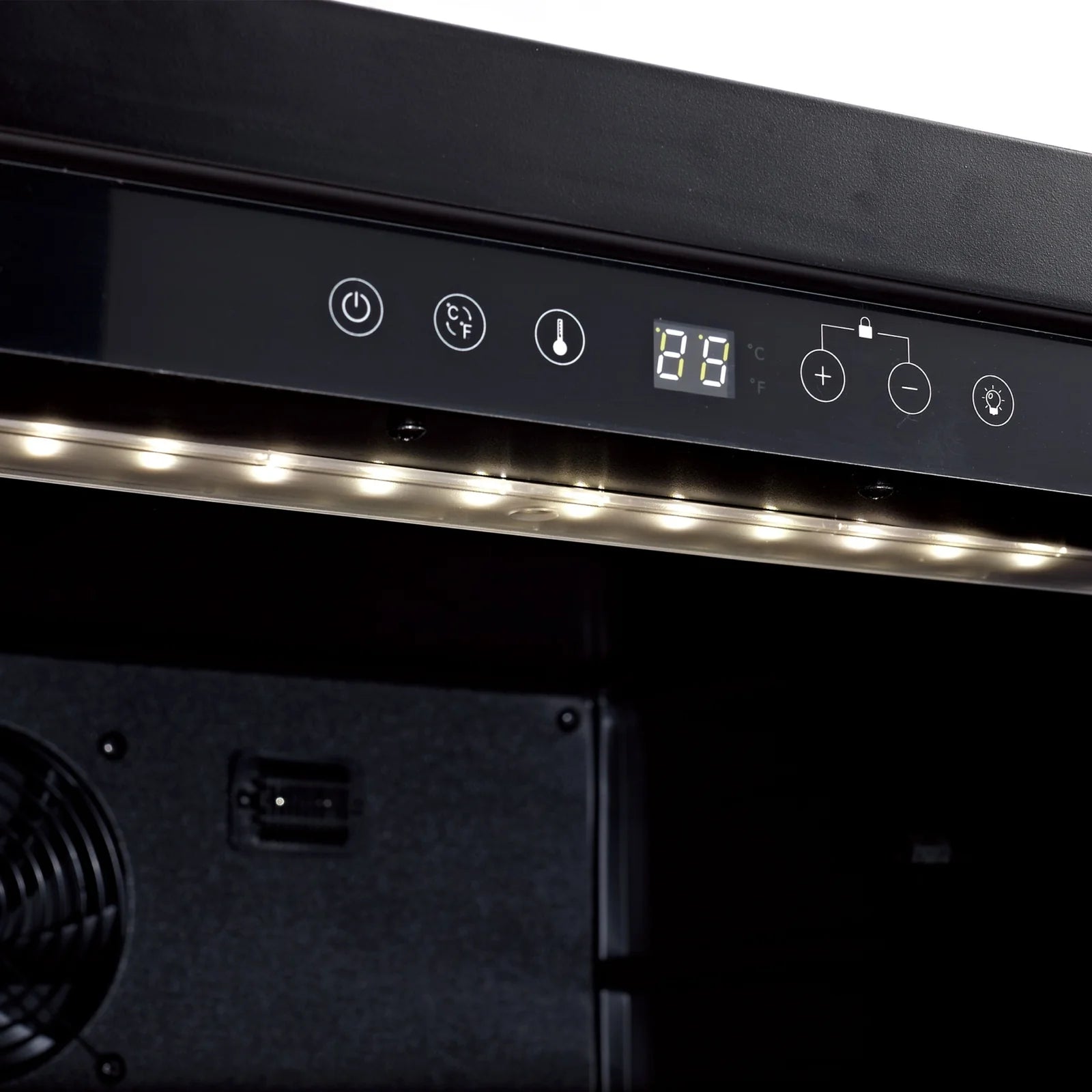

LED Display with Digital Touchpad
-
Intuitive and easy-to-use controls
-
Accurate temperature readings and adjustments

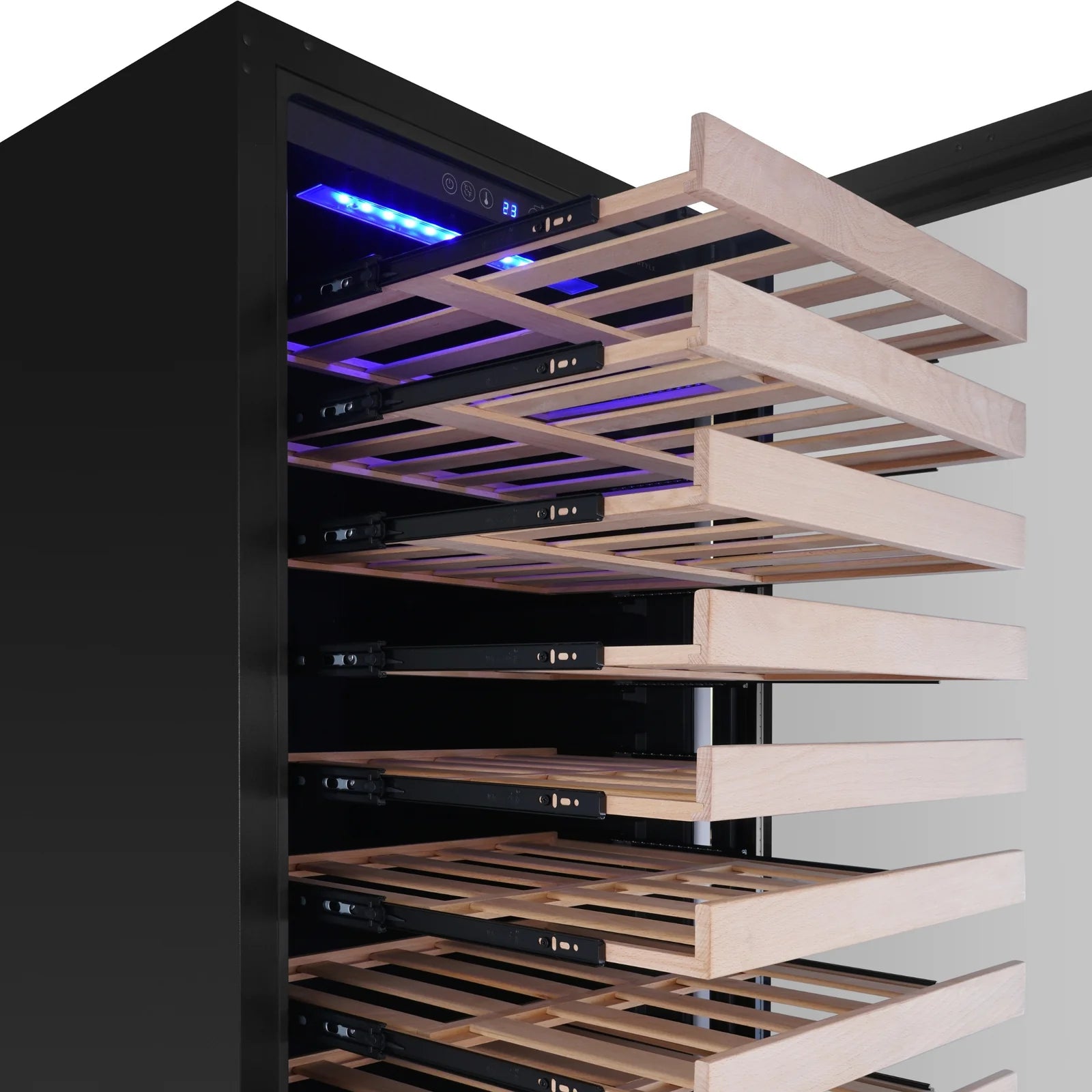

Beech Wooden Shelves
-
Full-extension pull-out design
-
Durable, wine-friendly beech wood
-
Fits standard and large bottles (up to 3.39" diameter)
Magnetic Switch
-
Door-open alarm after 2 minutes
Hidden Door Hinge
-
Laminated steel plate with integrated molding
-
Seamless built-in design

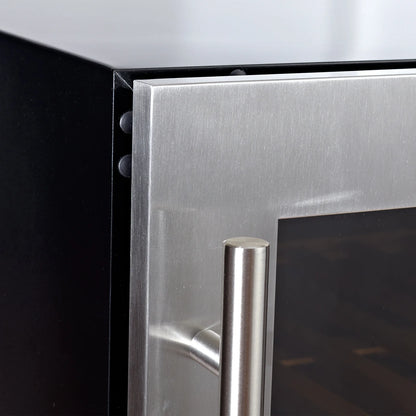

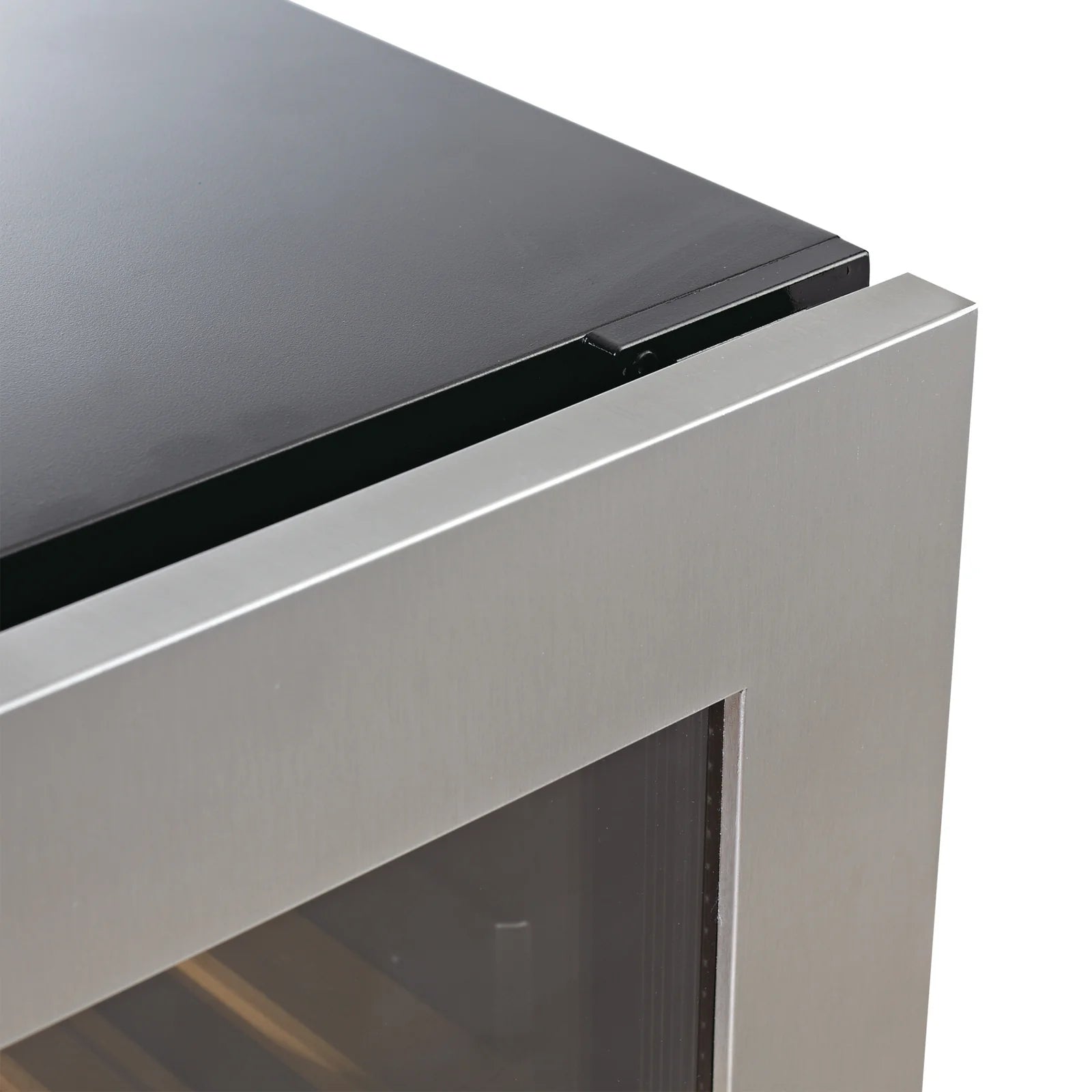

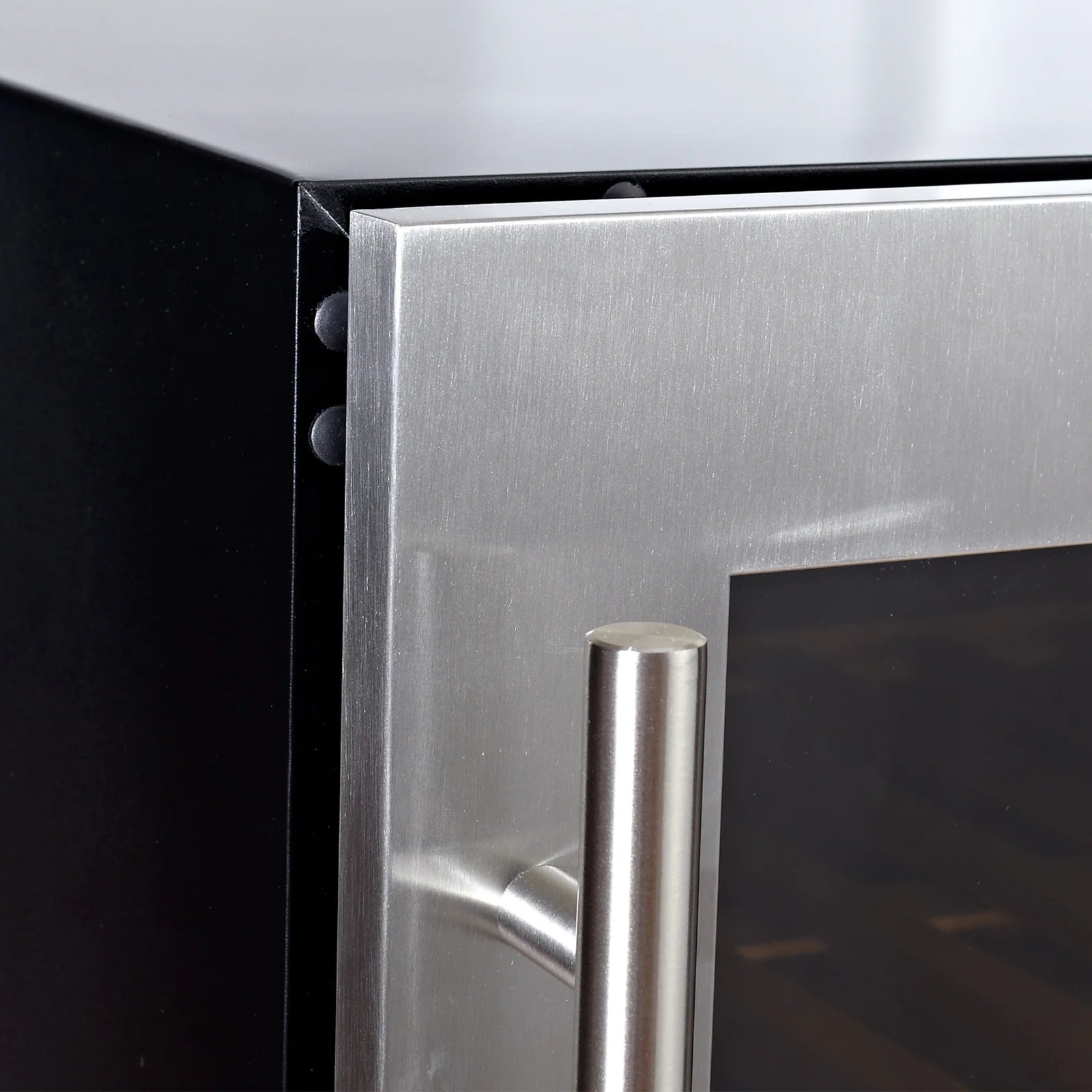

Seamless Stainless Steel Door Frame
-
Thin, modern profile with artistic finish
45mm Thickness C-Pantane
-
Thicker foam insulation layer
-
Enhances cooling performance
-
Reduces overall energy consumption
Dimensions & Diagrams
Technical Dimensions
Installation Diagrams
