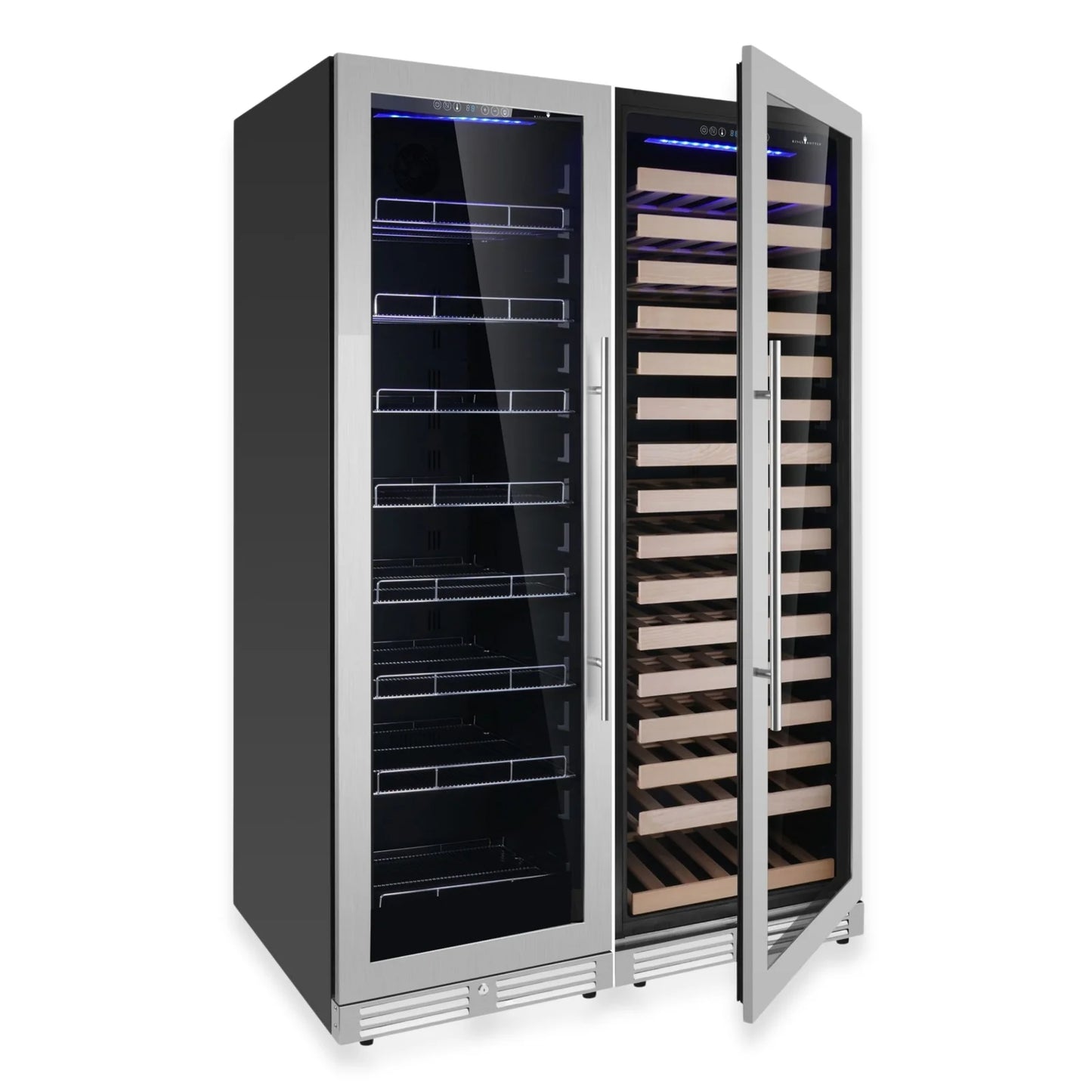

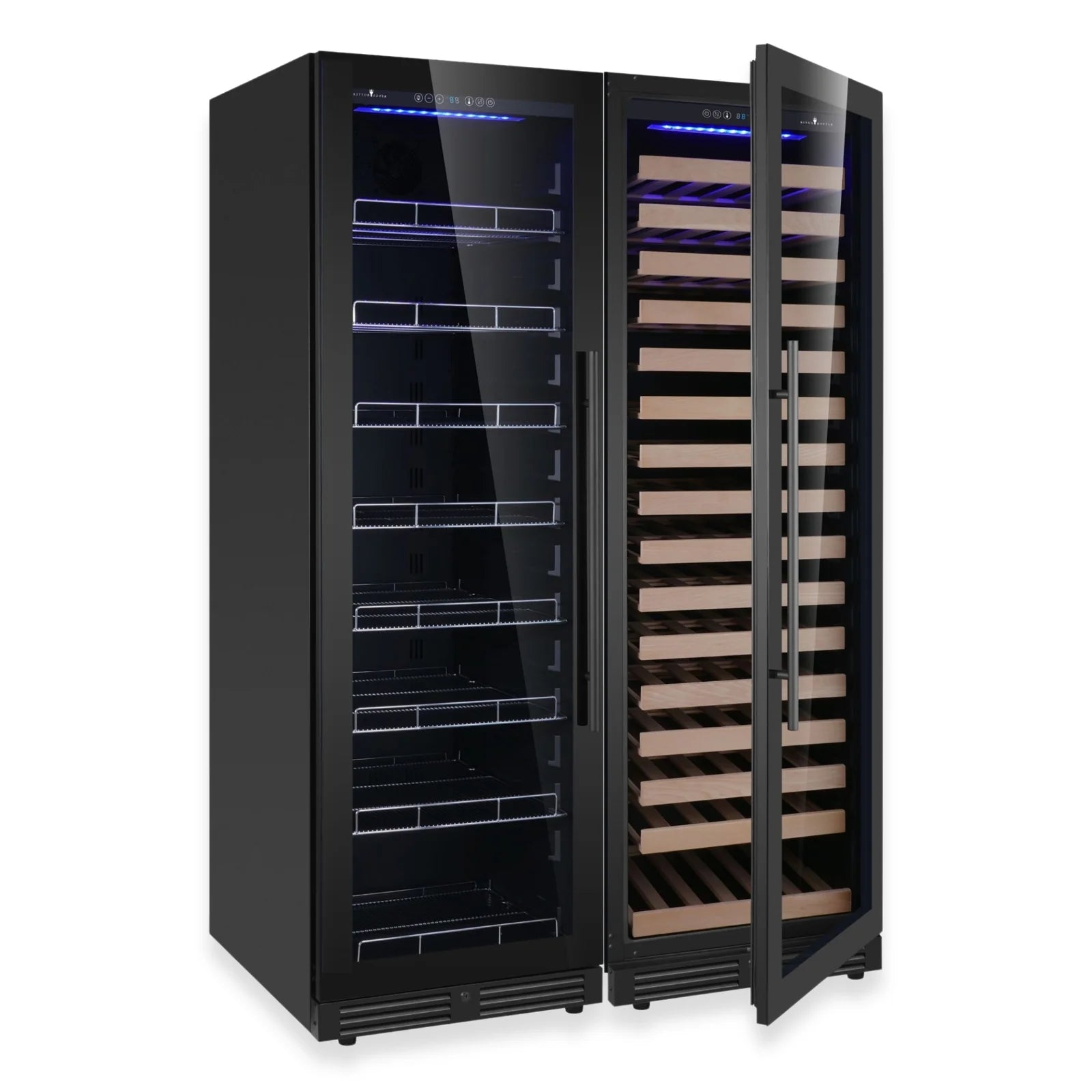

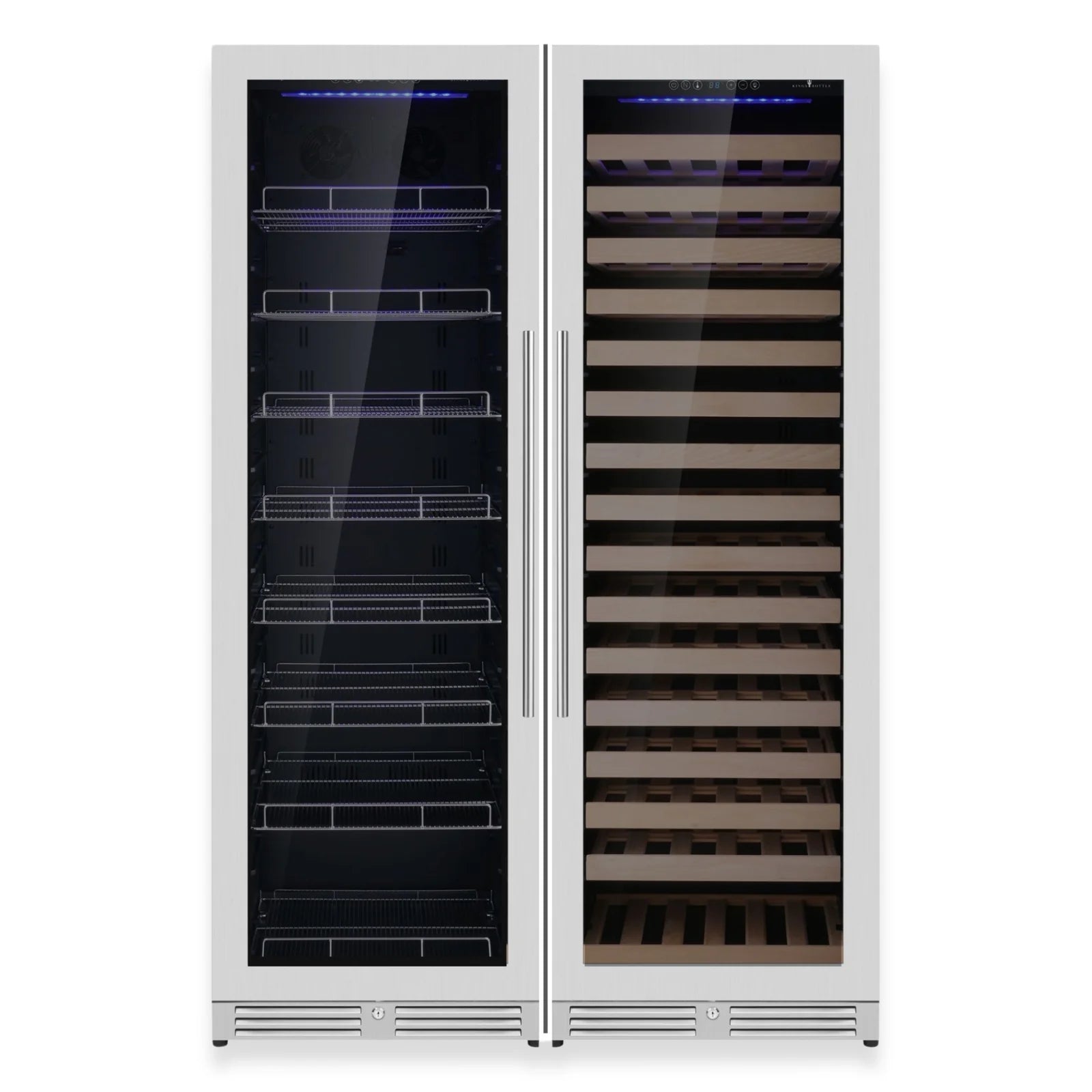

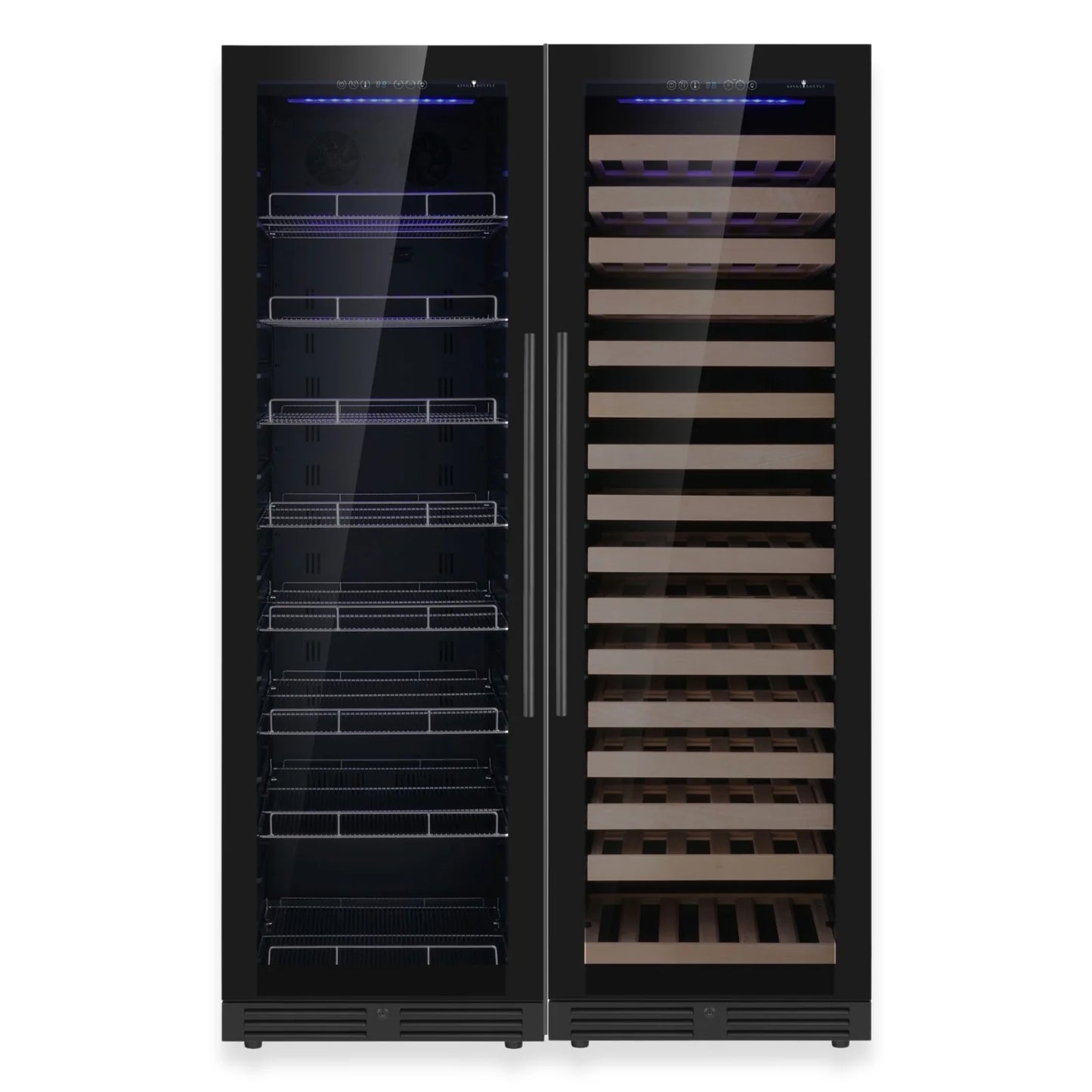

Ultimate Wine & Beverage Upright Refrigerator Combo
The Ultimate Wine & Beverage Upright Refrigerator Combo provides stylish and efficient storage for both wine and beverages. Designed with dual cooling zones, the upper zone preserves wine at ideal serving conditions, while the lower zone keeps beverages perfectly chilled.
Powered by the Embraco Inverter Compressor, this unit offers ultra-quiet operation, reduced vibration, and up to 40% less energy consumption than traditional compressors. Its sleek Low-E glass door enhances energy efficiency, minimizes condensation, and protects contents from harmful UV rays.
Specifications
-
Volume: 30 CF (850 Liters) Total, 15 CF (425 Liters) Each
-

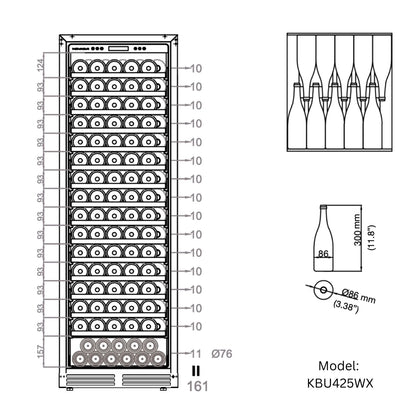

Capacity (Wine): 161 bottles
-

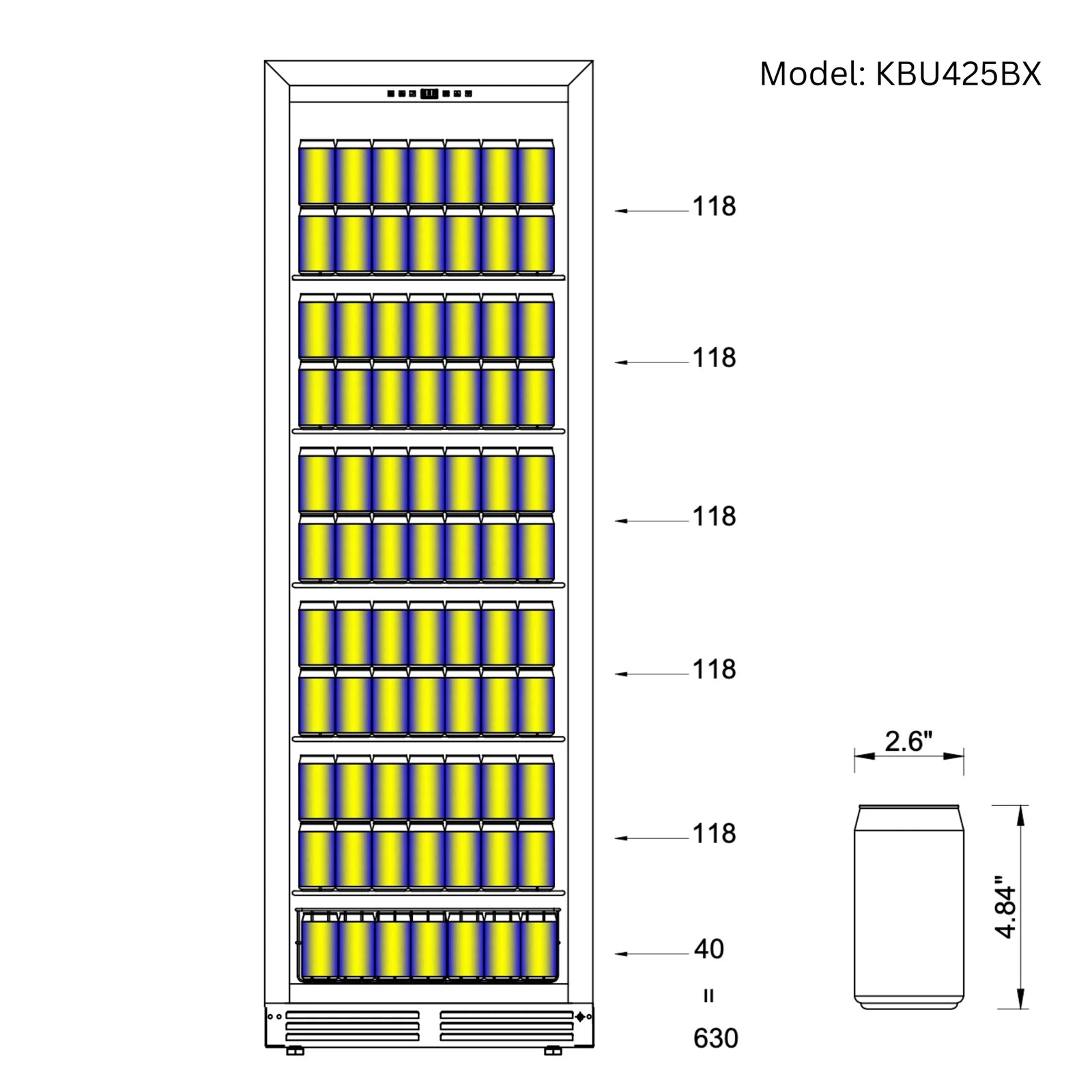

Capacity (Beverages): 630 cans
-
Installation Type: Built-In or Freestanding
-
Climate Type: N
-
Temperature Zones: Dual Zone
-
Adjustable Temperature Range:
-
Beer Side: 35°F to 68°F (2°C to 20°C)
-
Wine Side: 35°F to 68°F (2°C to 20°C)
-
-
Operating Room Temperature: 32–100°F (0–38°C)
-
Shelf Configuration: 8 Chromed Steel Shelves + 16 Beech Wooden Shelves
-
Dimensions: 46.84” W x 27.36” D x 70.86” H (includes stand height 0.59”)
Electrical
-
Compressor: Embraco Inverter Compressor
-
Power Supply: 110–115V / 60Hz
-
Rated Power Input: 330W (165W per unit)
-
Rated Current: 3.4A (1.7A per unit)
-
Refrigerant: R600A / 52g per unit
Key Features
Inverter Compressor
-
Premium Embraco Inverter Compressor
-
Whisper-quiet operation
-
Reduces energy consumption by up to 40%
Patented Sink of Compressor
-
Improves air circulation around compressor
-
Enhances cooling performance
-
Reduces vibration and noise
Low-E Glass
-
Provides UV protection
-
Minimizes condensation and energy loss
-
Acts as an invisible insulating barrier
-
Note: Thin coating reduces heat transfer, enhancing cooling performance
Fan-Circulated Air-Cooling System
-
Maintains uniform temperature throughout the cabinet
-
Controls humidity to protect wine and beverages
Activated Carbon Filter
-
Filters air impurities
-
Keeps cabinet fresh and odor-free

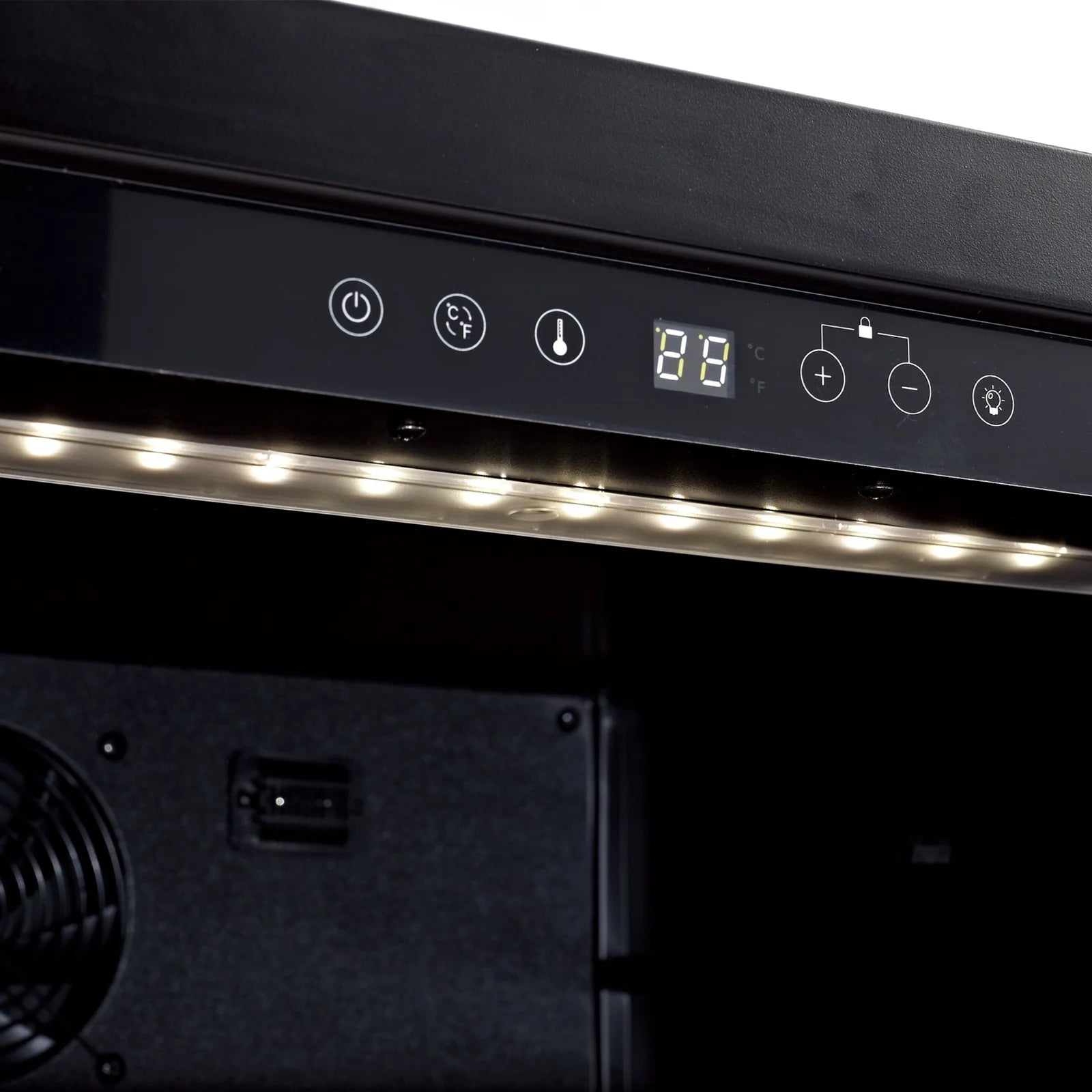

LED Display with Digital Touchpad
-
Easy-to-use controls
-
Clear, accurate temperature display

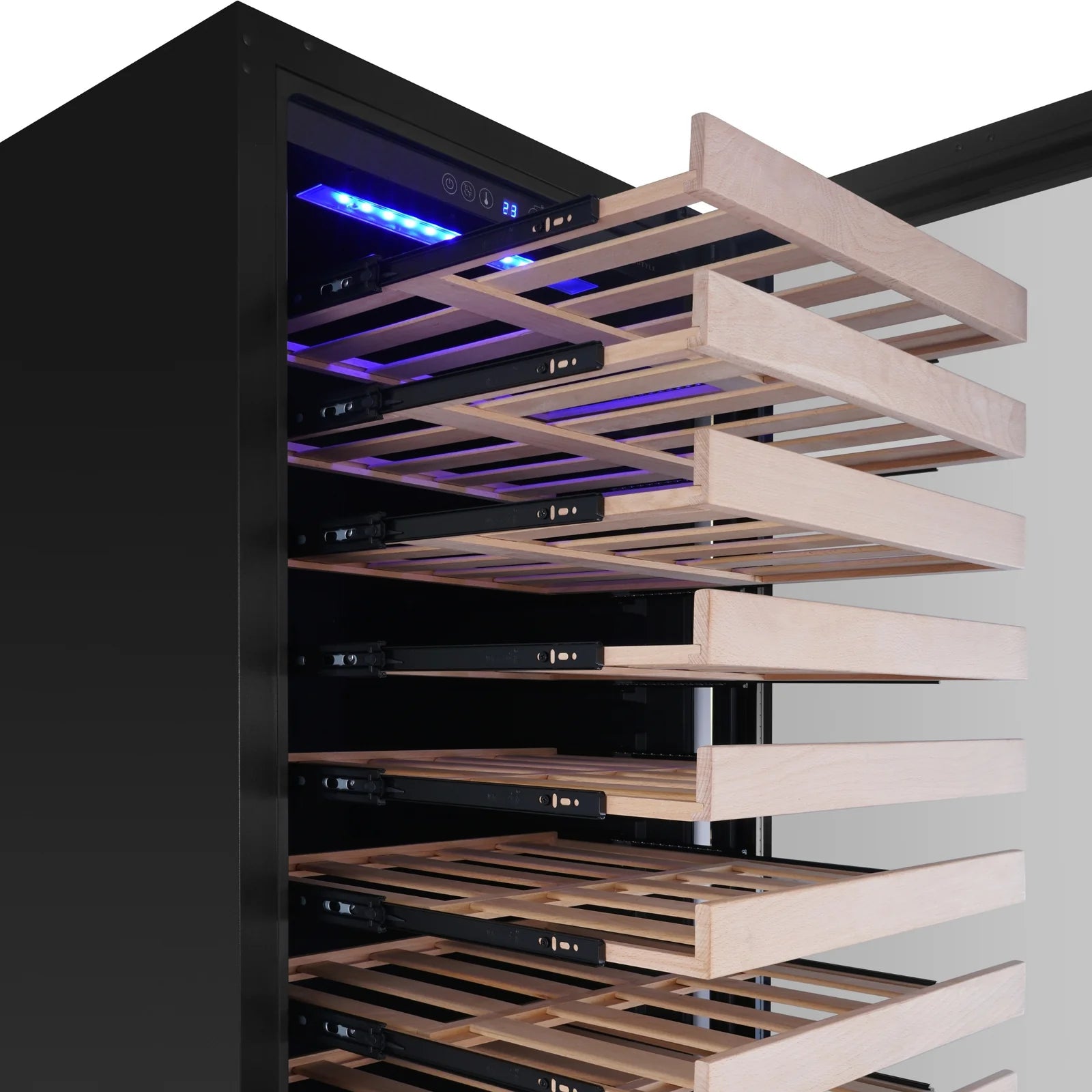

Beech Wooden Shelves
-
Full-extension pull-out design
-
Durable, wine-friendly material
-
Fits both standard and larger bottles (up to 3.39” diameter)
Magnetic Switch
-
2-minute door-open alarm for added protection
Hidden Door Hinge
-
Laminated steel plate with integrated molding
-
Full built-in seamless design

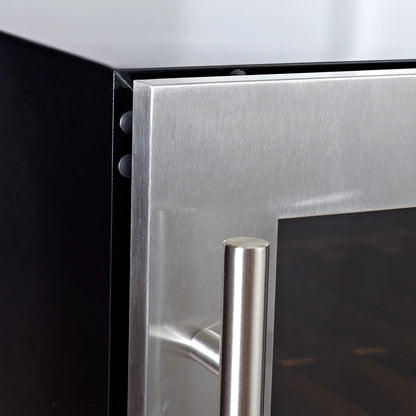

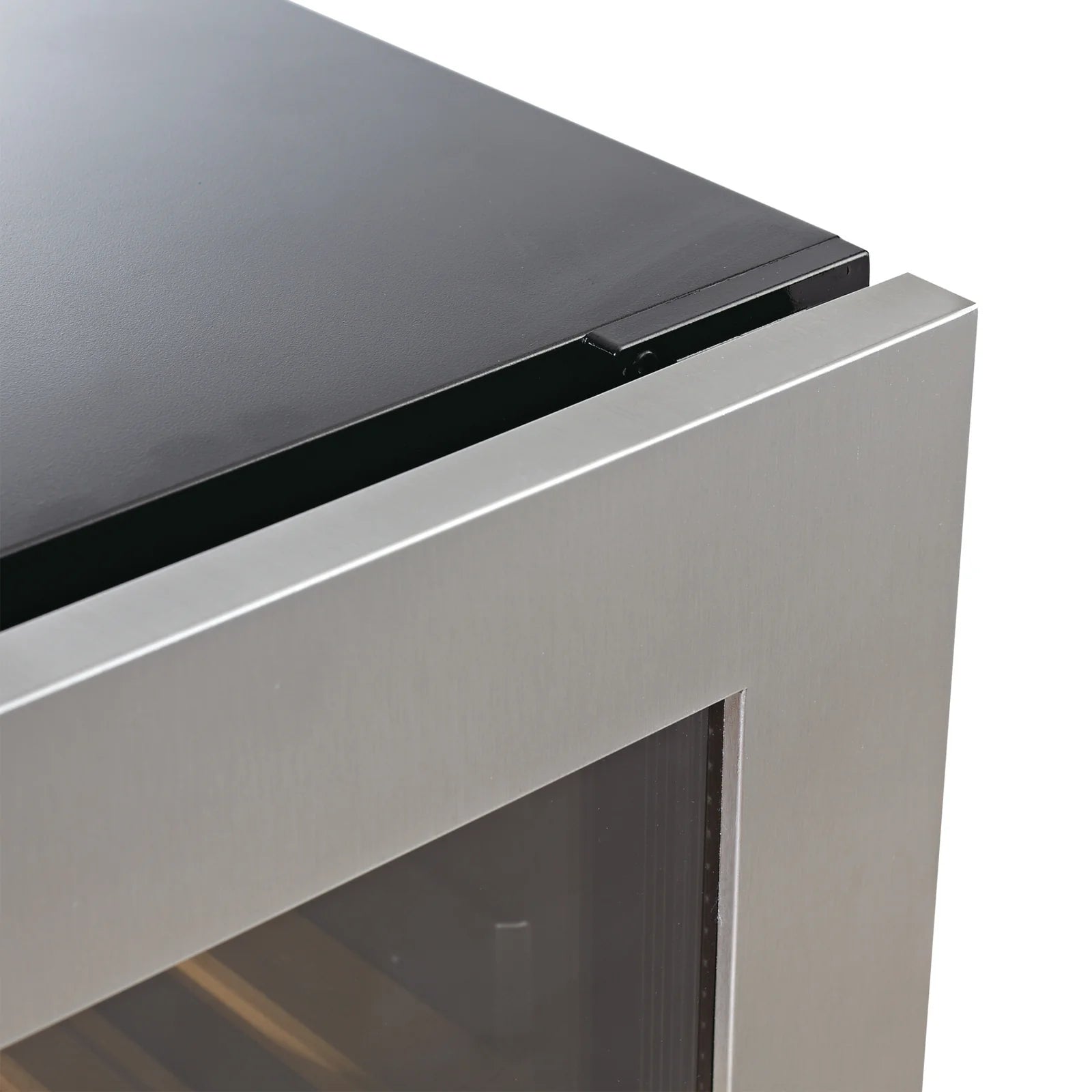

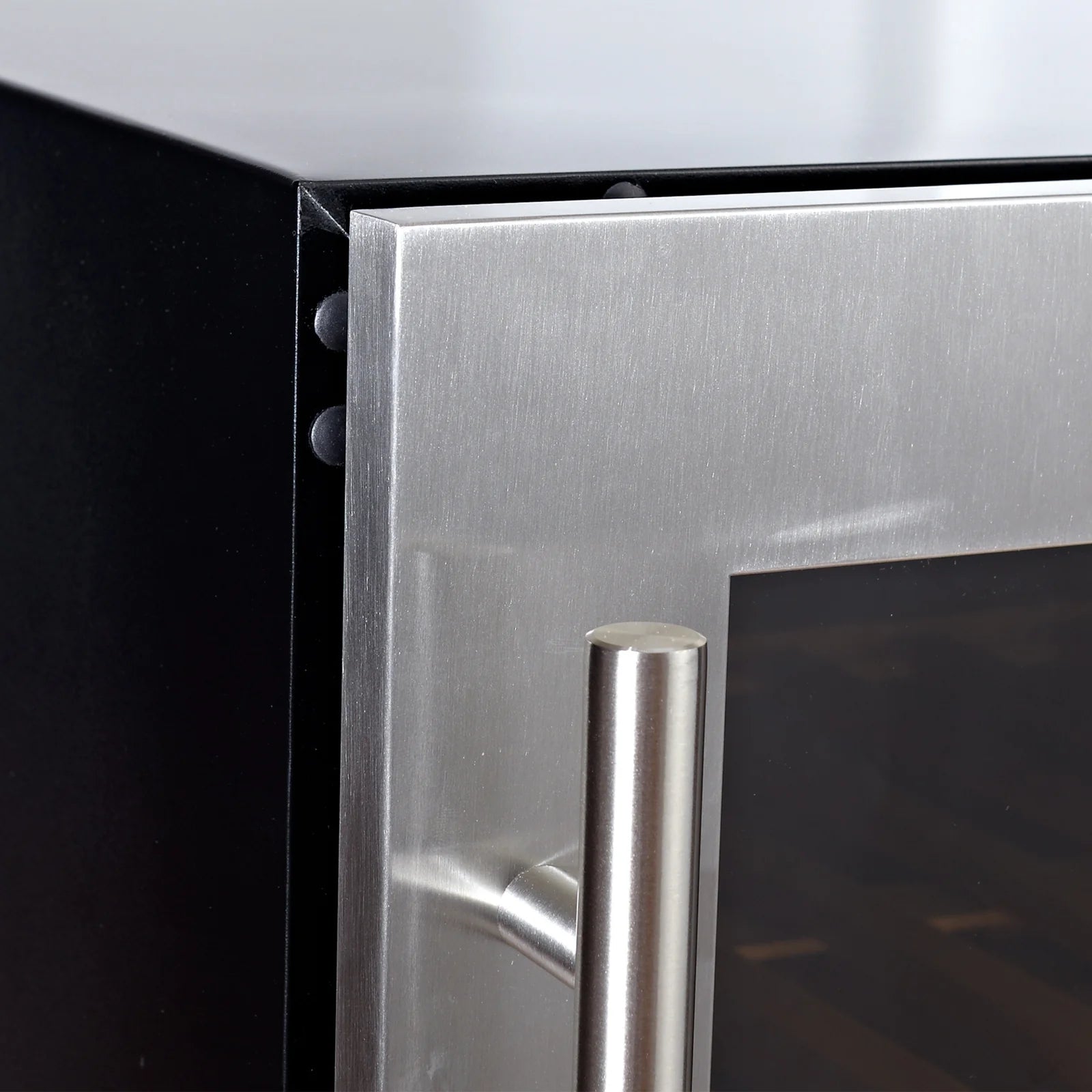

Seamless Stainless Steel Door Frame
-
Thin, modern profile with premium finish
45mm Thickness C-Pantane
-
Thicker foam improves cooling performance
-
Reduces overall energy consumption
Dimensions & Diagrams

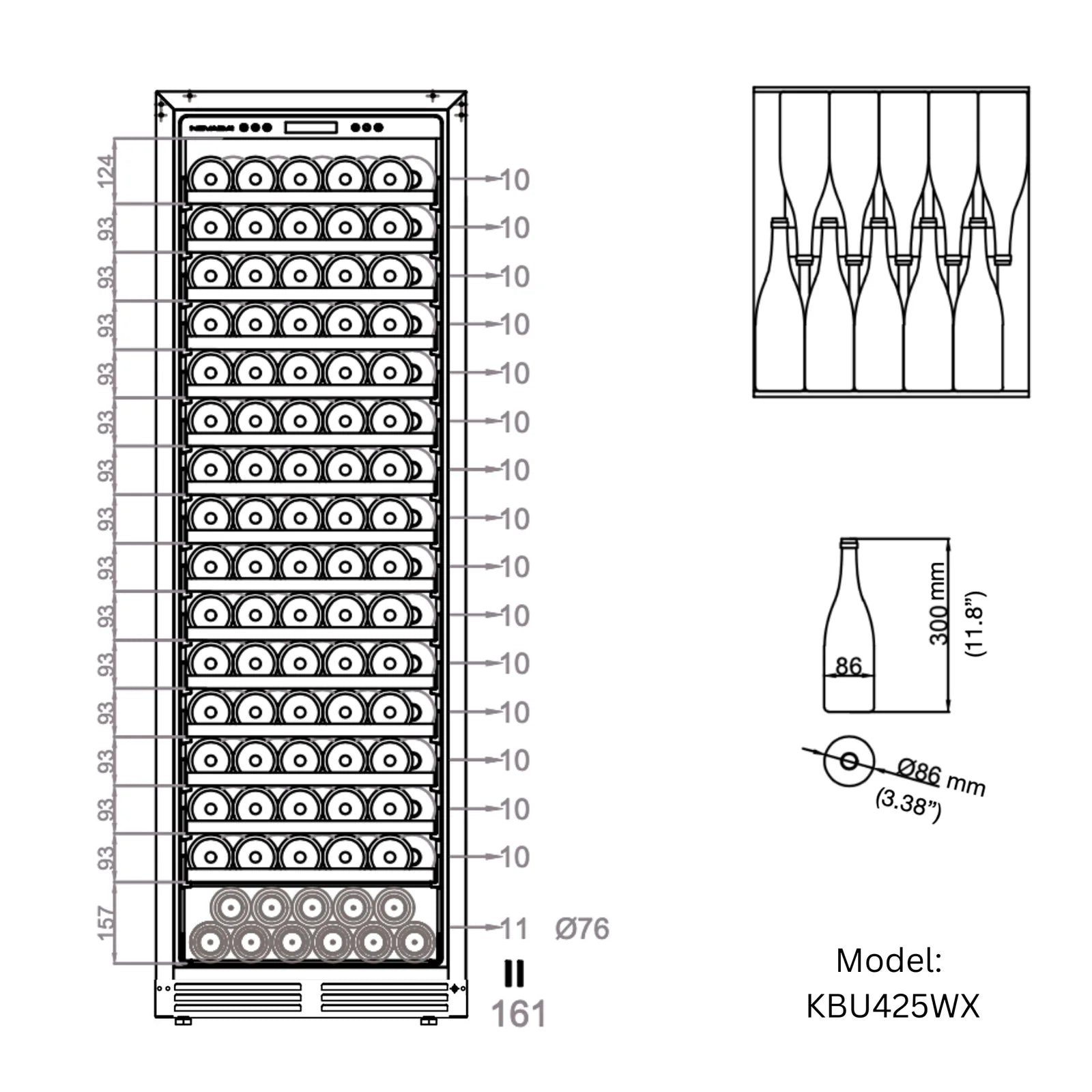

Technical Dimensions
Installation Diagrams
