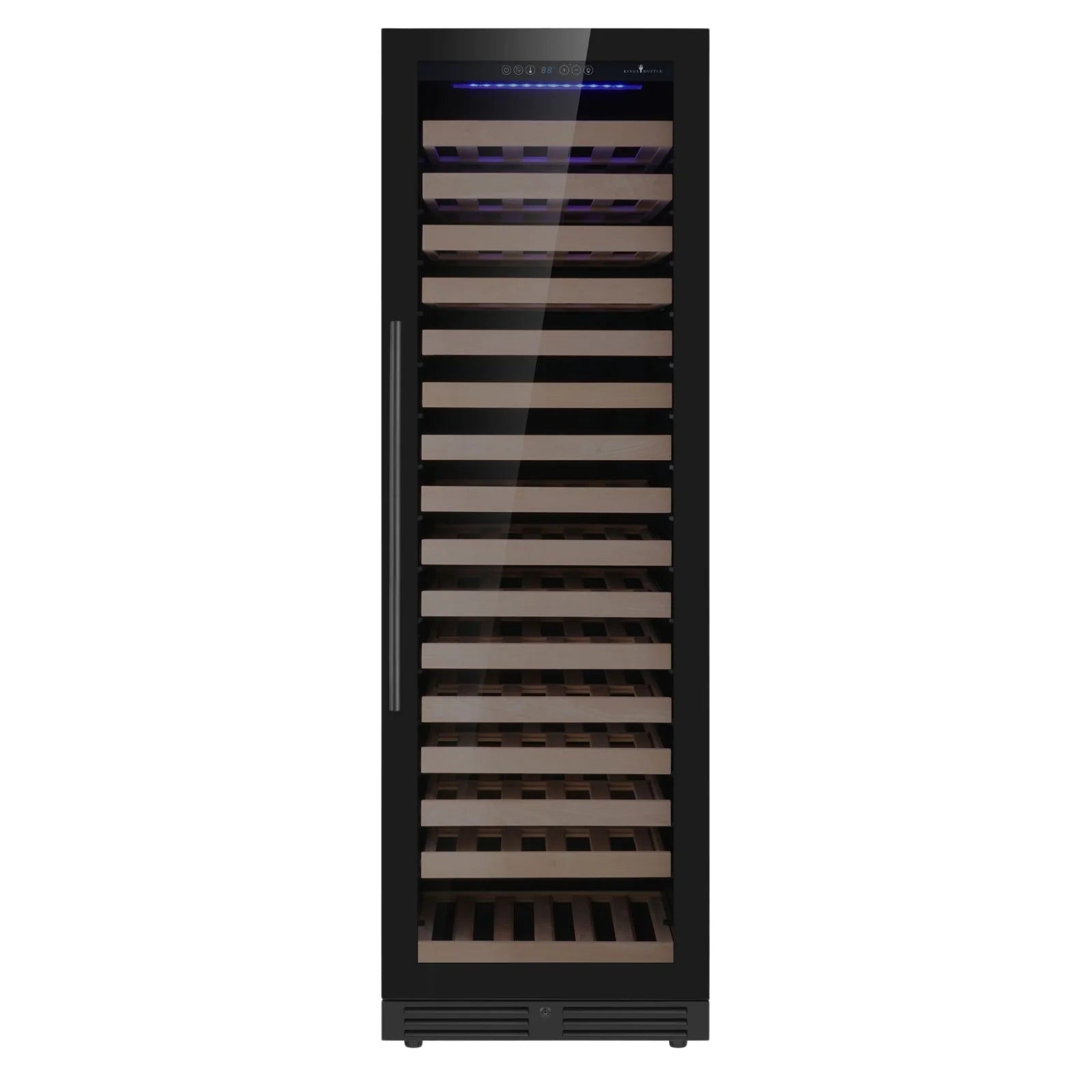

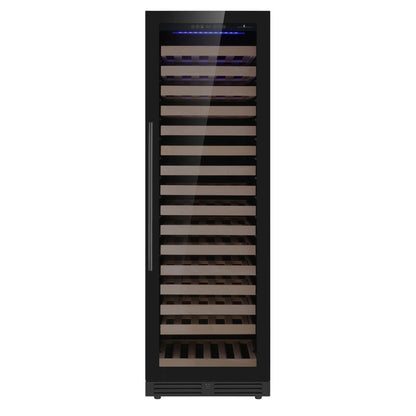

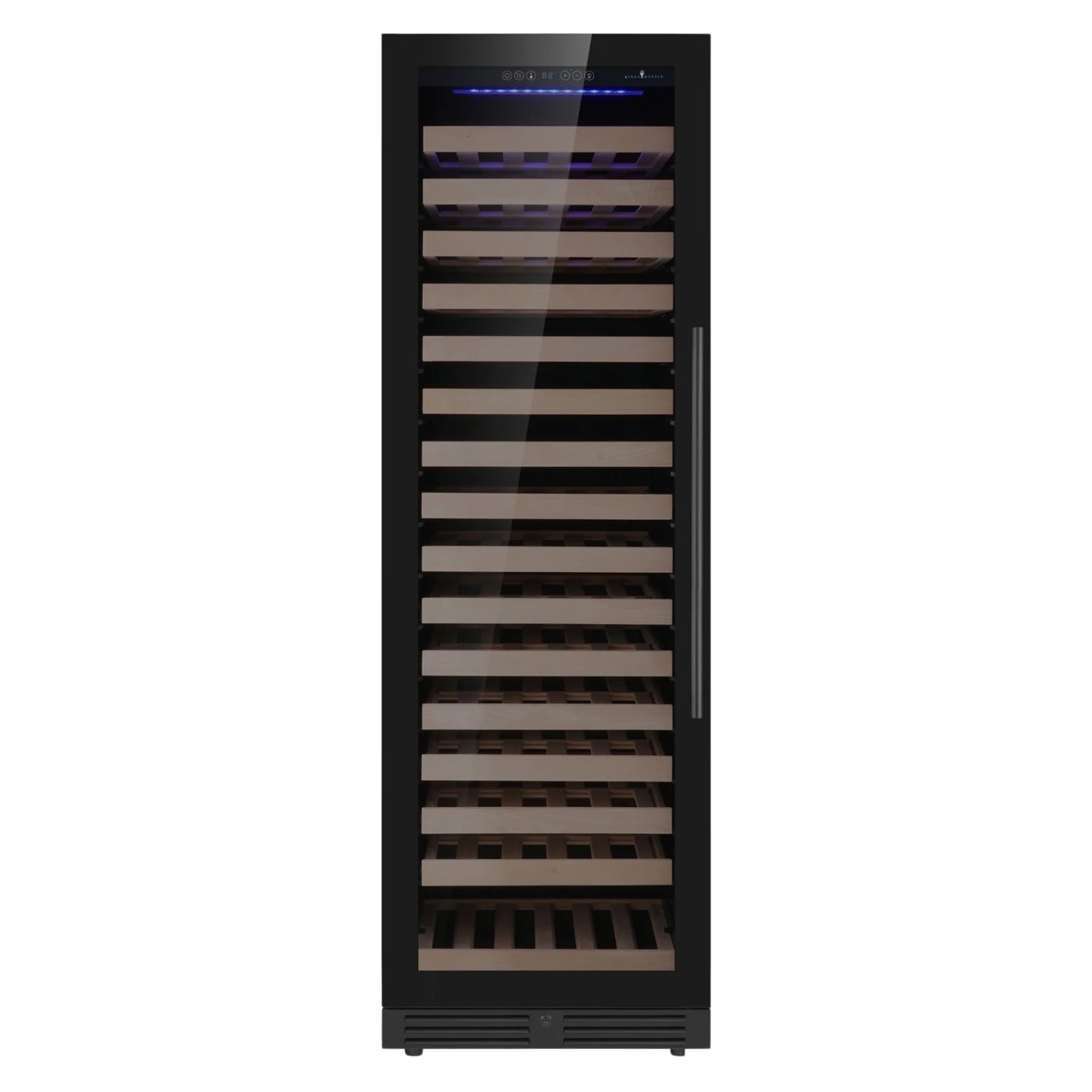

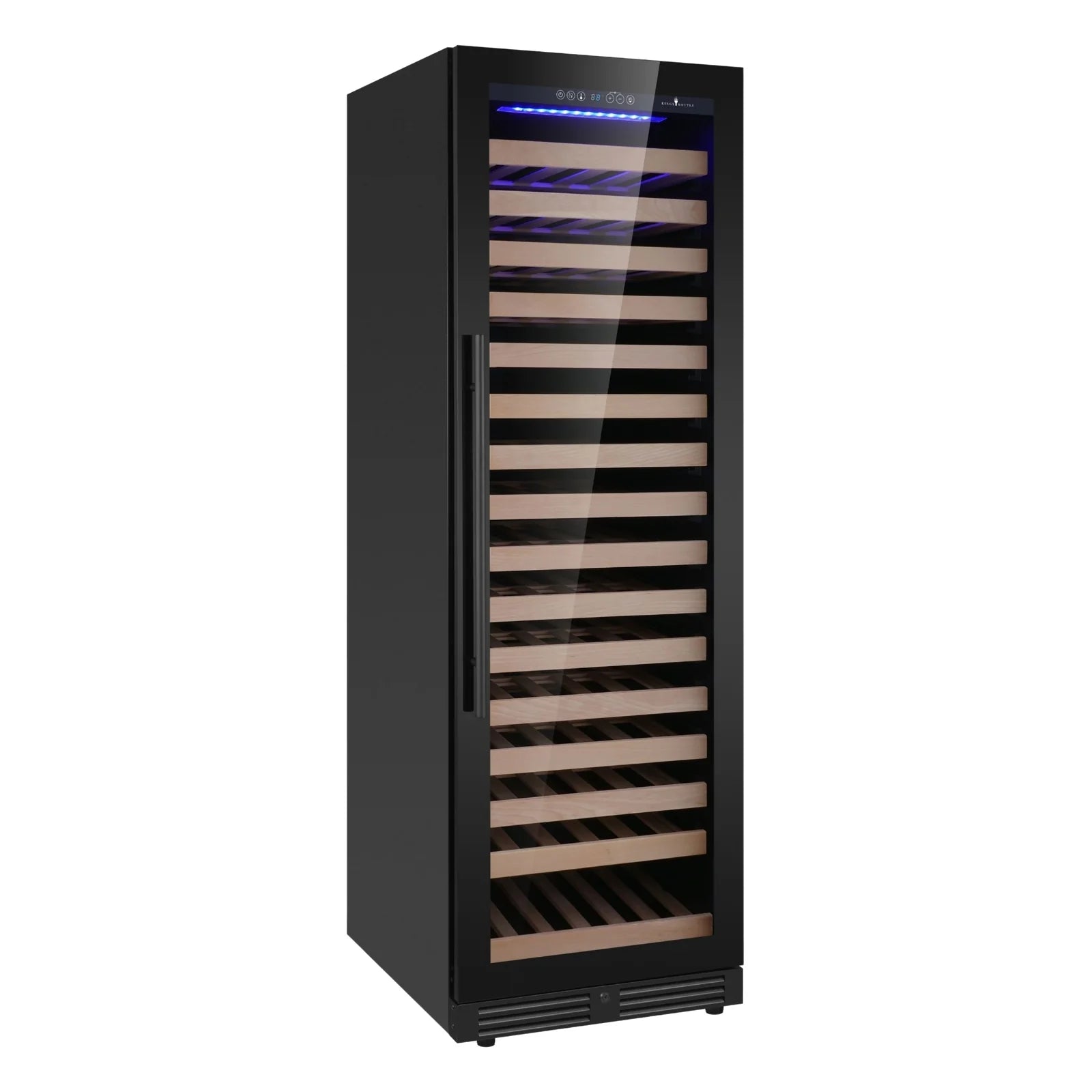

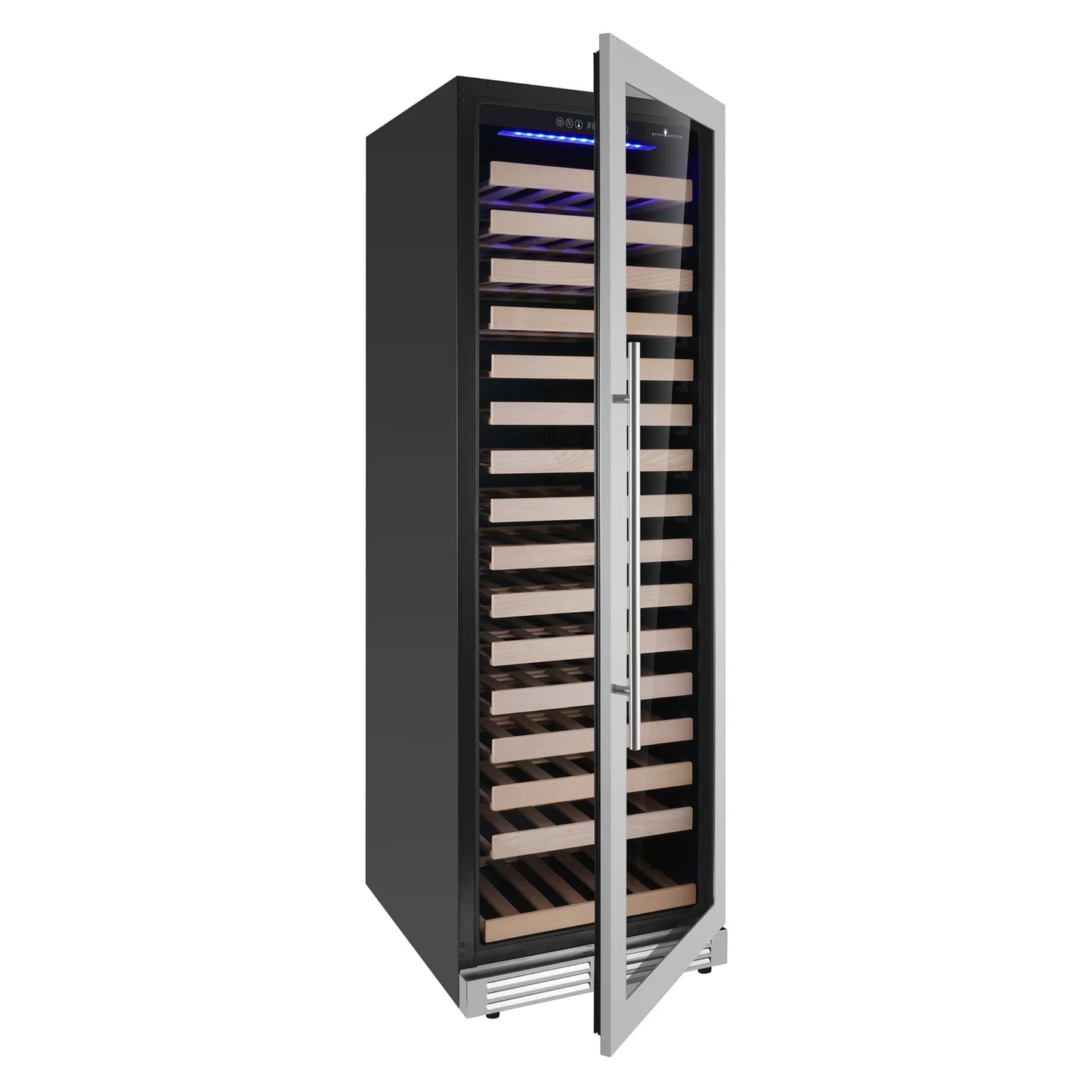

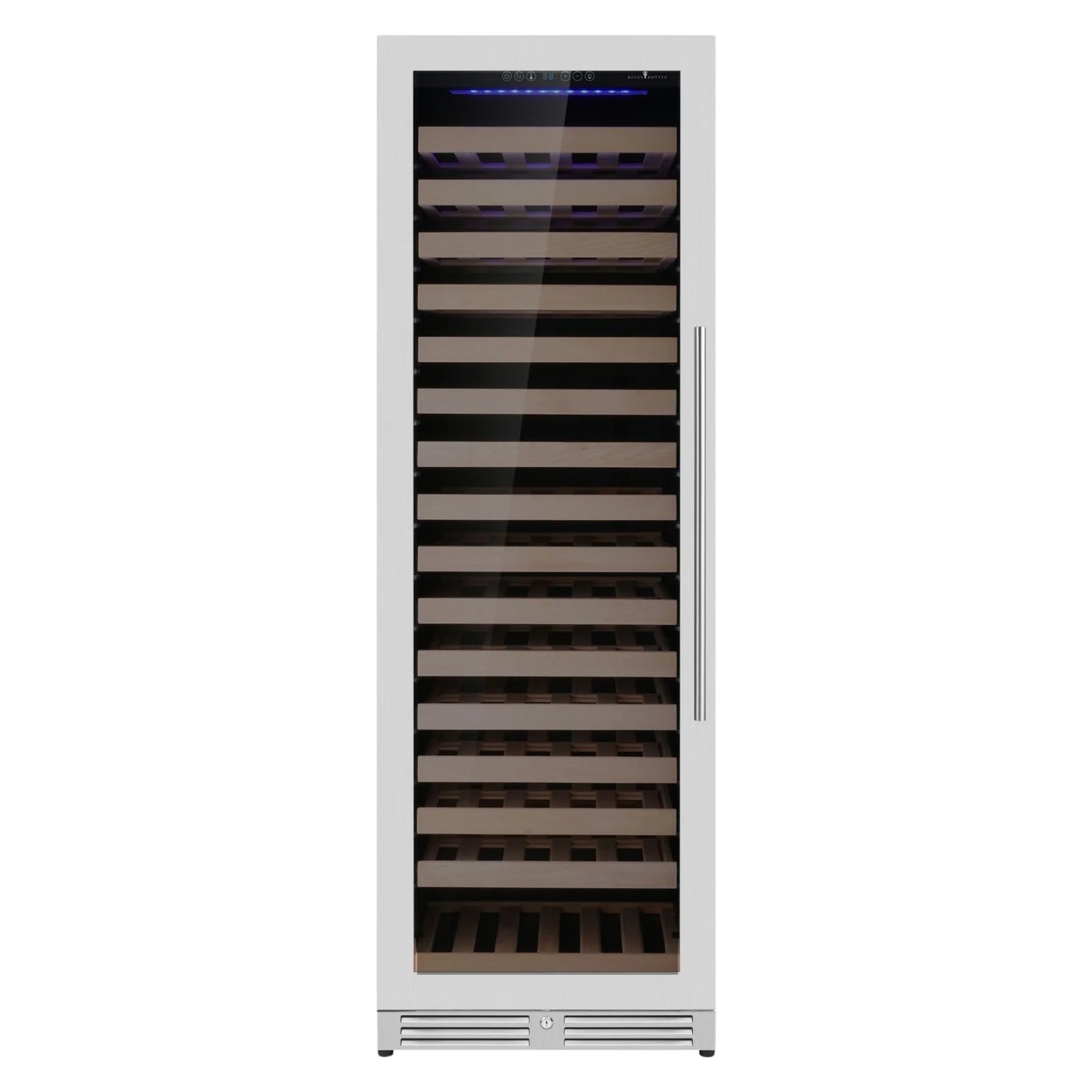

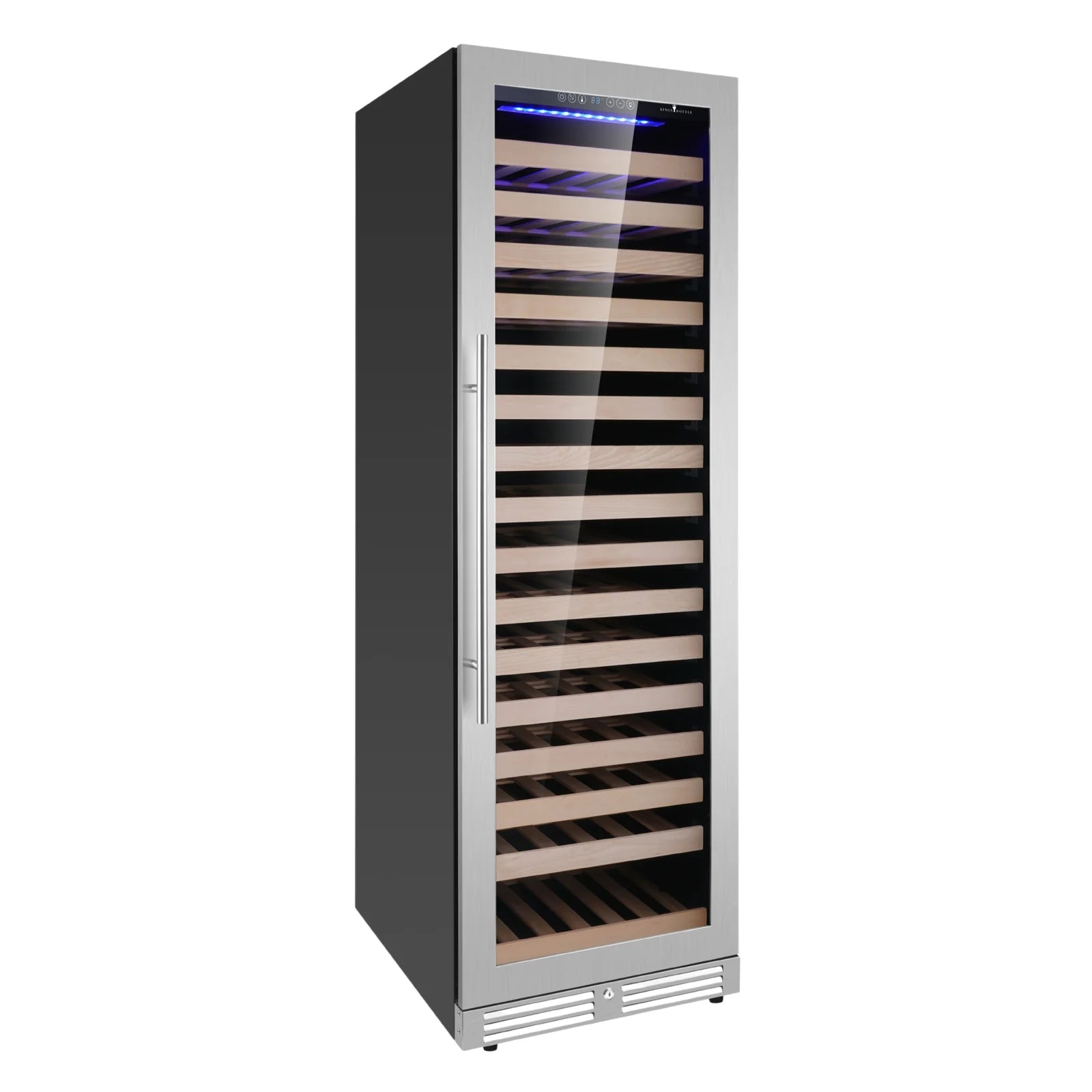

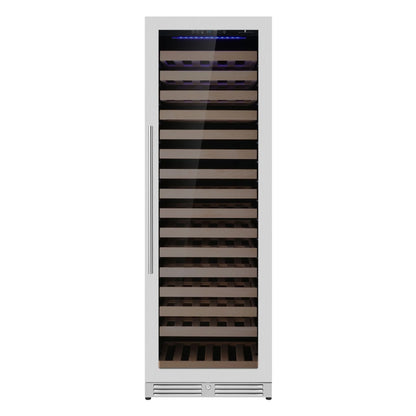

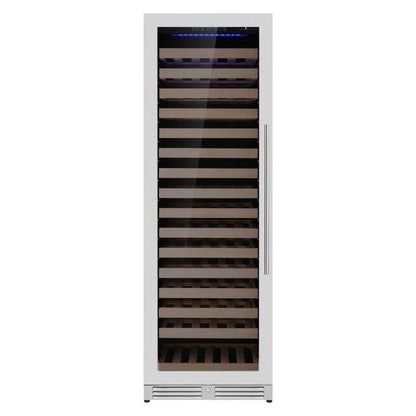

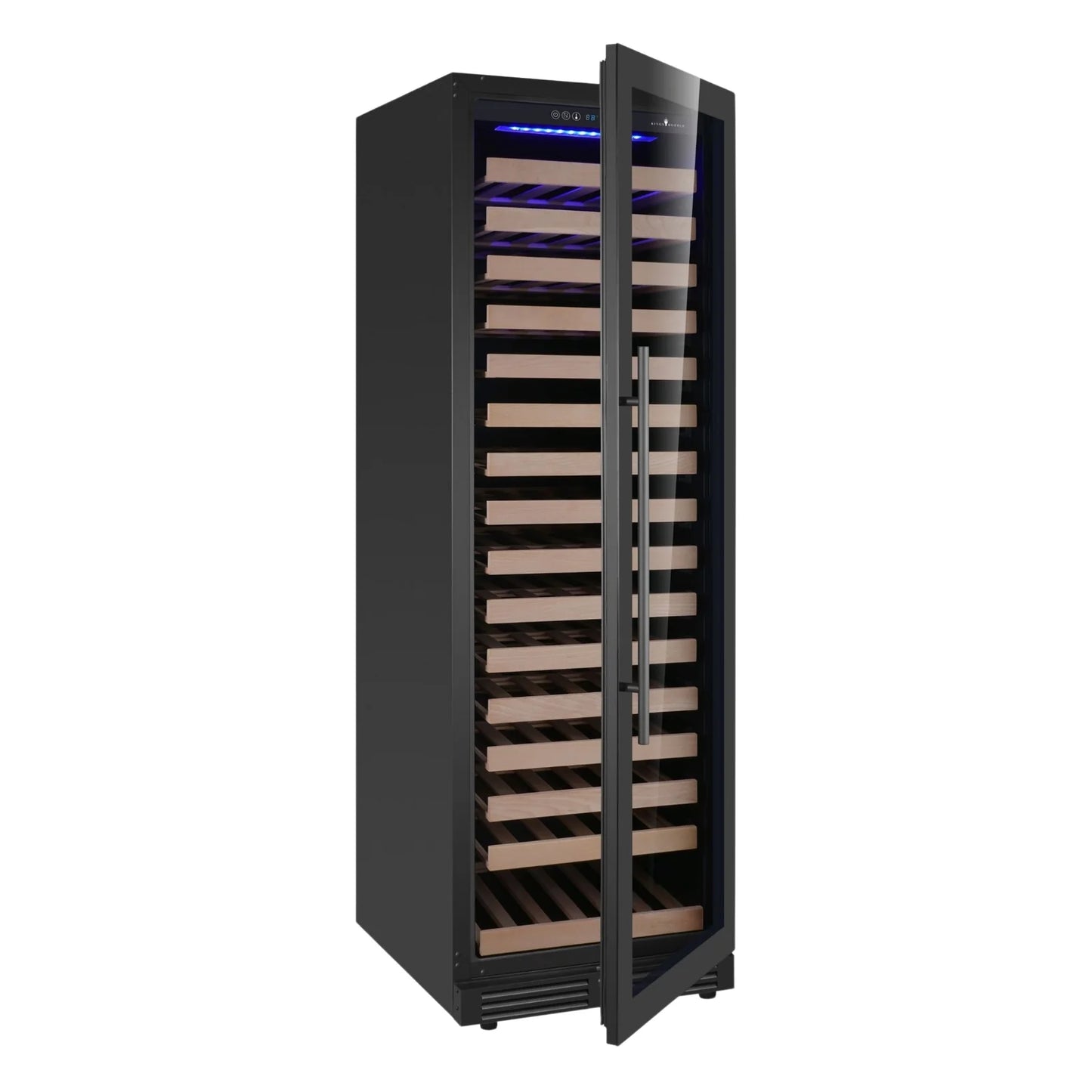

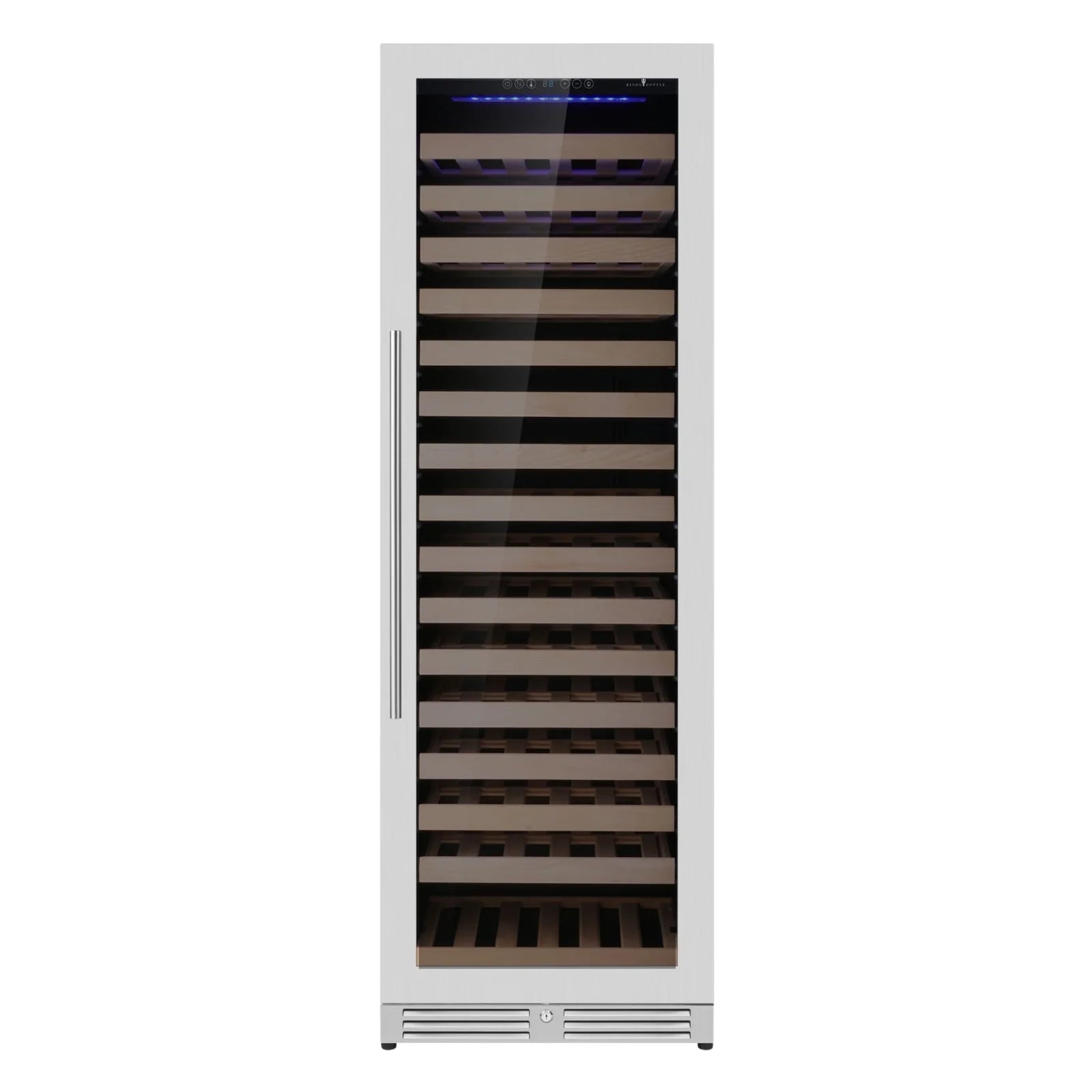

Upright Single-Zone Large Wine Cooler (Low-E Glass Door)
Premium Wine Storage, Simplified
The Upright Single-Zone Large Wine Cooler with Low-E Glass Door is built for wine enthusiasts who want spacious storage and reliable performance without compromising on style.
Powered by the Embraco Inverter Compressor, this cooler delivers ultra-quiet, energy-efficient operation, reducing energy consumption by up to 40% while maintaining precise, consistent cooling.
The Low-E Glass Door not only enhances the sleek, modern look but also shields your collection from harmful UV rays and minimizes condensation, ensuring every bottle is preserved in peak condition.

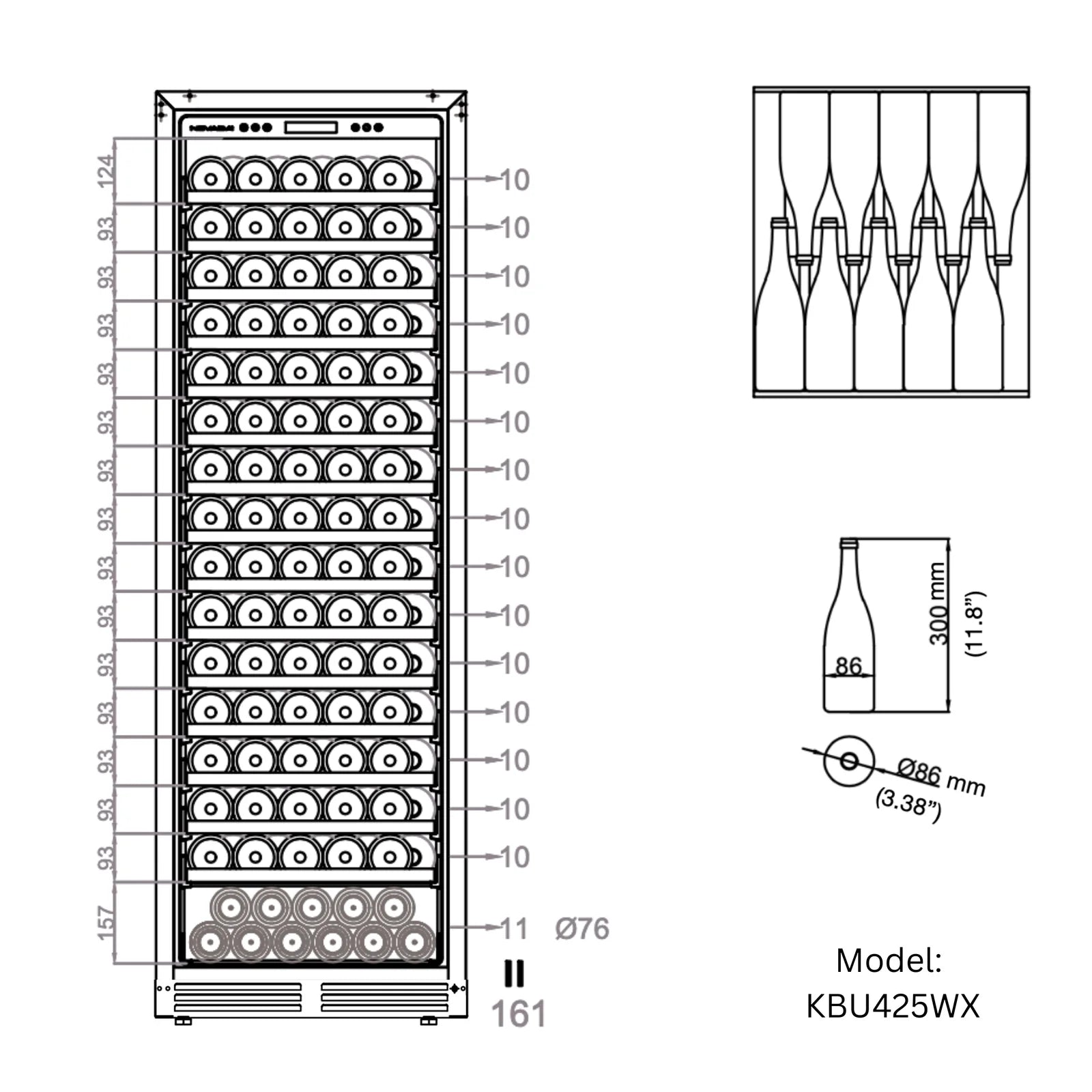

With a 161-bottle capacity and adjustable beech wood shelving, this cooler accommodates both standard and larger-format bottles. Whether in a home bar, kitchen, or commercial space, it combines elegance with functionality.
Key Features
-
Single-Zone Cooling: One consistent temperature for your entire collection, adjustable from 35°F to 68°F (2°C to 20°C).
-
Embraco Inverter Compressor: Whisper-quiet performance with up to 40% less energy use.
-
Low-E Glass Door: Blocks UV rays and reduces condensation for optimal storage conditions.
-
Fan-Circulated Air Cooling: Maintains even temperature and humidity throughout the cabinet.
-
Activated Carbon Filter: Keeps the air inside fresh and odor-free.
-

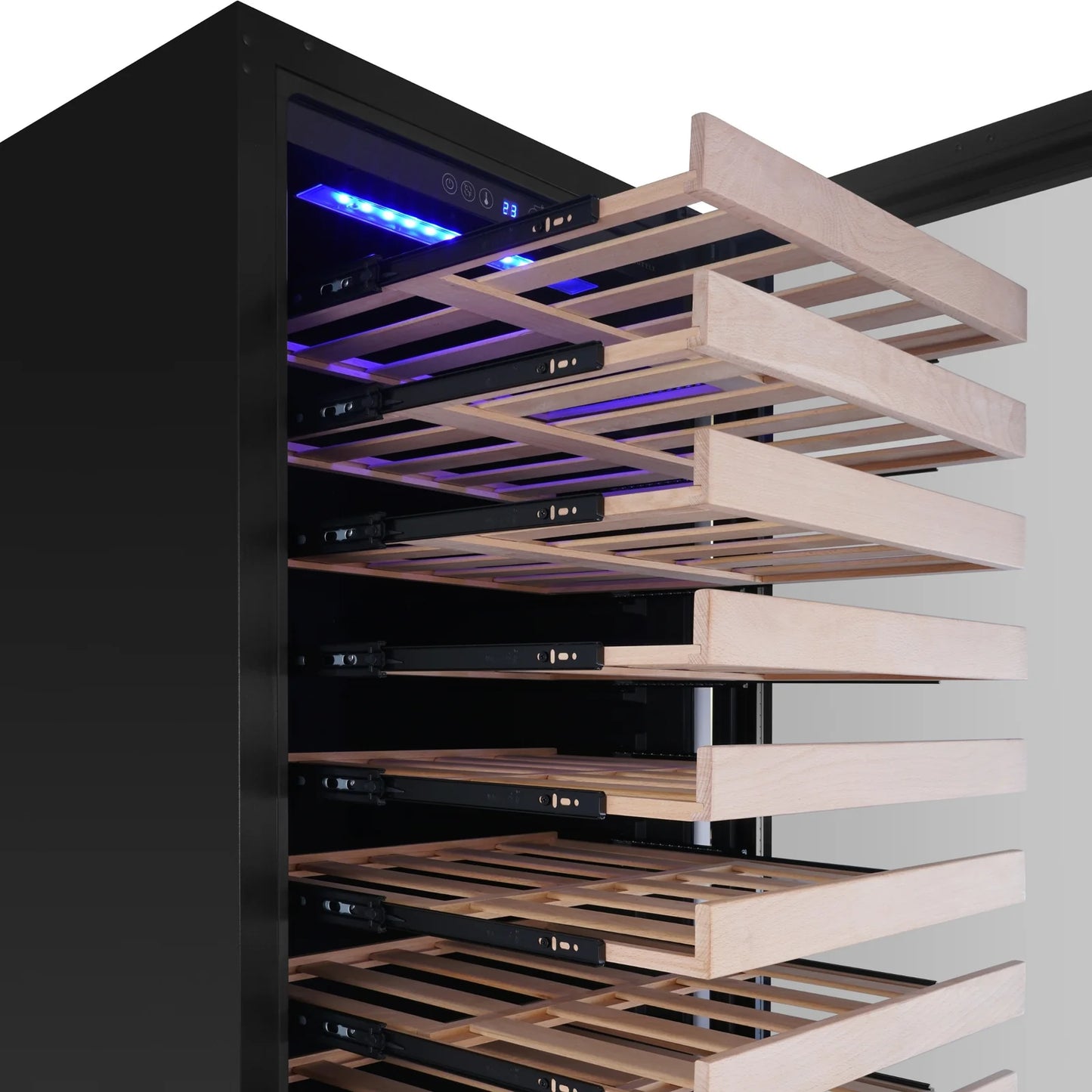

Full-Extension Beechwood Shelves: Smooth-glide design fits both standard and large bottles (up to 3.39" diameter).
-

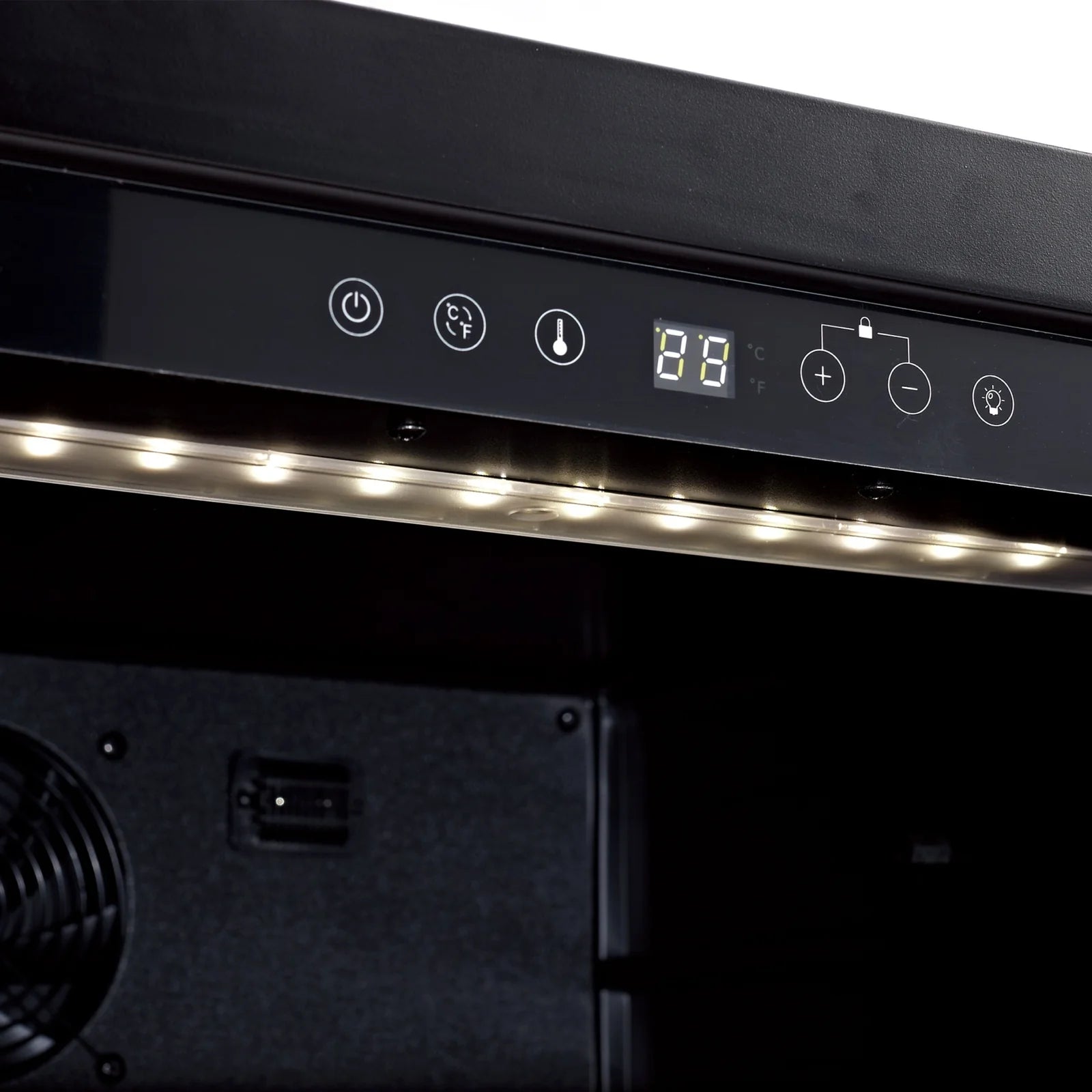

LED Digital Touch Controls: Easy-to-use panel with accurate settings.
-

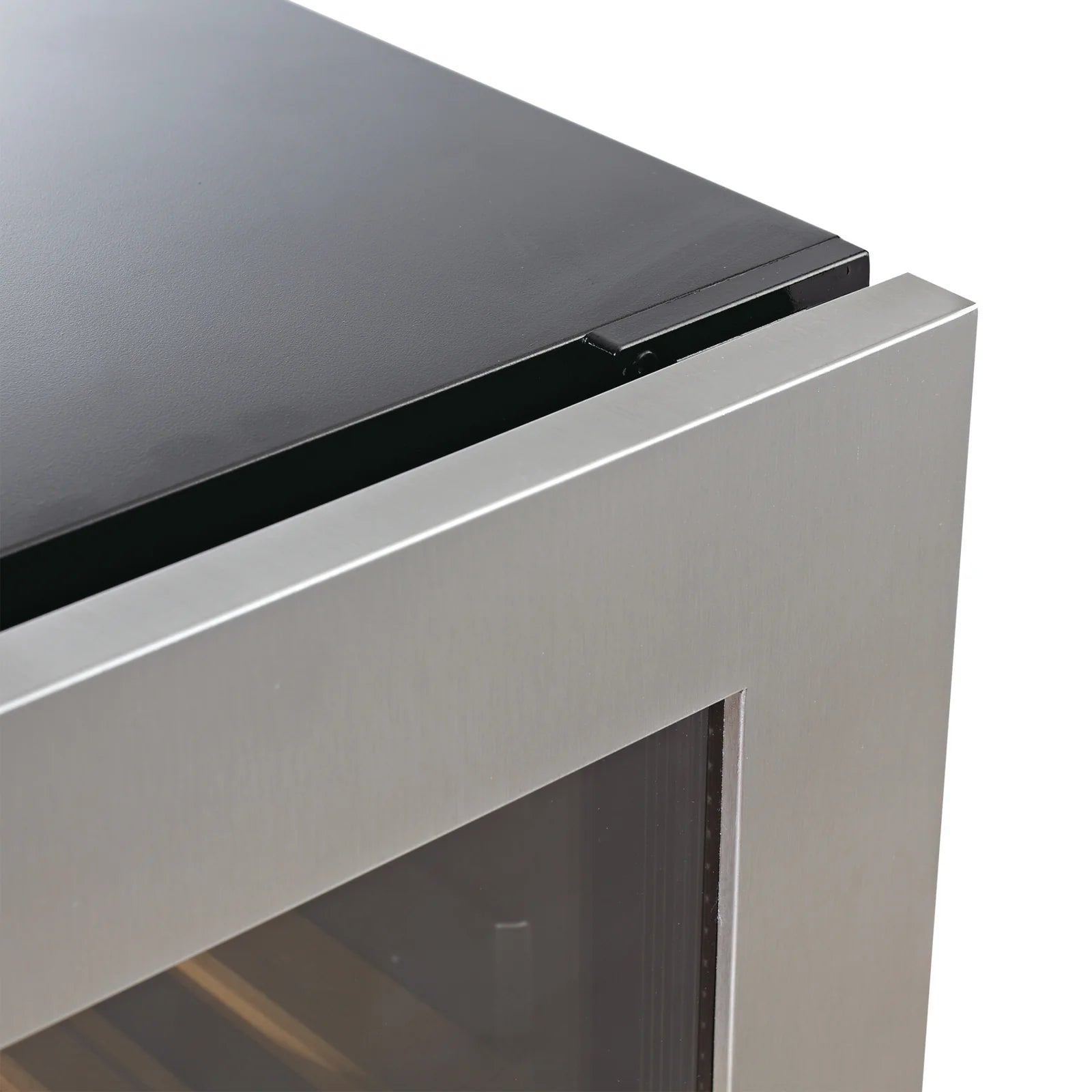

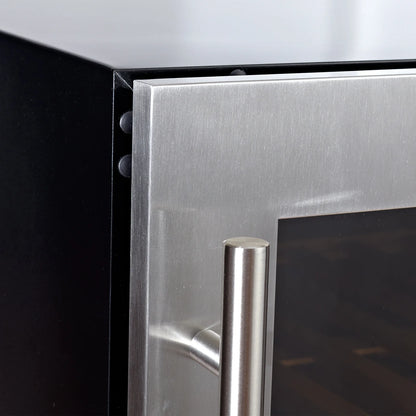

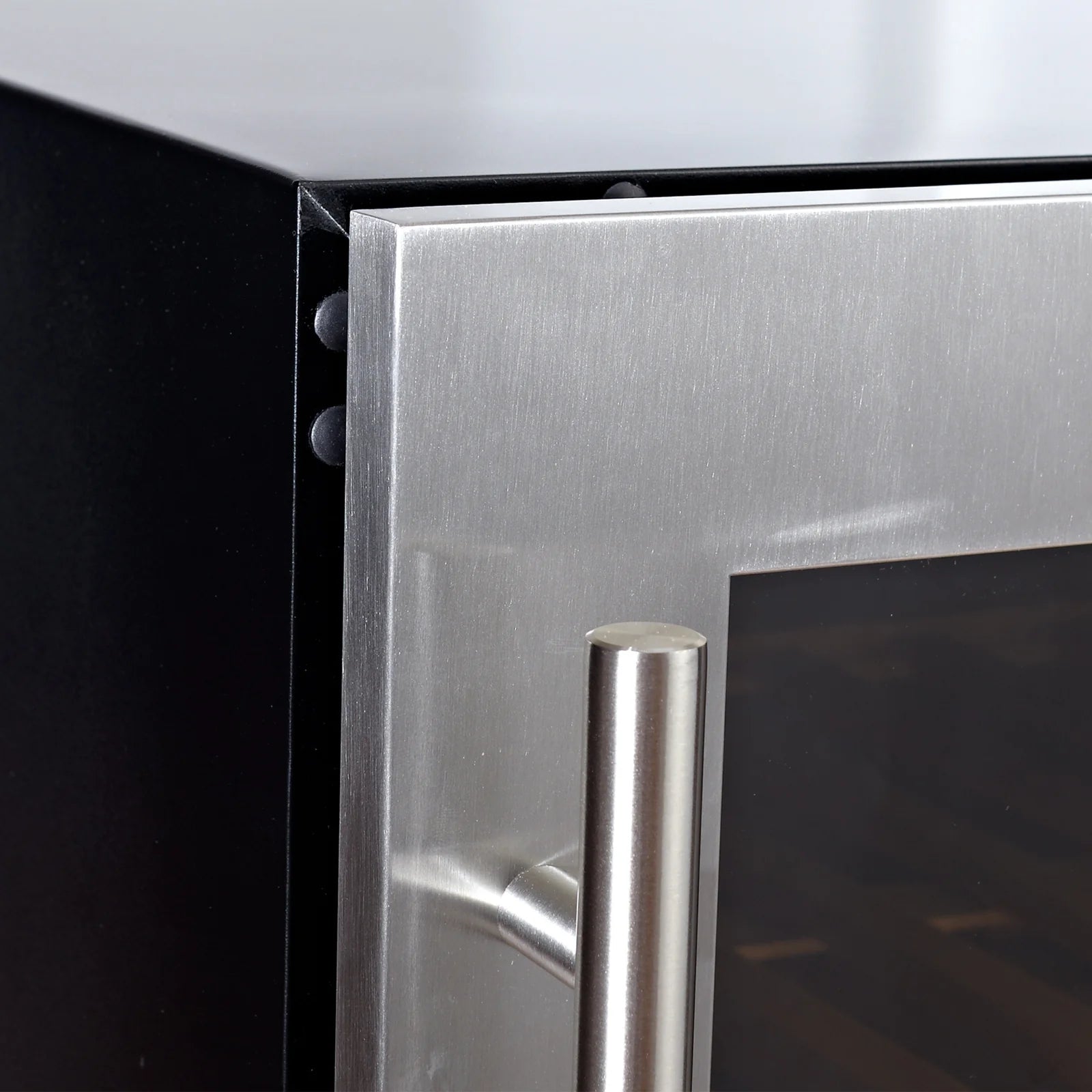

Hidden Door Hinge: Seamless built-in look with modern stainless steel frame.
-
Door Alarm: 2-minute magnetic switch alarm prevents accidental warming.
-
Enhanced Insulation: 45mm thick C-Pantane foam improves efficiency and reduces energy use.
Specifications
General
-
Volume: 15.00 CF (425 Liters)
-
Capacity: 161 Bottles
-
Installation Type: Built-In or Freestanding
-
Climate Type: N
-
Zones: Single Zone
-
Adjustable Temperature Range: 35°F – 68°F (2°C – 20°C)
-
Operating Room Temp: 32°F – 100°F (0°C – 38°C)
-
Shelf Configuration: 16 Beech Wooden Shelves
-
Dimensions: 23.42”W × 27.36”D × 70.86”H (stand height included 0.59”)
Electrical & Cooling
-
Compressor: Embraco Inverter Compressor
-
Defrost Type: Automatic
-
Power Supply: 110–115V / 60Hz
-
Rated Power: 165W
-
Rated Current: 1.7A
-
Refrigerant: R600A / 52g
-
Energy Consumption: 0.63 kWh/24h
Dimensions & Diagrams
Technical Dimensions
Installation Diagrams
