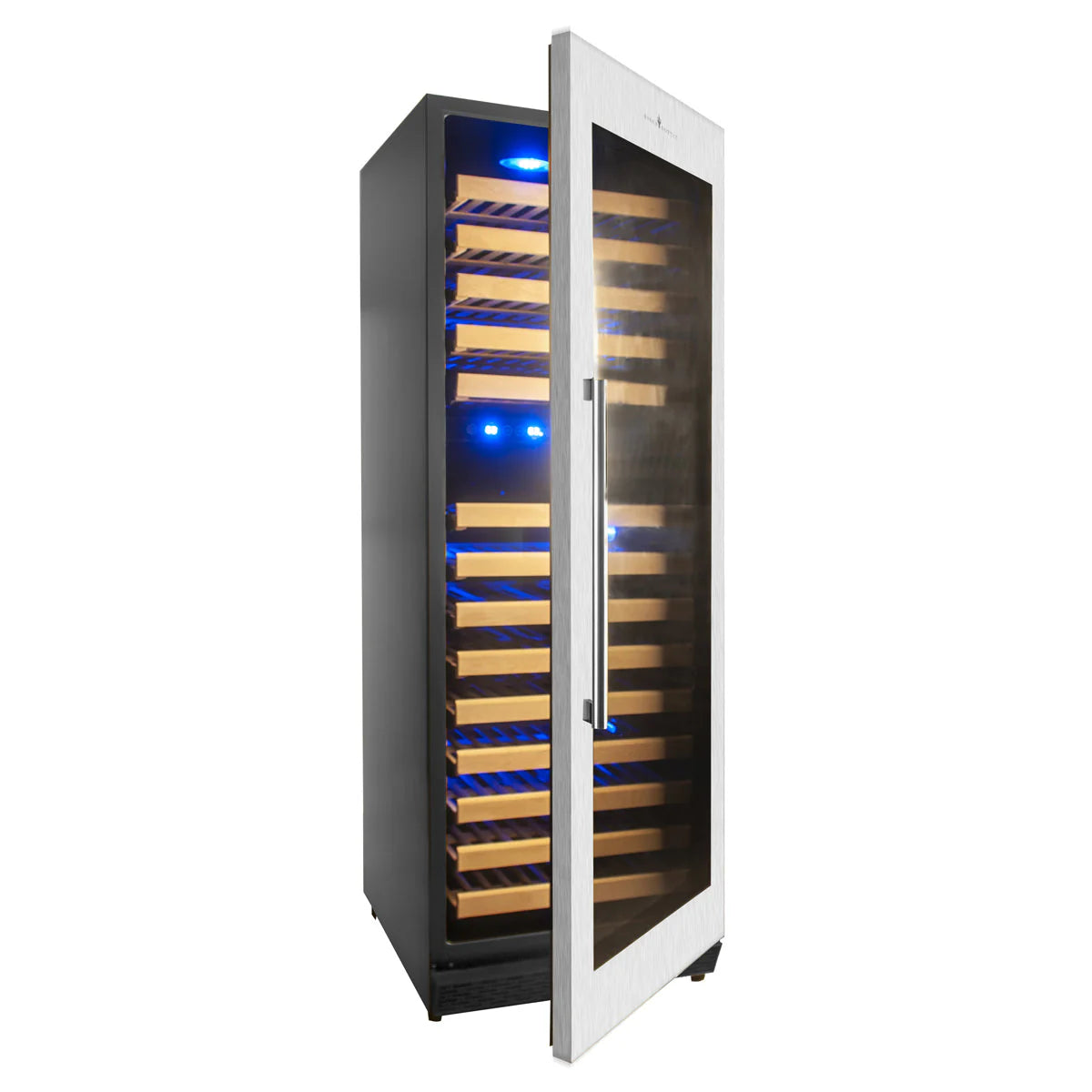

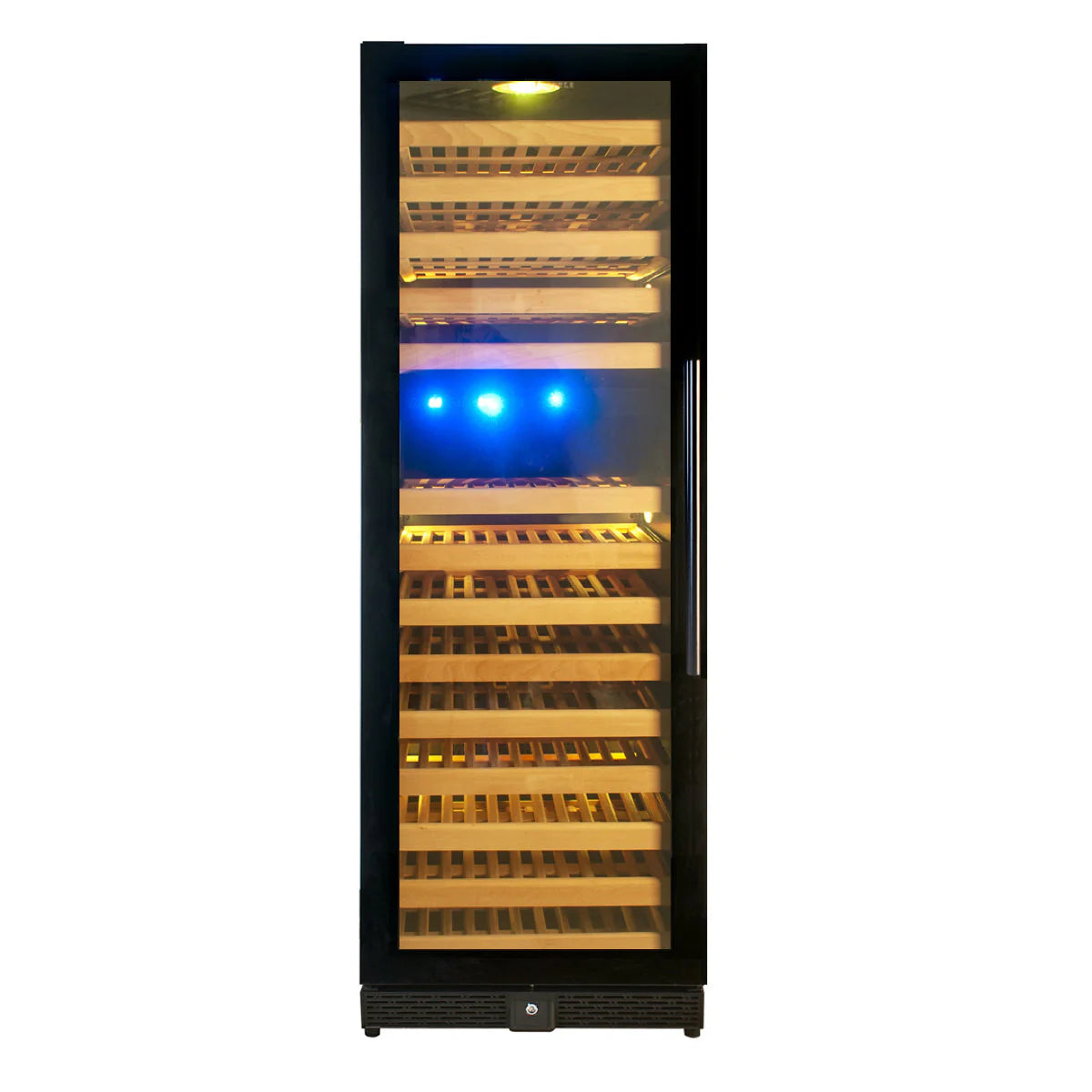

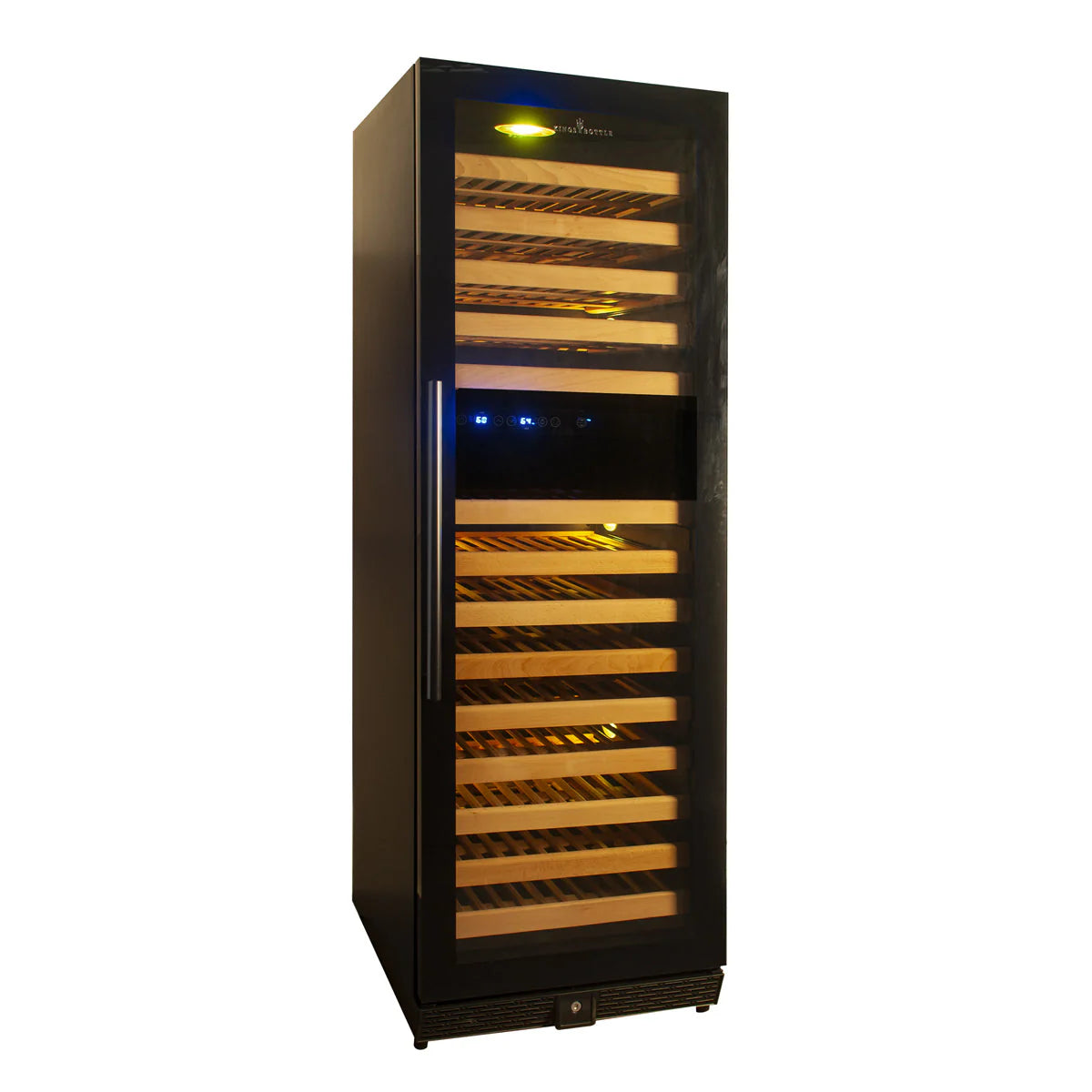

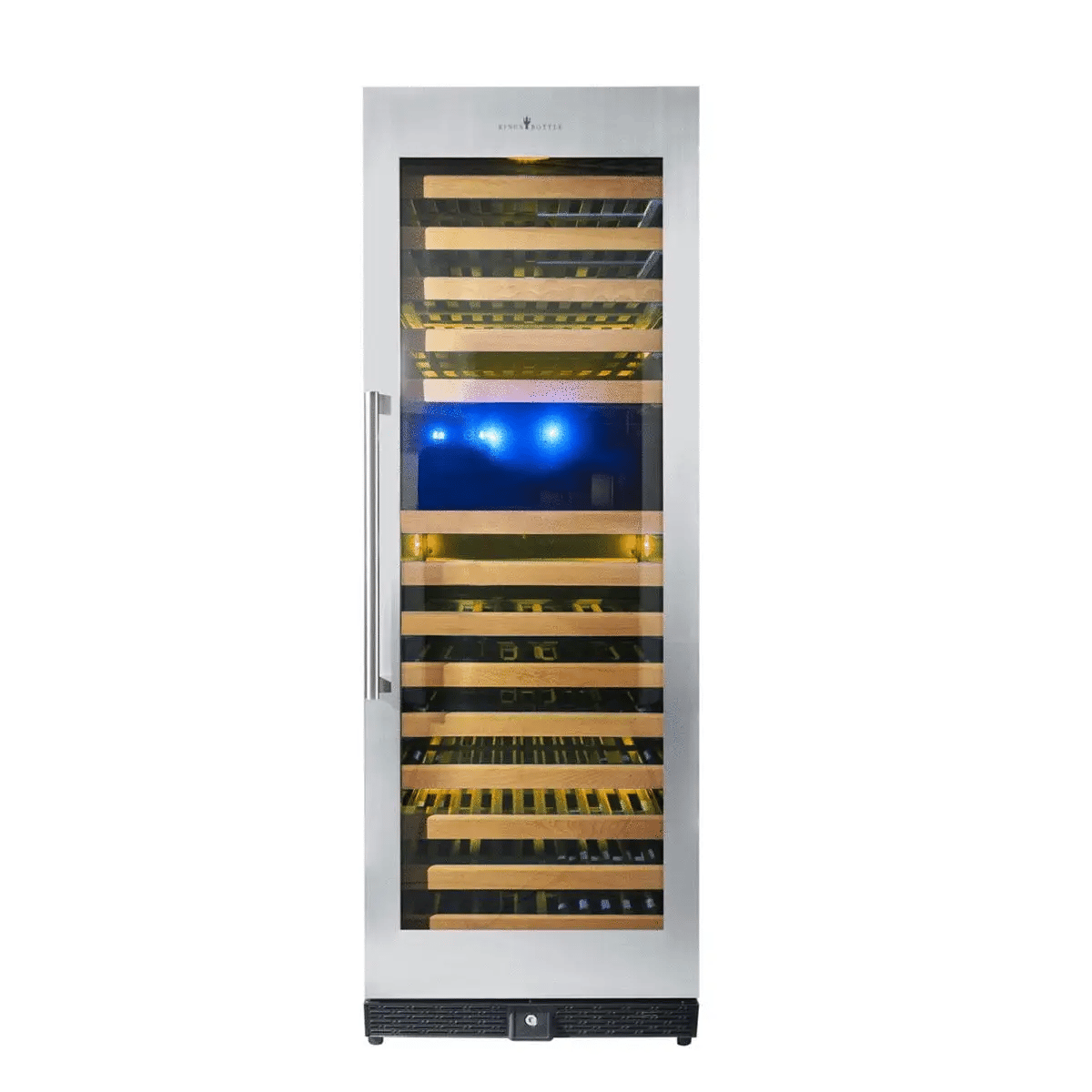

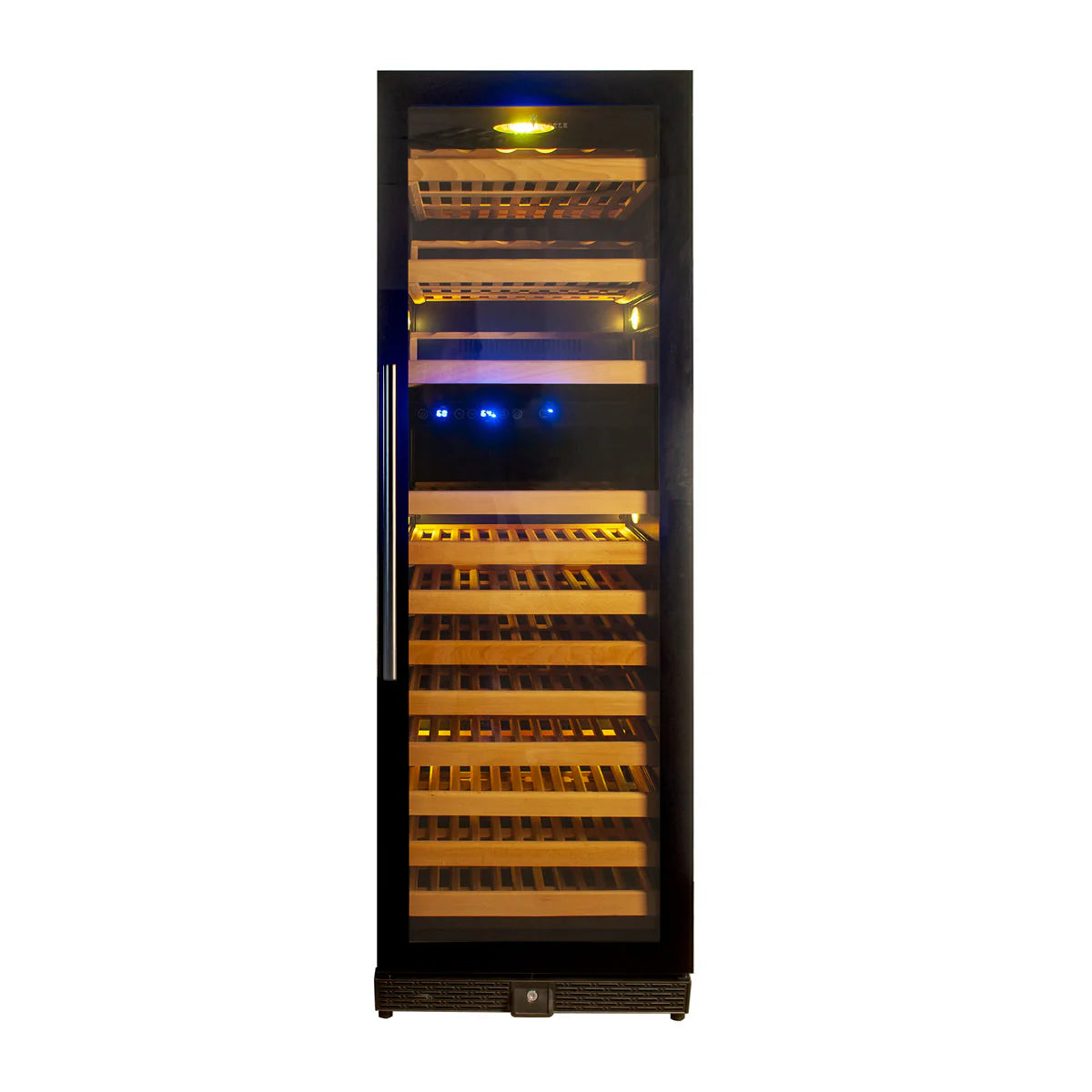

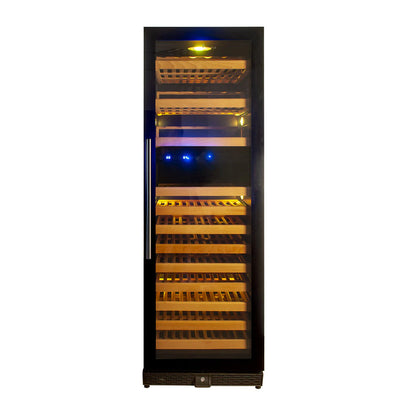

Tall Large Dual-Zone Wine Refrigerator
Premium wine storage for collectors or commercial use. Spacious capacity, sleek stainless steel trim, and advanced cooling technology keep your wine collection safe and perfectly chilled.
Key Features
Dual-Zone Temperature Control
-
Upper Zone: 35°F – 54°F (2°C – 12°C)
-
Lower Zone: 54°F – 68°F (12°C – 20°C)
Ultra-Quiet Inverter Compressor
-
Reduces energy use by 40% and ensures silent operation.
Low-E Glass Door
-
Blocks UV rays, reduces condensation, and improves insulation.
Fan-Circulated Air System
-
Maintains even temperature and balanced humidity throughout the cabinet.
Activated Carbon Filter
-
Keeps air fresh and odor-free inside the cabinet.

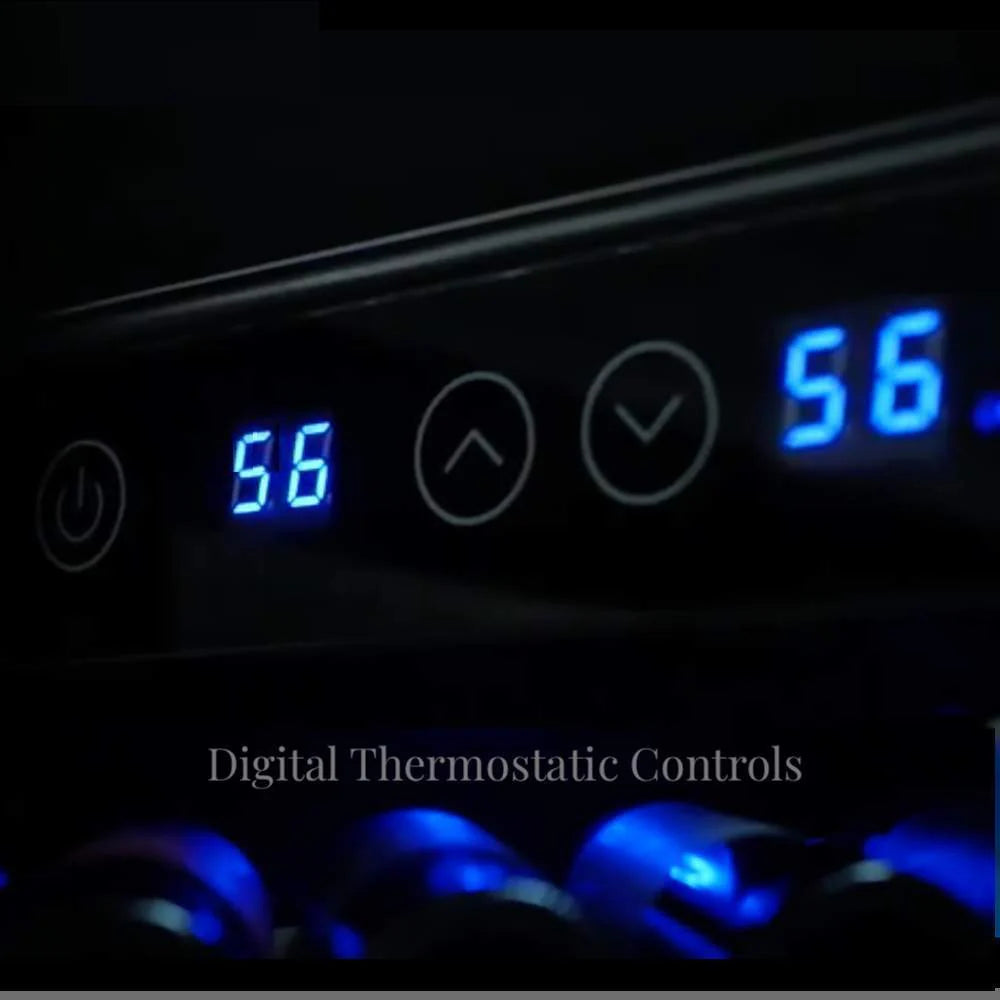

LED Display & Digital Touchpad
-
Simple, easy-to-use controls with precise temperature display.

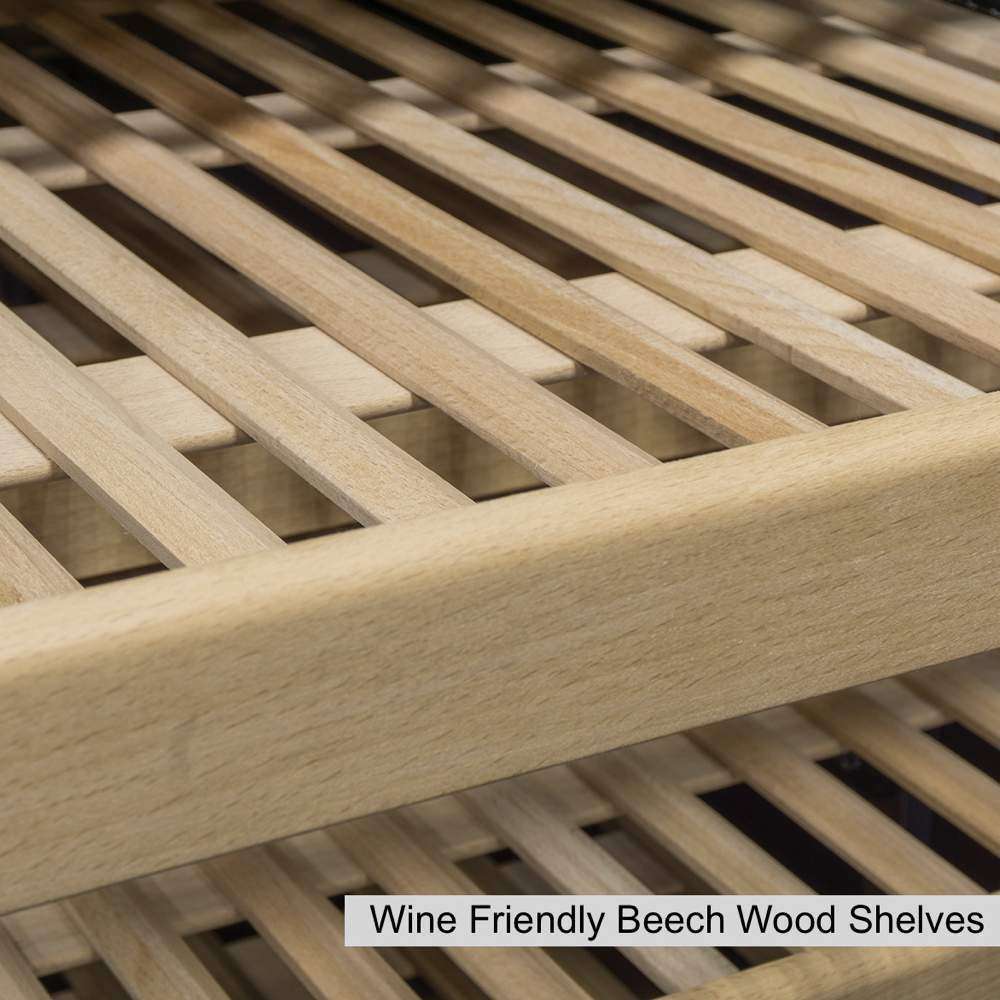

Premium Beechwood Shelves
-
15 full-extension pull-out shelves
-
Designed to hold regular and larger bottles (up to 3.39” / 86mm diameter)
-
Adjustable spacing for flexible storage
Energy-Efficient Build
-
45mm C-Pantane foam insulation enhances cooling performance and reduces energy consumption.

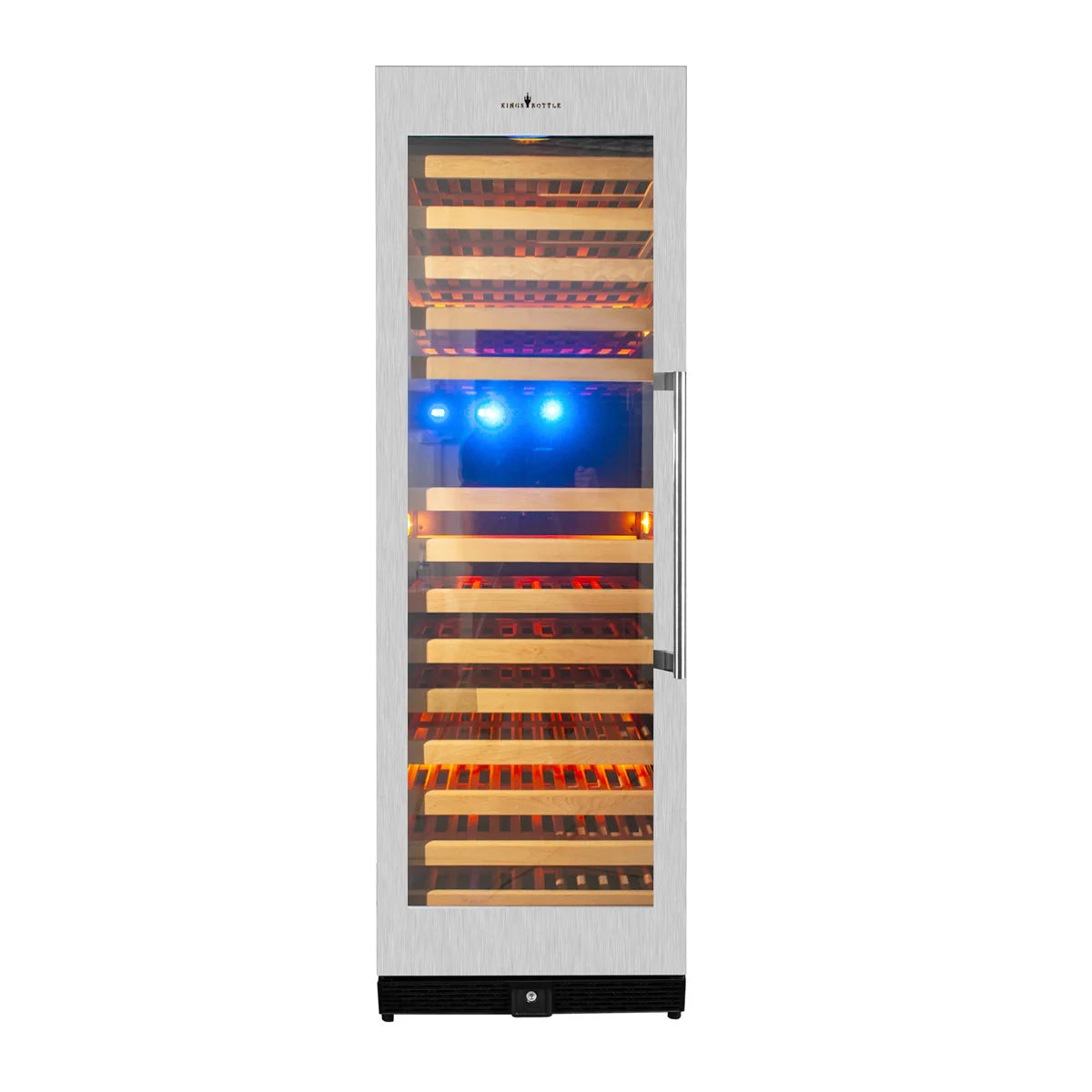

Sleek Stainless Steel Trim
-
Modern, built-in design perfect for home or commercial spaces.
Specifications
-
Volume: 14.3 CF (405L)
-
Capacity: 164 bottles
-

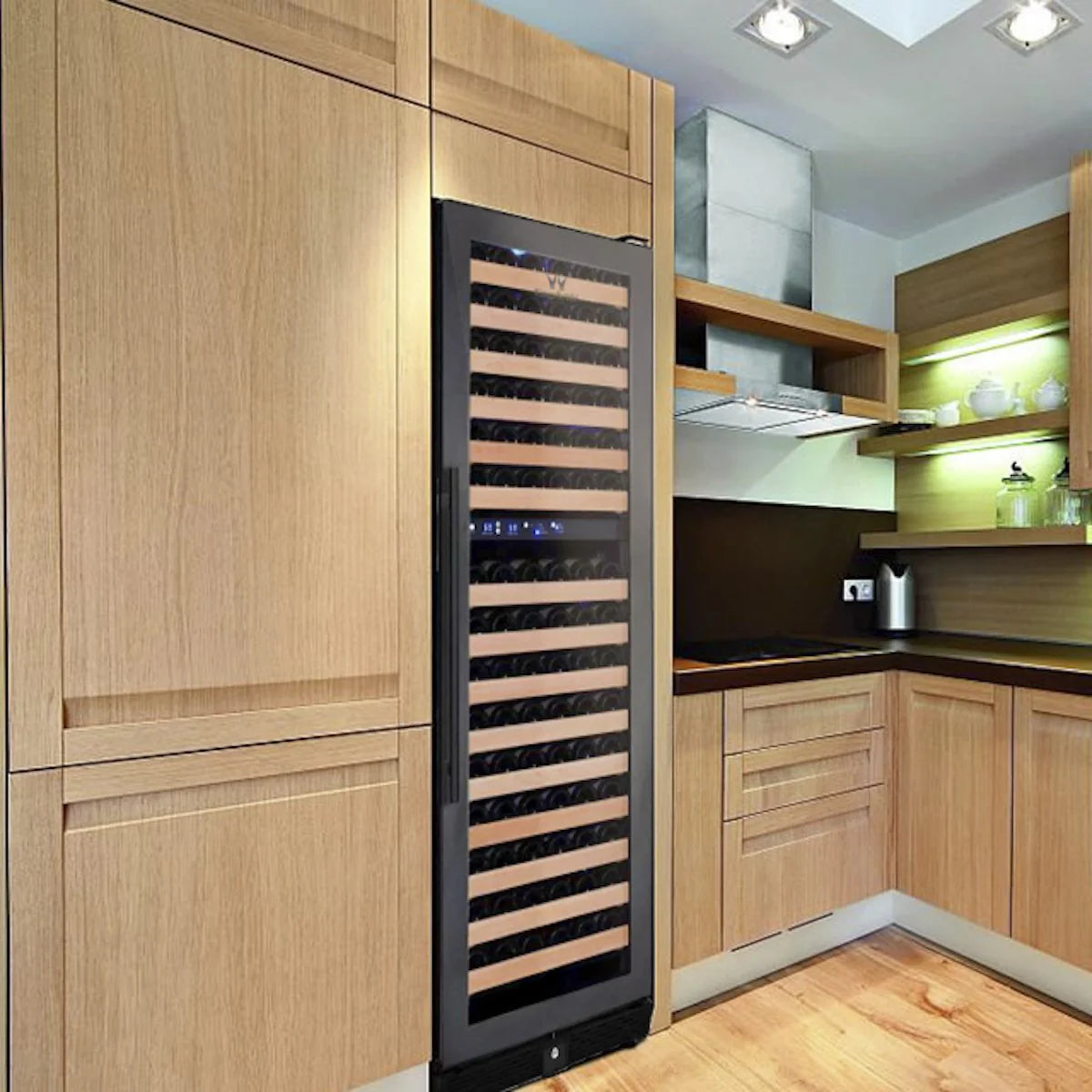

Installation: Built-in or freestanding
-
Operating Room Temp: 32°F – 100°F (0°C – 38°C)
-
Shelves: 15 beechwood pull-out shelves
-
Dimensions: 23.54”W x 26.97”D x 71.69”H (stand height: 0.98”)
-
Electrical: 110–115V / 60Hz, 80W, 1.1A, R600A refrigerant
-
Energy Consumption: 0.985 kWh/D (360 kWh/year)
-
Certifications: CEC / DOE
Dimensions & Diagrams
Technical Dimensions
Installation Diagrams
