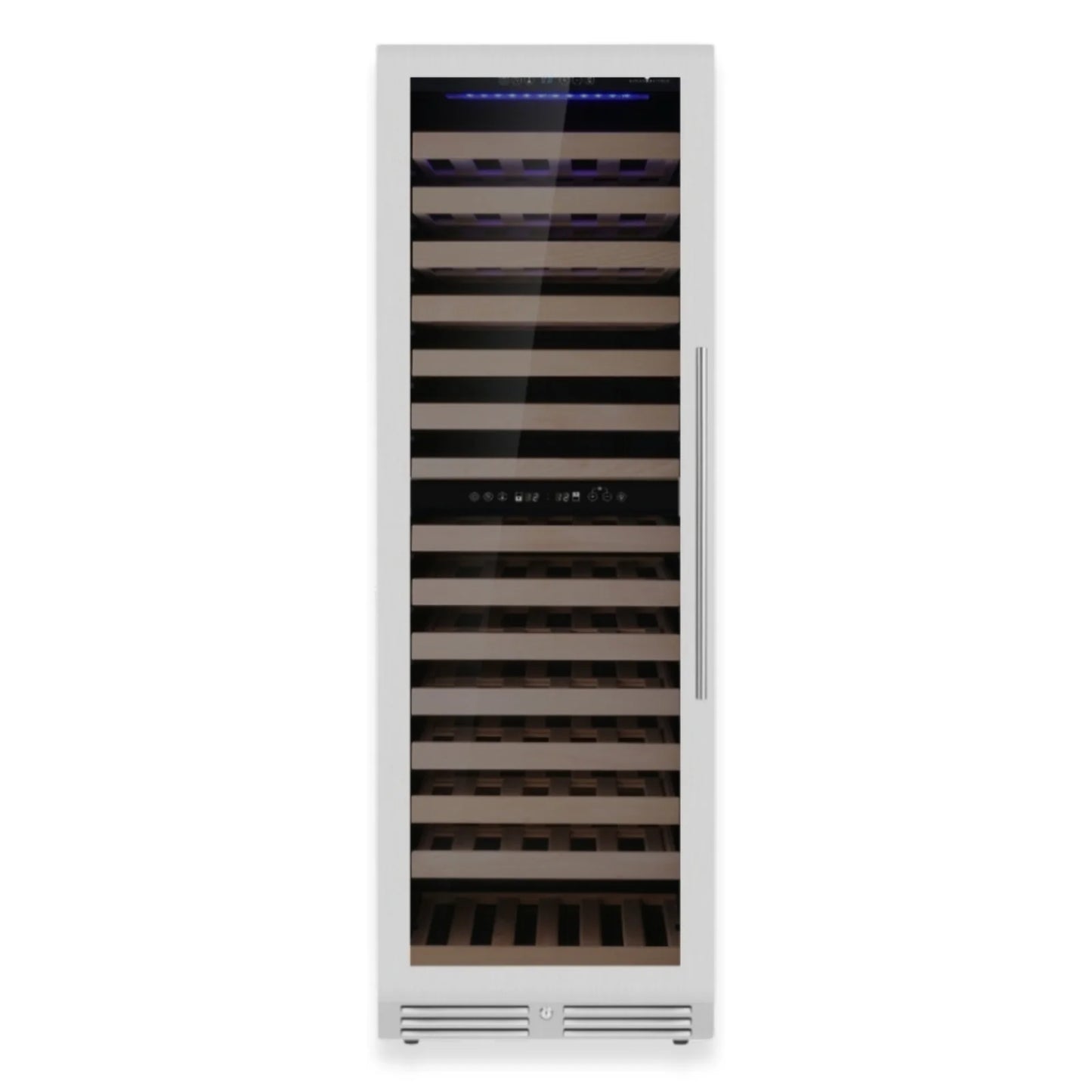

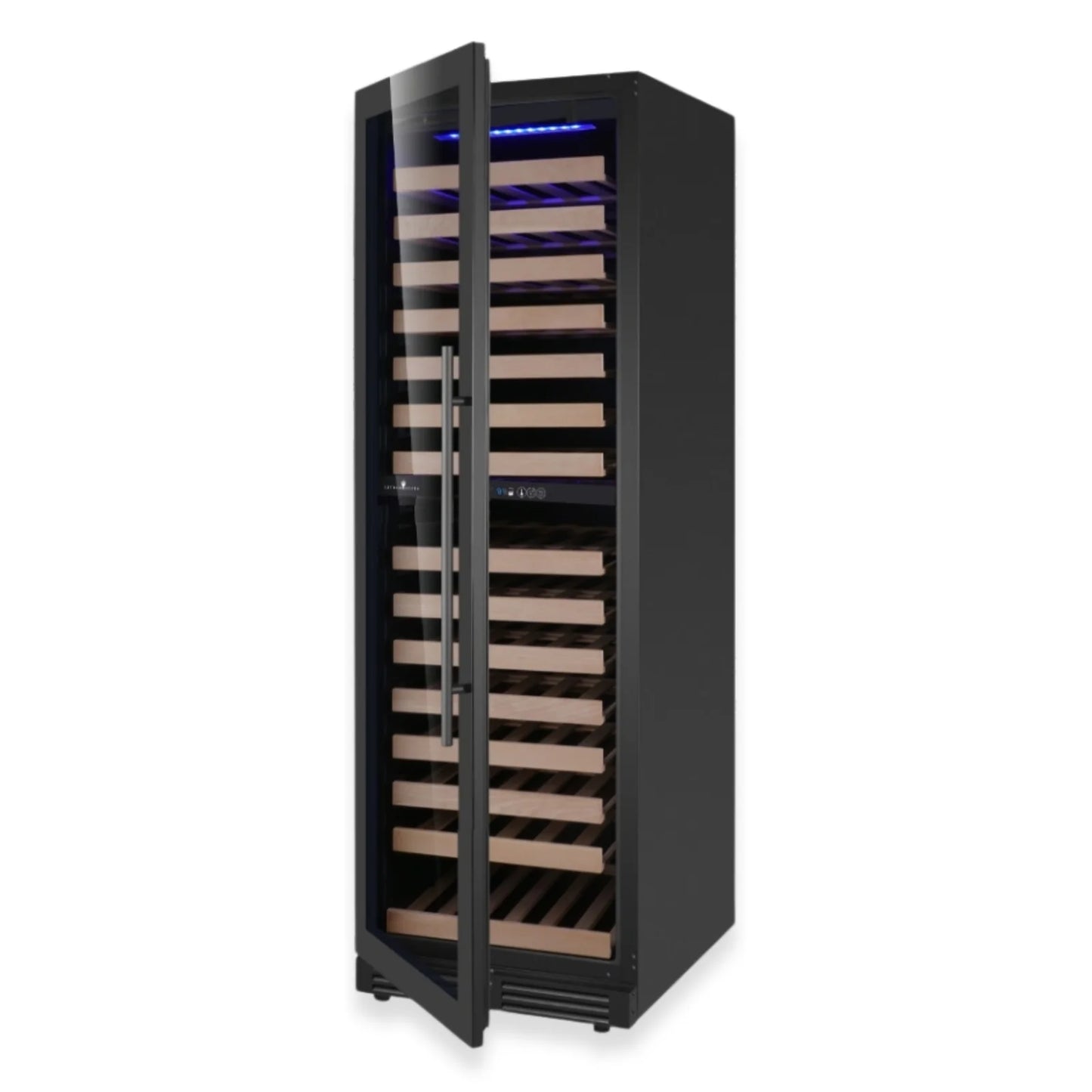

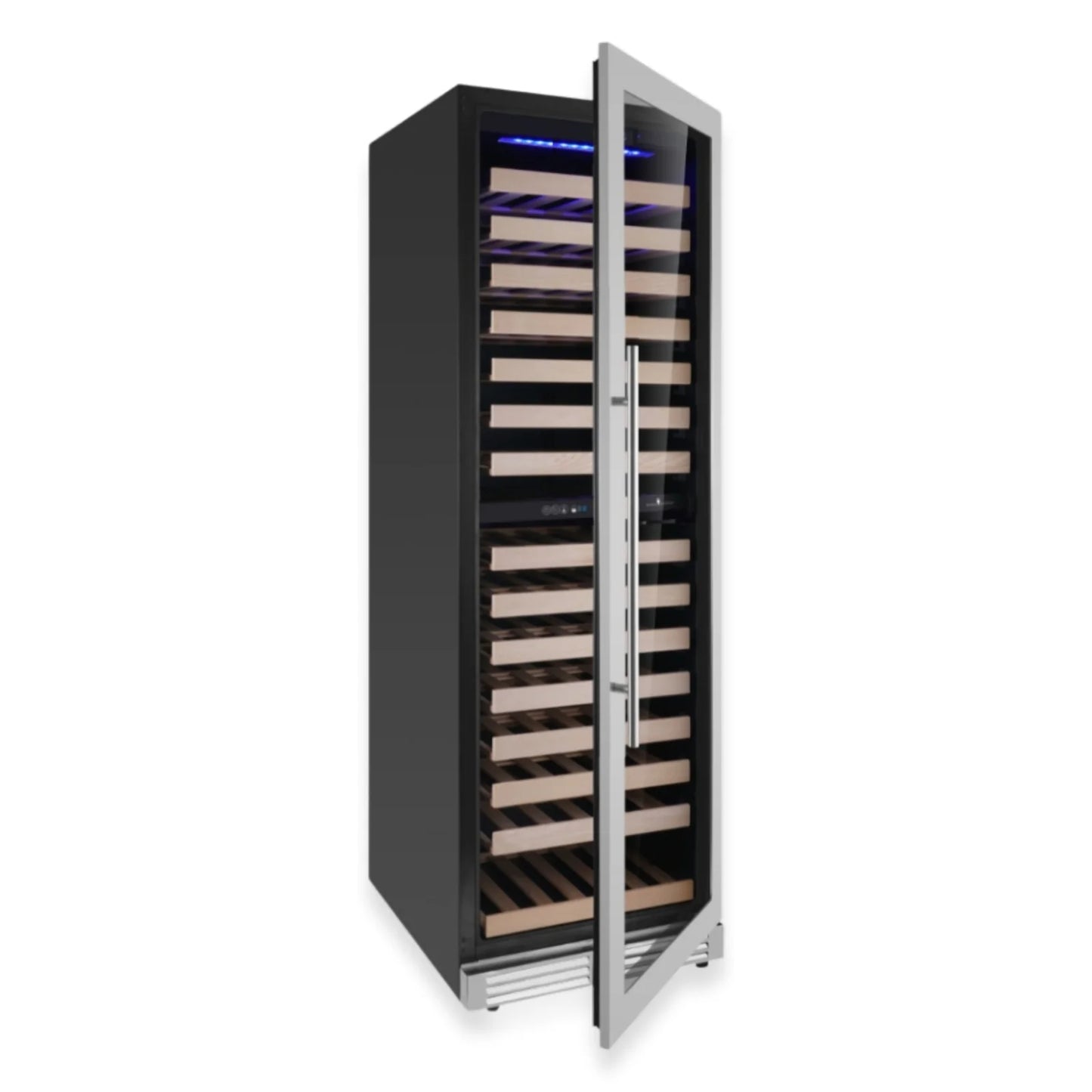

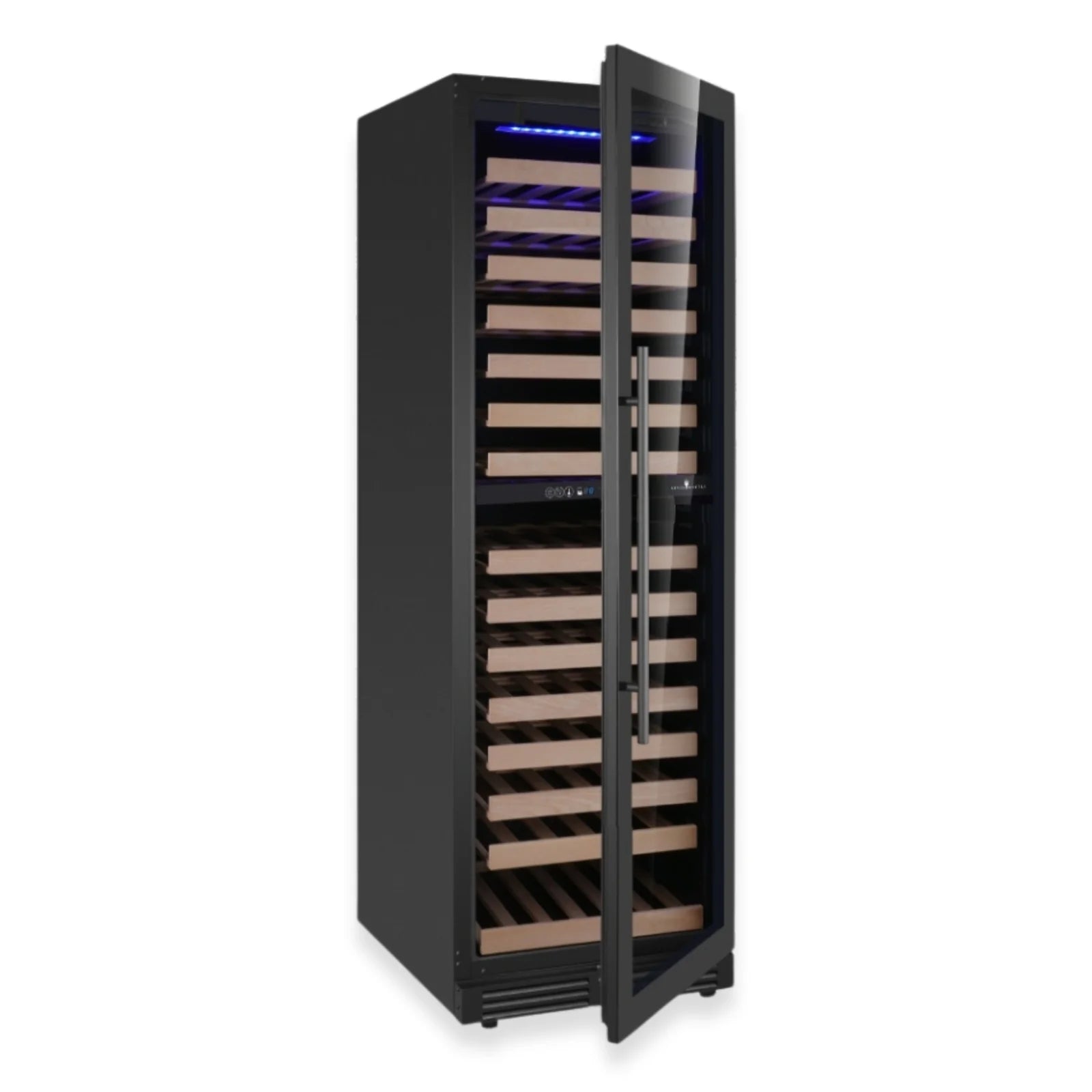

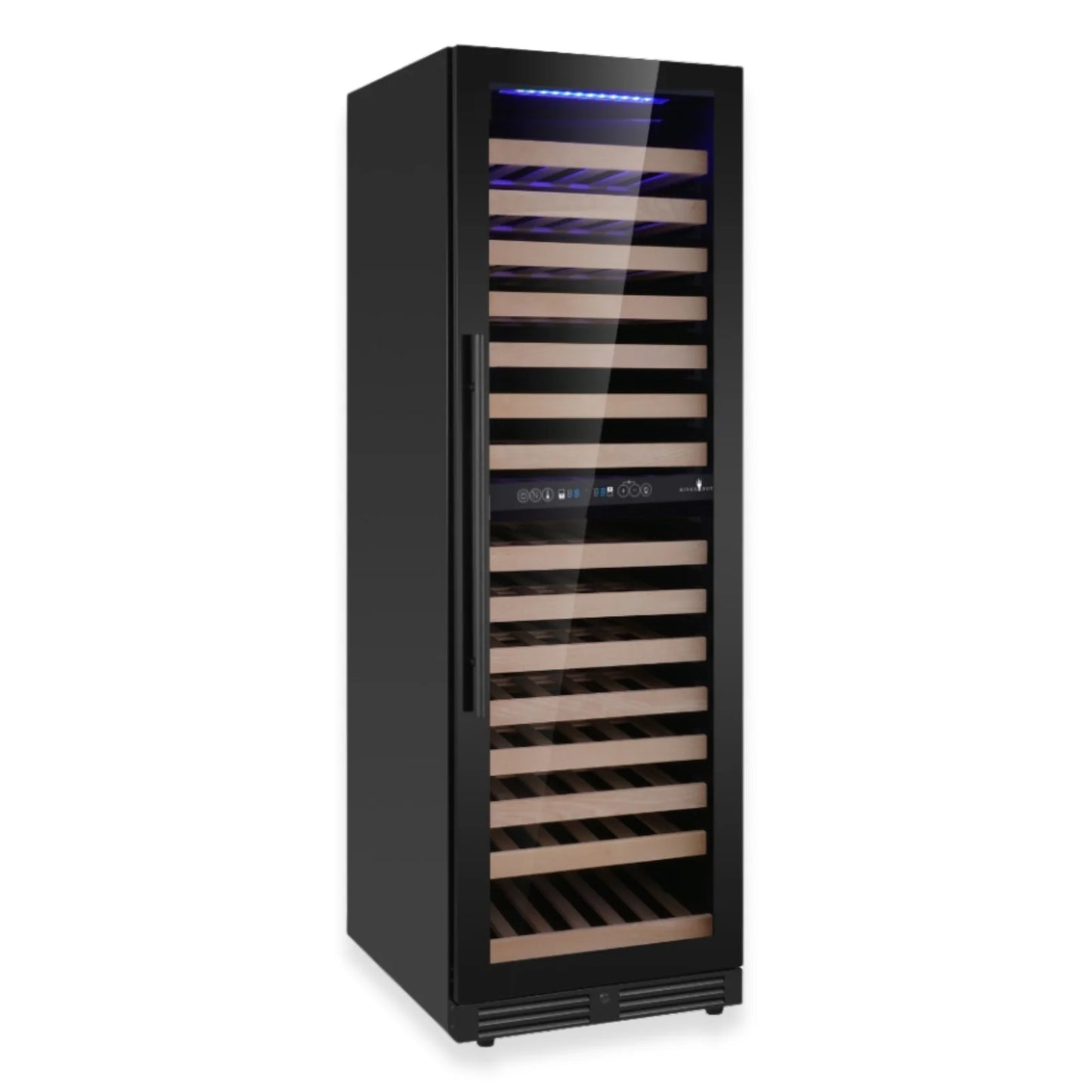

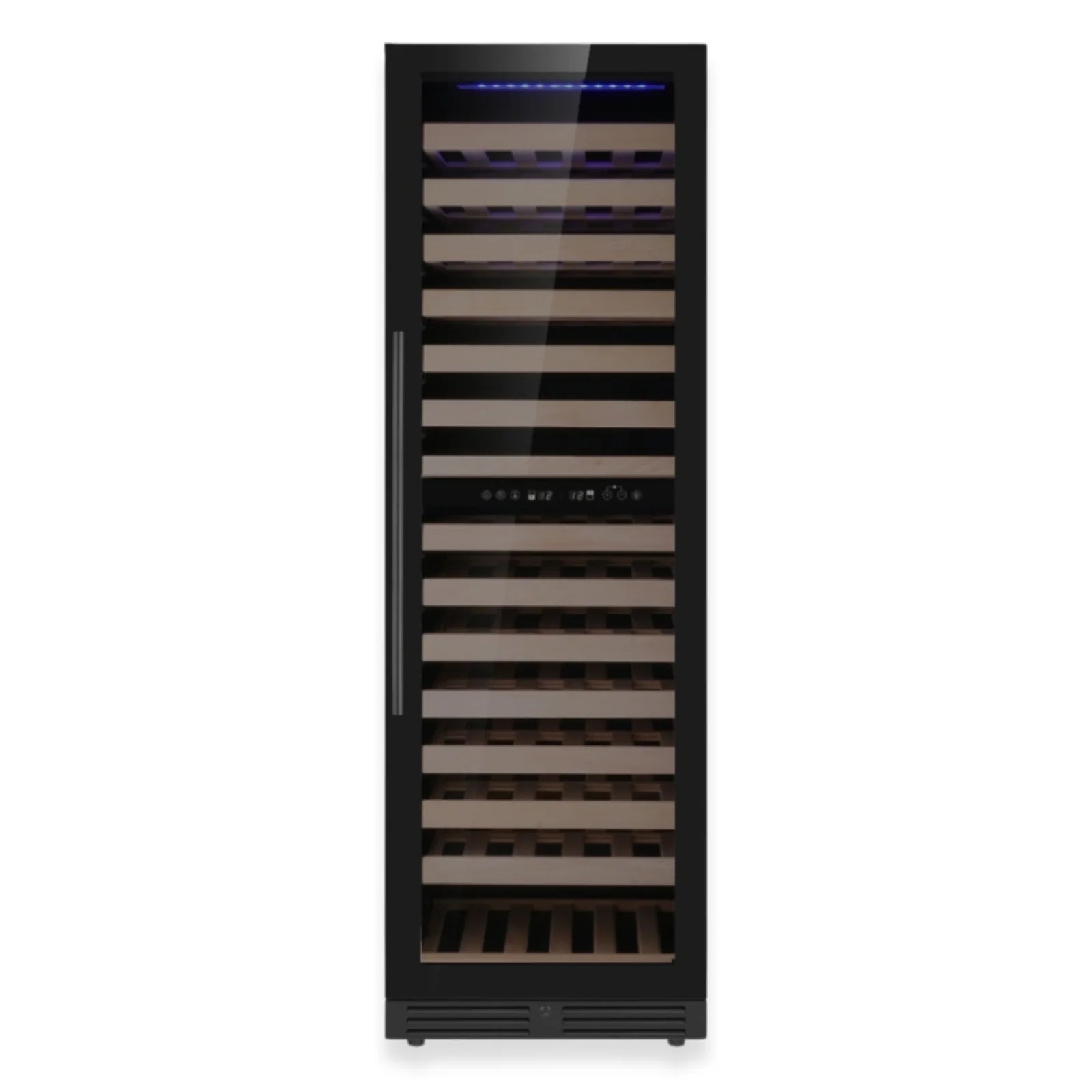

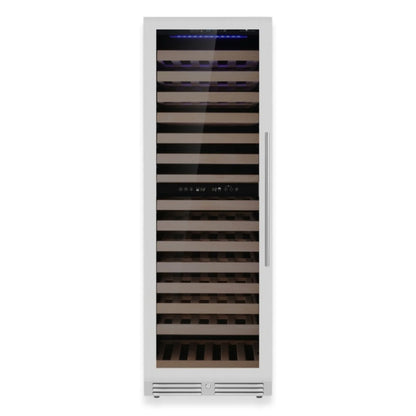

Upright Dual-Zone Large Wine Cooler
The 70-Inch Dual-Zone Upright Wine Cooler offers the perfect balance of capacity, performance, and style. Designed for serious collectors and modern spaces, it preserves up to 159 bottles with precise, energy-efficient cooling.
Powered by the whisper-quiet Embraco Inverter Compressor, it reduces energy use by up to 40% while ensuring stable, reliable performance. Dual temperature zones allow you to store reds and whites at their ideal serving conditions, while the Low-E glass door protects against UV damage and minimizes condensation.
Its full-extension beechwood shelves, stainless steel trim, and upright design make it a sleek yet functional centerpiece for home bars, kitchens, or commercial wine displays.
Key Features
Dual-Zone Temperature Control
-
Upper Zone: 35°F – 54°F (2°C – 12°C)
-
Lower Zone: 54°F – 68°F (12°C – 20°C)
-
Perfect storage conditions for red and white wines.
Ultra-Quiet Embraco Inverter Compressor
-
Reduces energy use by up to 40%
-
Provides whisper-quiet and stable cooling.
Patented Sink of Compressor
-
Improves air circulation around the compressor
-
Enhances cooling performance and reduces vibration/noise.
Low-E Glass Door
-
Blocks harmful UV rays
-
Reduces heat transfer and condensation
-
Improves insulation and energy efficiency.
Fan-Circulated Air System
-
Maintains uniform temperature throughout the cabinet
-
Balances humidity to protect wine quality.
Activated Carbon Filter
-
Keeps air inside the cabinet fresh and odor-free
-
Filters impurities for better wine preservation.

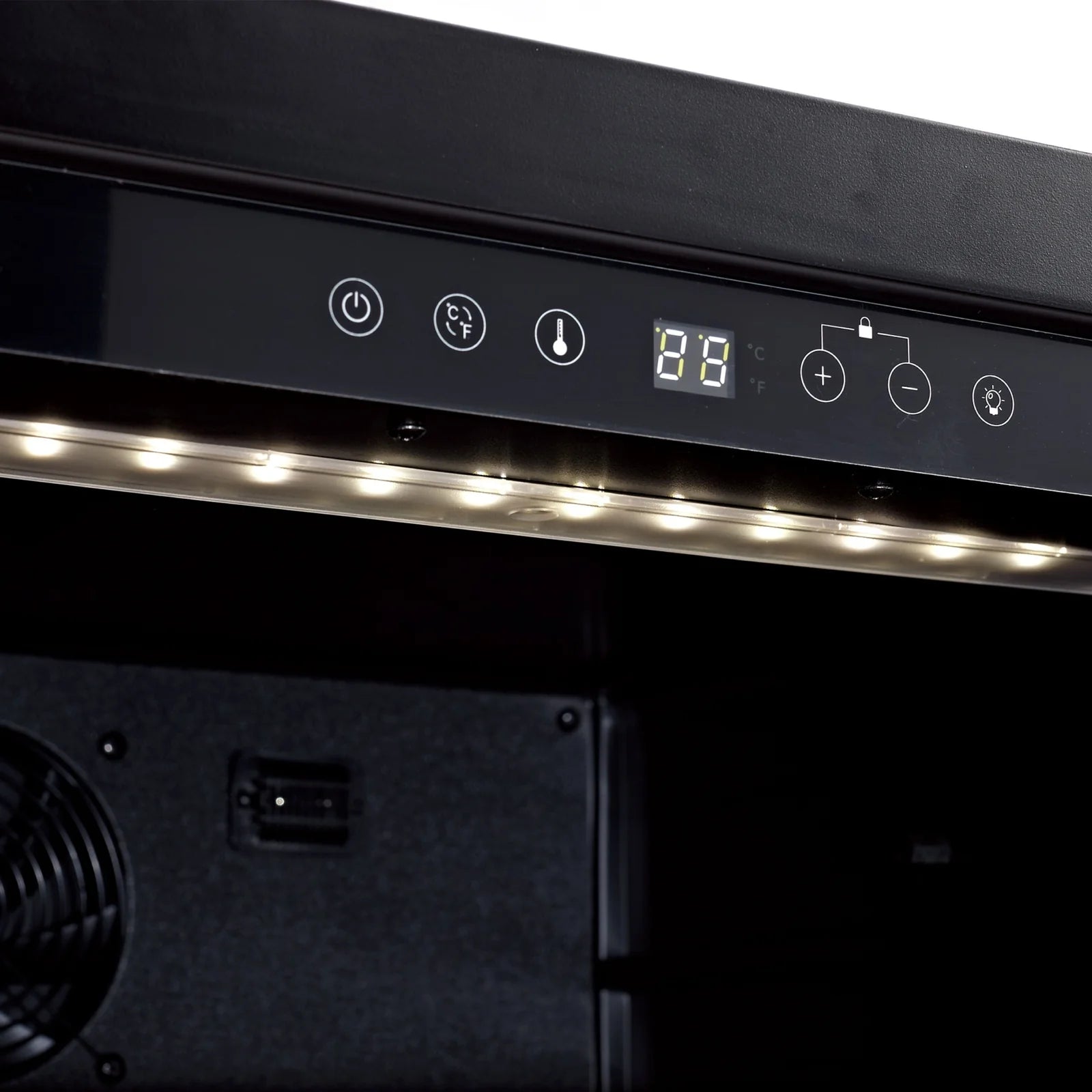

LED Digital Touchpad
-
Easy-to-use controls
-
Clear, precise temperature display.

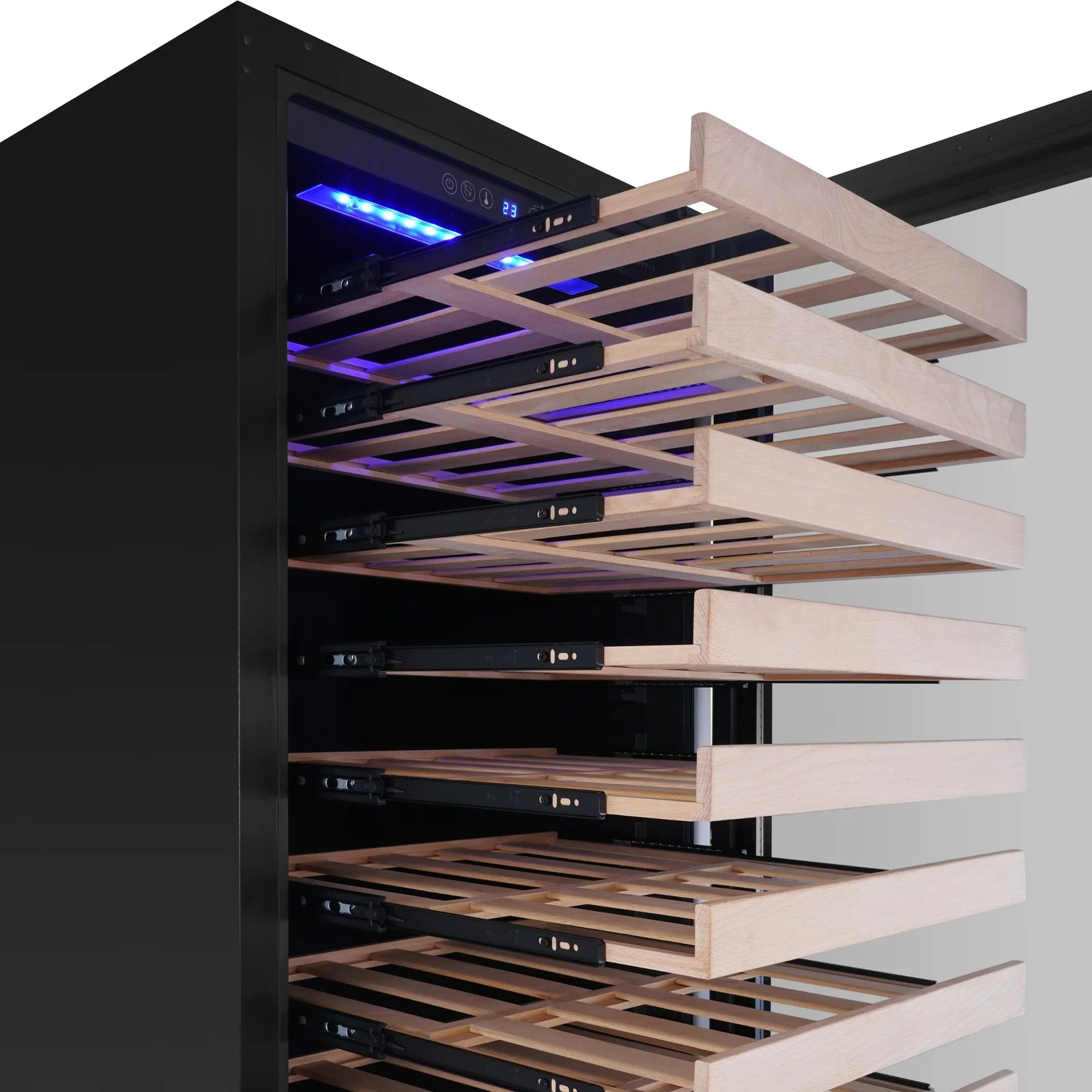

Premium Beechwood Shelves
-
15 full-extension pull-out shelves
-
Fit standard and larger bottles (up to 3.39” / 86mm diameter)
-
Smooth gliding, wine-friendly wood design.
Magnetic Door Switch & Alarm
-
Alerts if the door is left open for more than 2 minutes.

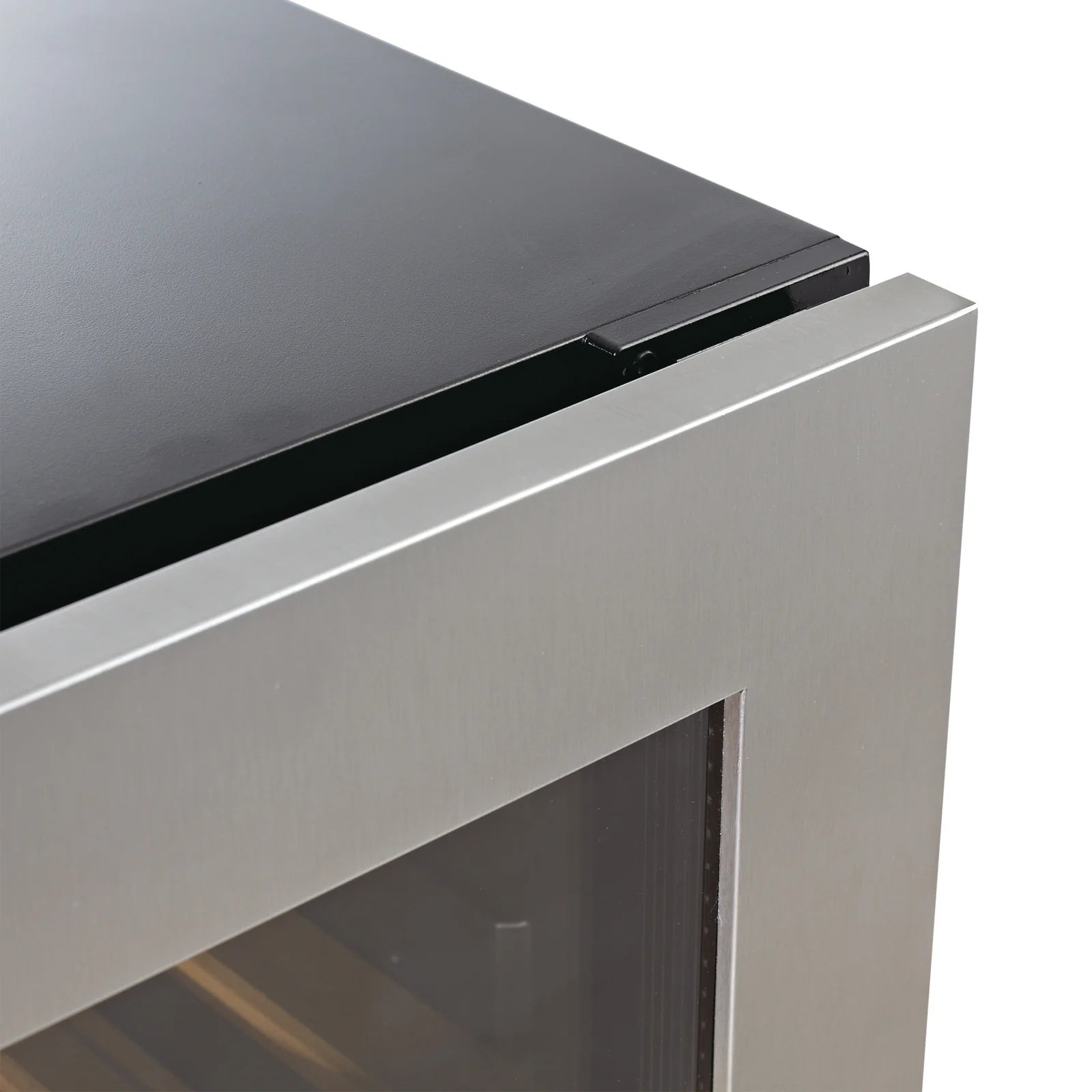

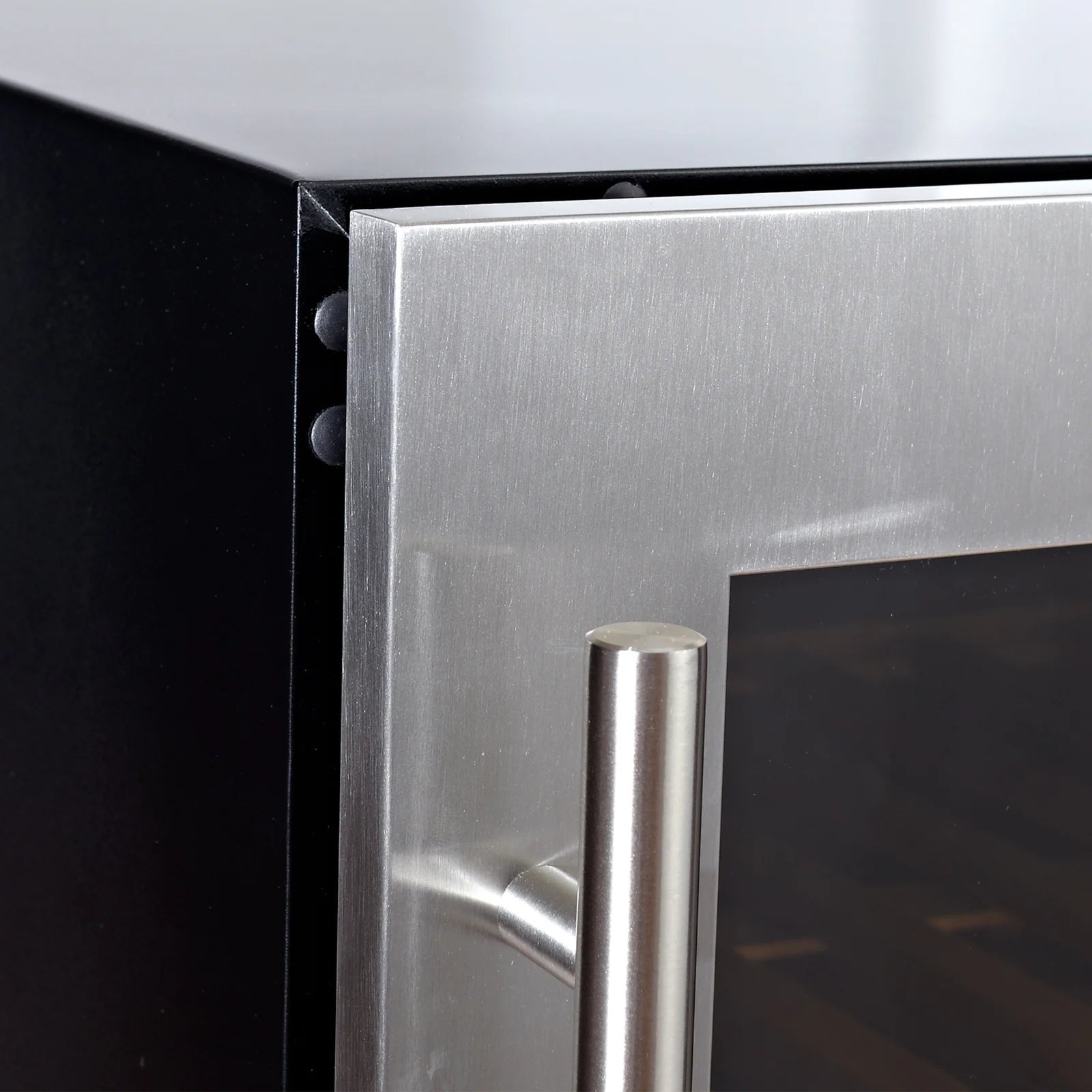

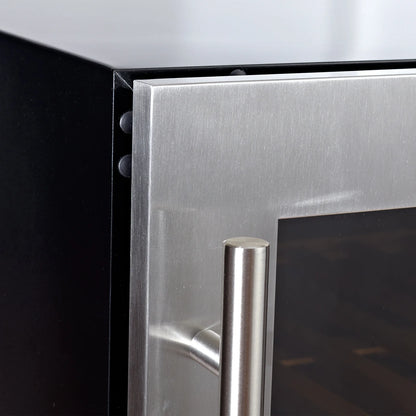

Seamless Design
-
Hidden door hinge for a built-in look
-
Thin stainless steel door frame with modern, artistic finish.
Energy-Efficient Build
-
45mm thick C-Pantane foam insulation
-
Enhances cooling and reduces energy consumption.
Specifications
-
Volume: 15.00 CF (425L)
-
Capacity: 159 bottles
-
Installation: Built-in or freestanding
-
Temperature Zones: Dual
-
Adjustable Temperature Range:
-
Upper Zone: 35°F – 54°F (2°C – 12°C)
-
Lower Zone: 54°F – 68°F (12°C – 20°C)
-
-
Operating Room Temp: 32°F – 100°F (0°C – 38°C)
-
Shelves: 15 beechwood pull-out shelves
-
Dimensions: 23.42”W x 27.36”D x 70.86”H (stand height: 0.59”)
-
Electrical: 110–115V / 60Hz, 165W, 1.7A, R600A / 52g refrigerant
-
Defrost Type: Automatic
-
Energy Consumption: 0.63 kWh / 24h

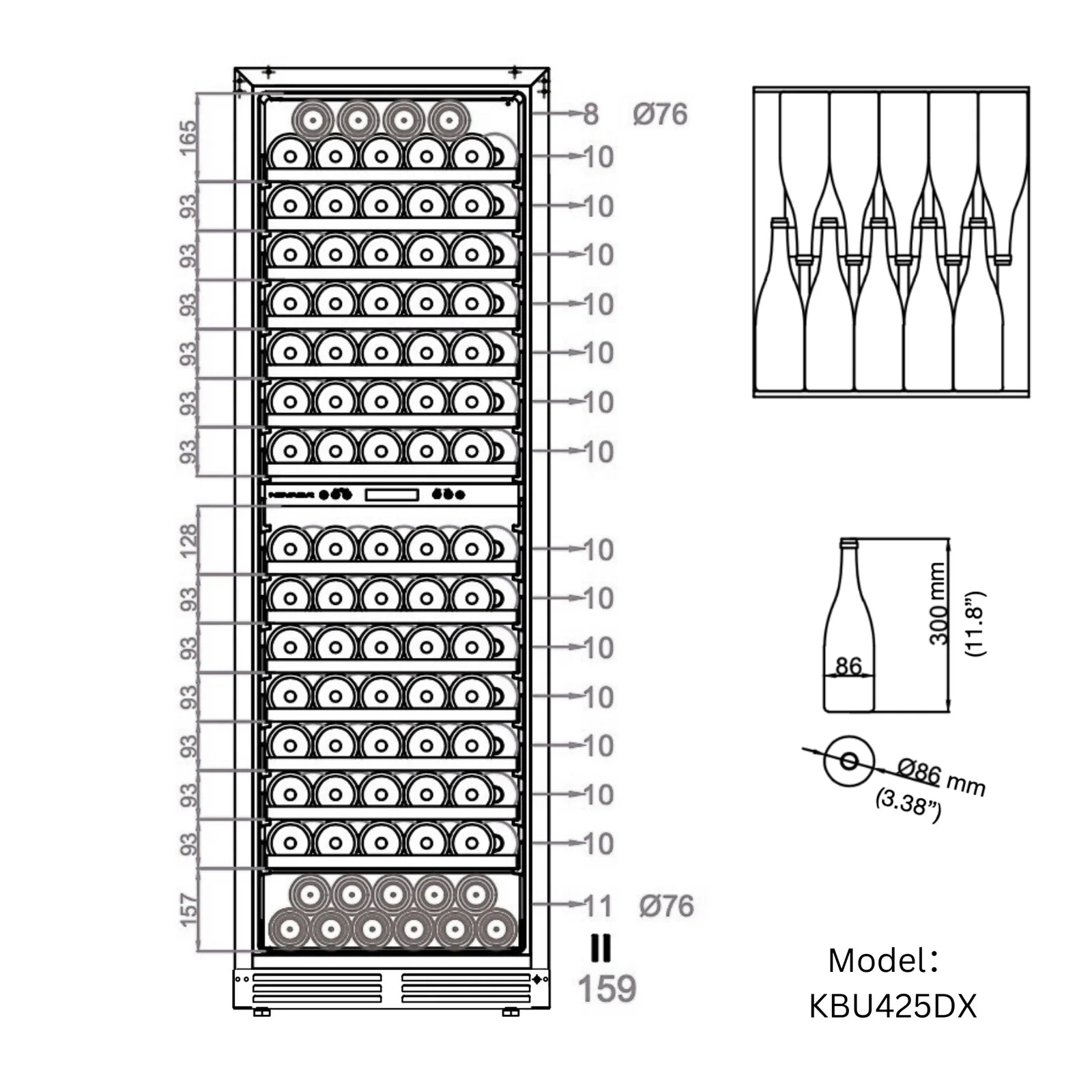

Dimensions & Diagrams
Technical Dimensions
Installation Diagrams
