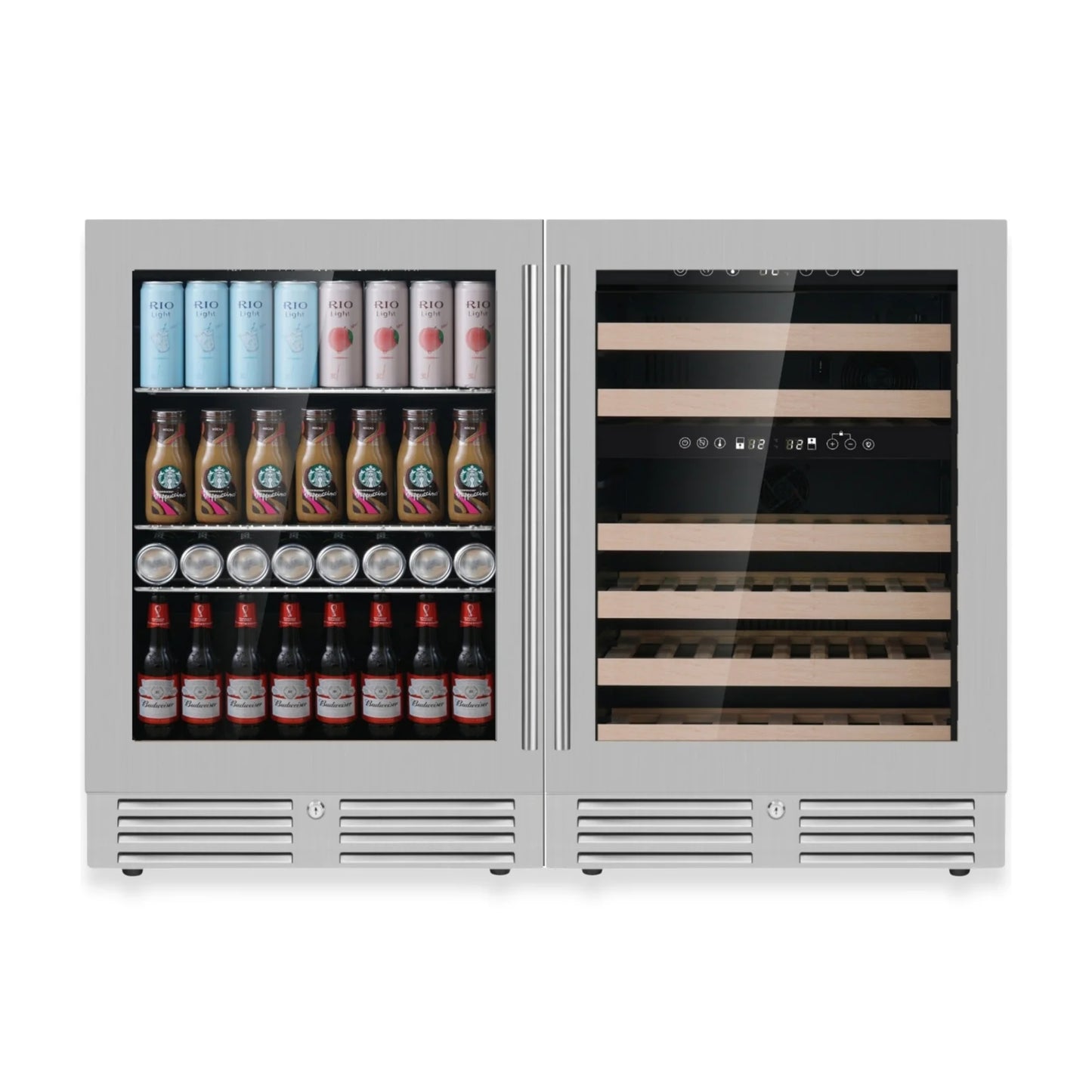

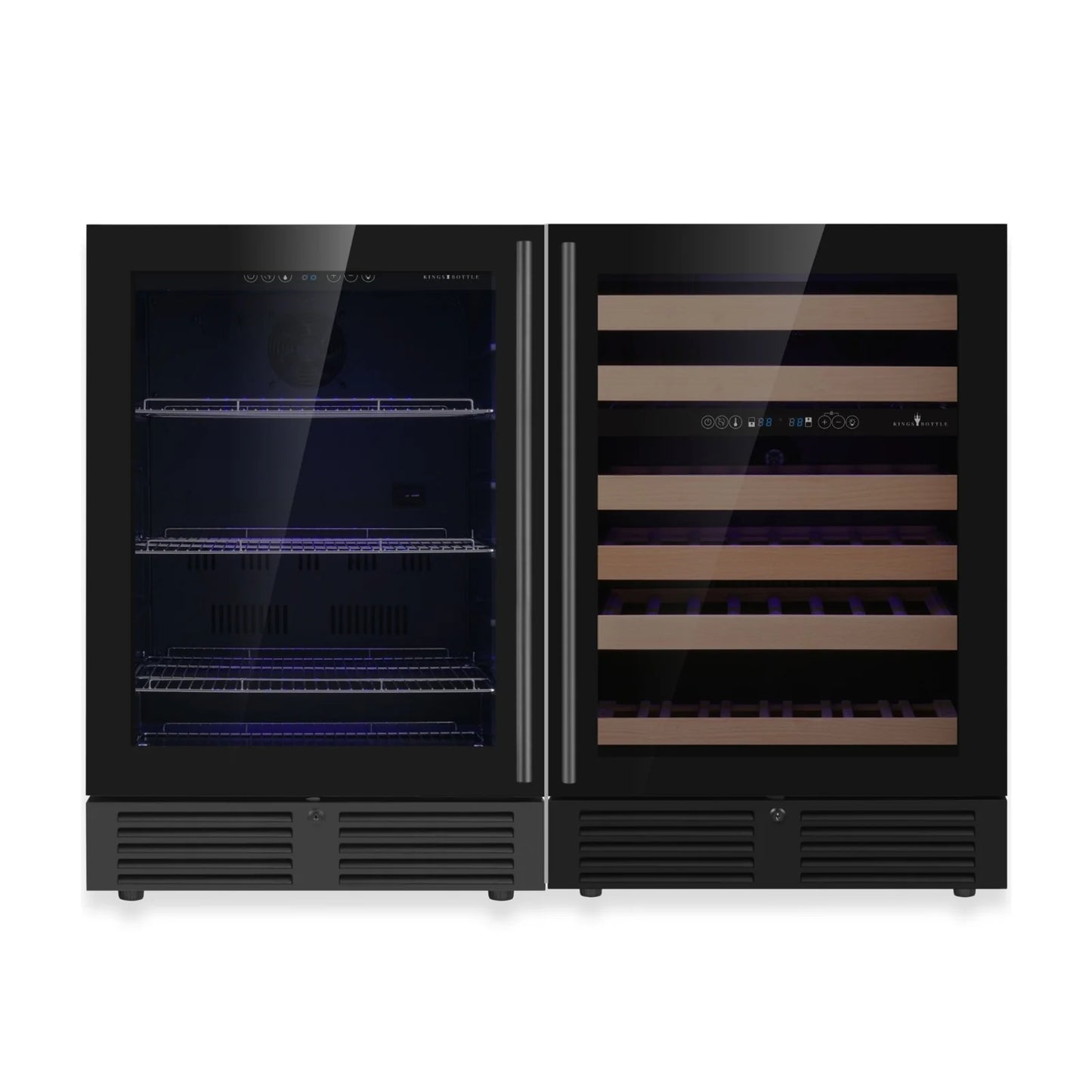

48" Under-Counter Wine & Beverage Refrigerator Combo with Triple Temp Zone
All-in-One Cooling for Wine & Drinks
The 48" Under-Bench Wine & Beverage Refrigerator Combo combines style, versatility, and performance for both residential and commercial spaces. With two dedicated sections, it stores up to 46 wine bottles on smooth-glide beechwood shelves and 161 beverage cans on sturdy steel shelving.
Powered by the Embraco Inverter Compressor, this dual-function unit ensures ultra-quiet, energy-efficient cooling with up to 40% lower energy use. The Low-E glass doors provide UV protection, reduce condensation, and enhance insulation—preserving your collection in peak condition.

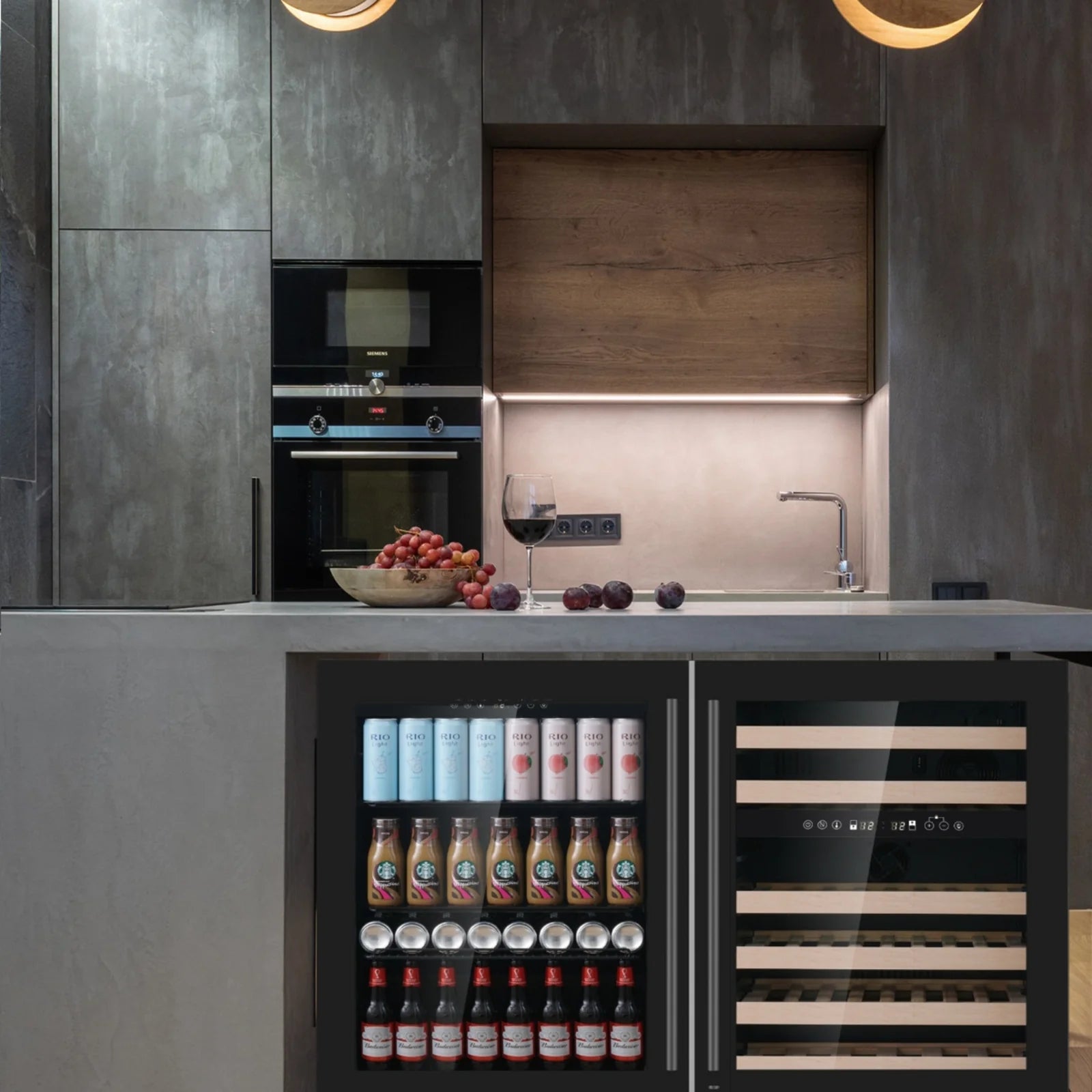

Its seamless stainless-steel frame, hidden hinges, and modern design make it a sleek, built-in or freestanding centerpiece for any kitchen, bar, or entertainment area.
Key Features
Triple-Zone Cooling
-
Beer Side: 35°F – 68°F (2°C – 20°C)
-
Wine Side: Upper 35°F – 54°F (2°C – 12°C), Lower 54°F – 68°F (12°C – 20°C)
Embraco Inverter Compressor
-
Quiet operation and 40% lower energy use.
Patented Sink of Compressor
-
Improves cooling performance, reduces vibration, and minimizes noise.
Low-E Glass Doors
-
UV protection, reduced condensation, and better insulation.
Fan-Circulated Air Cooling
-
Maintains even temperature and humidity throughout.
Activated Carbon Filter
-
Filters impurities and keeps air fresh.

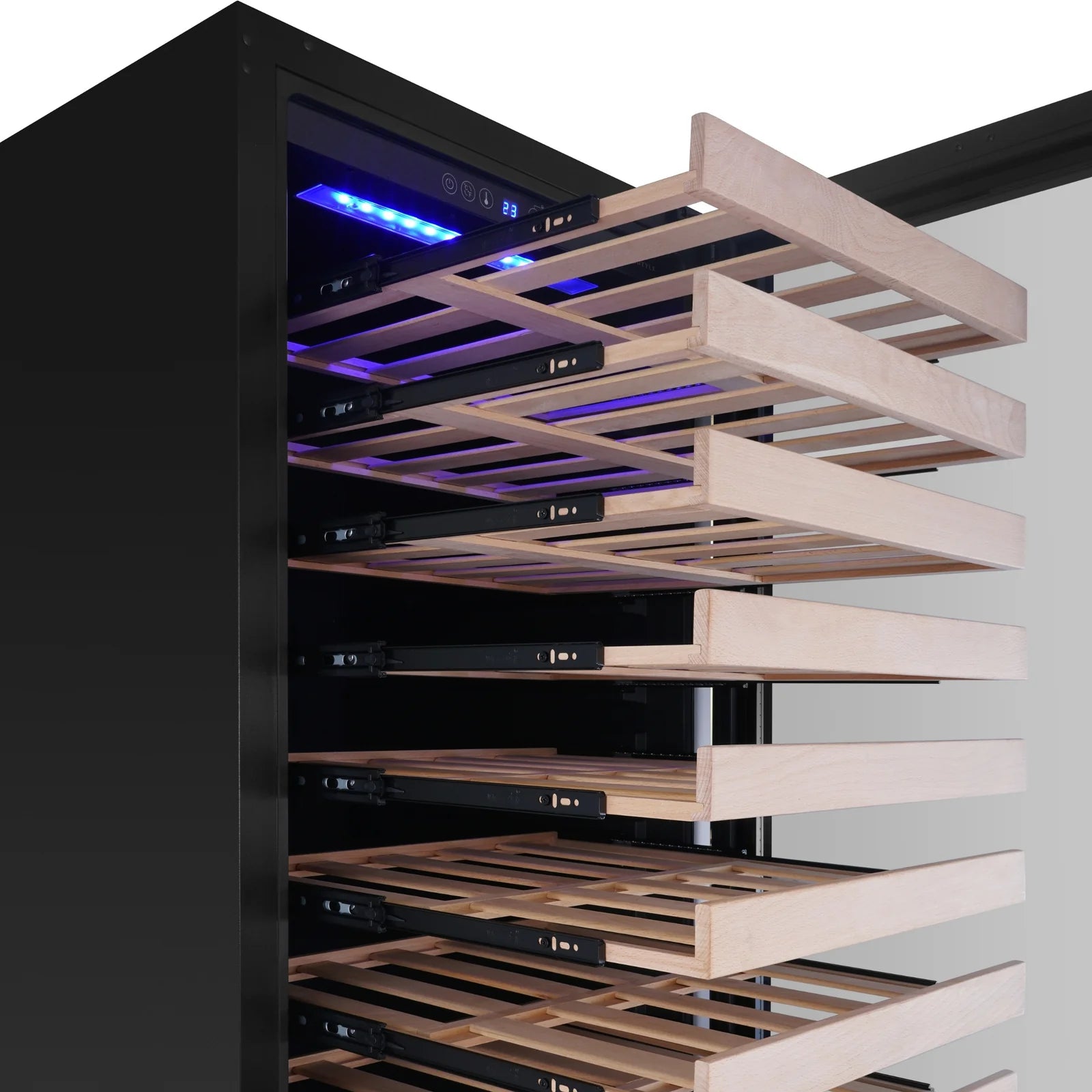

Full-Extension Beechwood & Steel Shelves
-
Fits standard and large wine bottles, plus flexible beverage storage.
LED Digital Touch Controls
-
Easy-to-use, accurate temperature management.
Magnetic Door Alarm
-
Alerts after 2 minutes to prevent accidental warming.
Seamless Stainless Steel Design
-
Hidden hinges and slim door frame for a modern, built-in look.
Enhanced Insulation
-
45mm thick C-Pantane foam for optimized cooling efficiency.
Specifications
General
-
Volume: 10.24 CF (290 Liters) Total (5.12 CF each side)
-

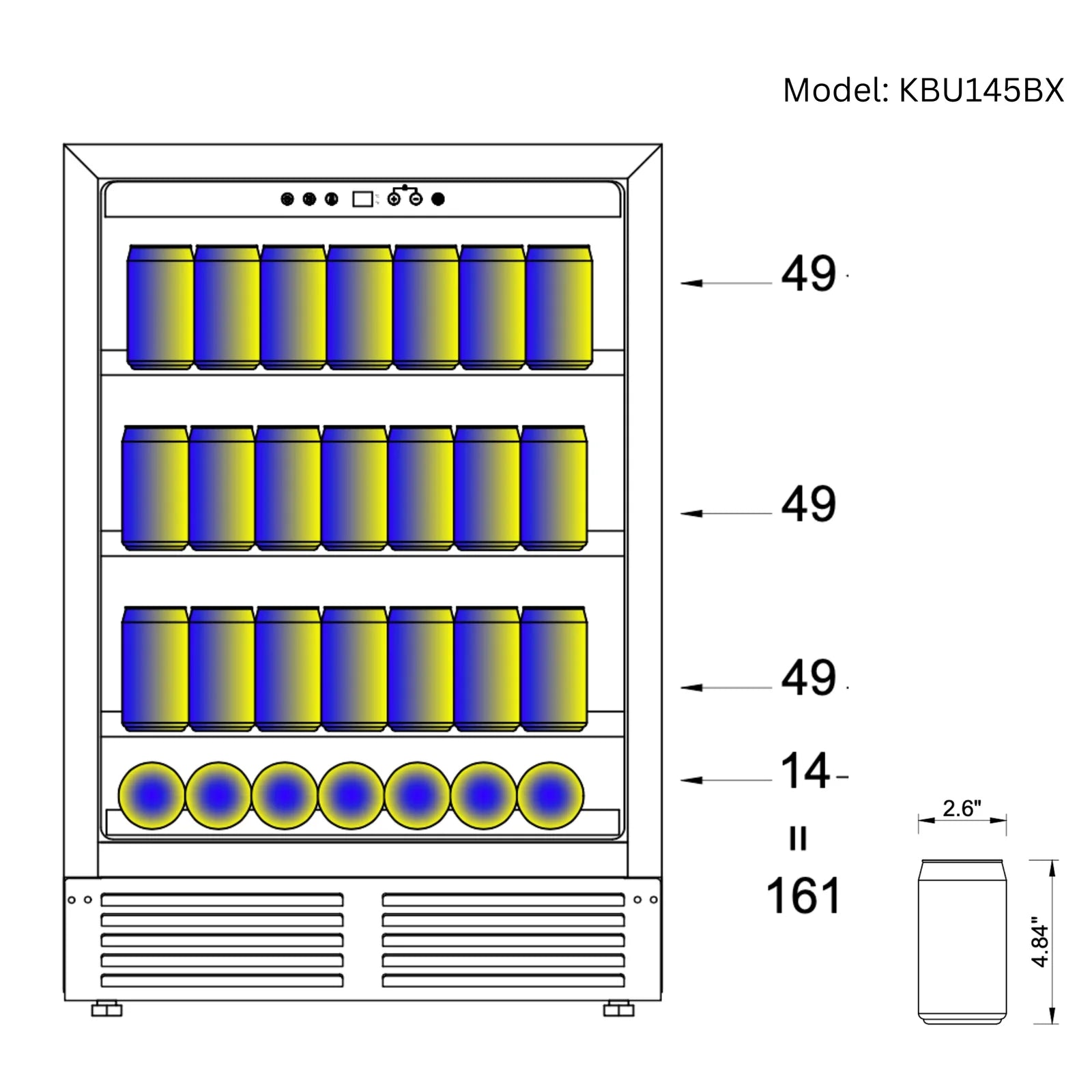

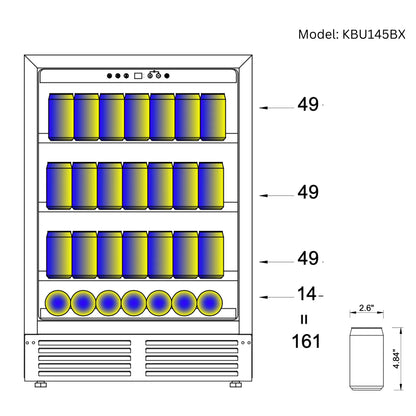

Capacity: 46 Wine Bottles + 161 Cans
-
Installation Type: Built-In or Freestanding
-
Climate Type: N
-
Zones: Triple Zone
-
Adjustable Temperature Range:
-
Beer Side: 35°F – 68°F (2°C – 20°C)
-
Wine Side: Upper 35°F – 54°F (2°C – 12°C), Lower 54°F – 68°F (12°C – 20°C)
-
-
Operating Room Temp: 32°F – 100°F (0°C – 38°C)
-
Shelf Configuration: 6 Beech Wooden + 4 Steel Shelves
-
Dimensions: 46.84”W × 22.75”D × 32.87”H (incl. 0.59” stand)
Electrical & Cooling
-
Compressor: Embraco Inverter Compressor
-
Defrost Type: Automatic
-
Power Supply: 110–115V / 60Hz
-
Rated Power: 200W (100W per unit)
-
Rated Current: 2.4A (1.2A per unit)
-
Refrigerant: R600A / 25g per unit
-
Certifications: ETL / DOE
Dimensions & Diagrams (Set of Two)
Technical Dimensions
Installation Diagrams
