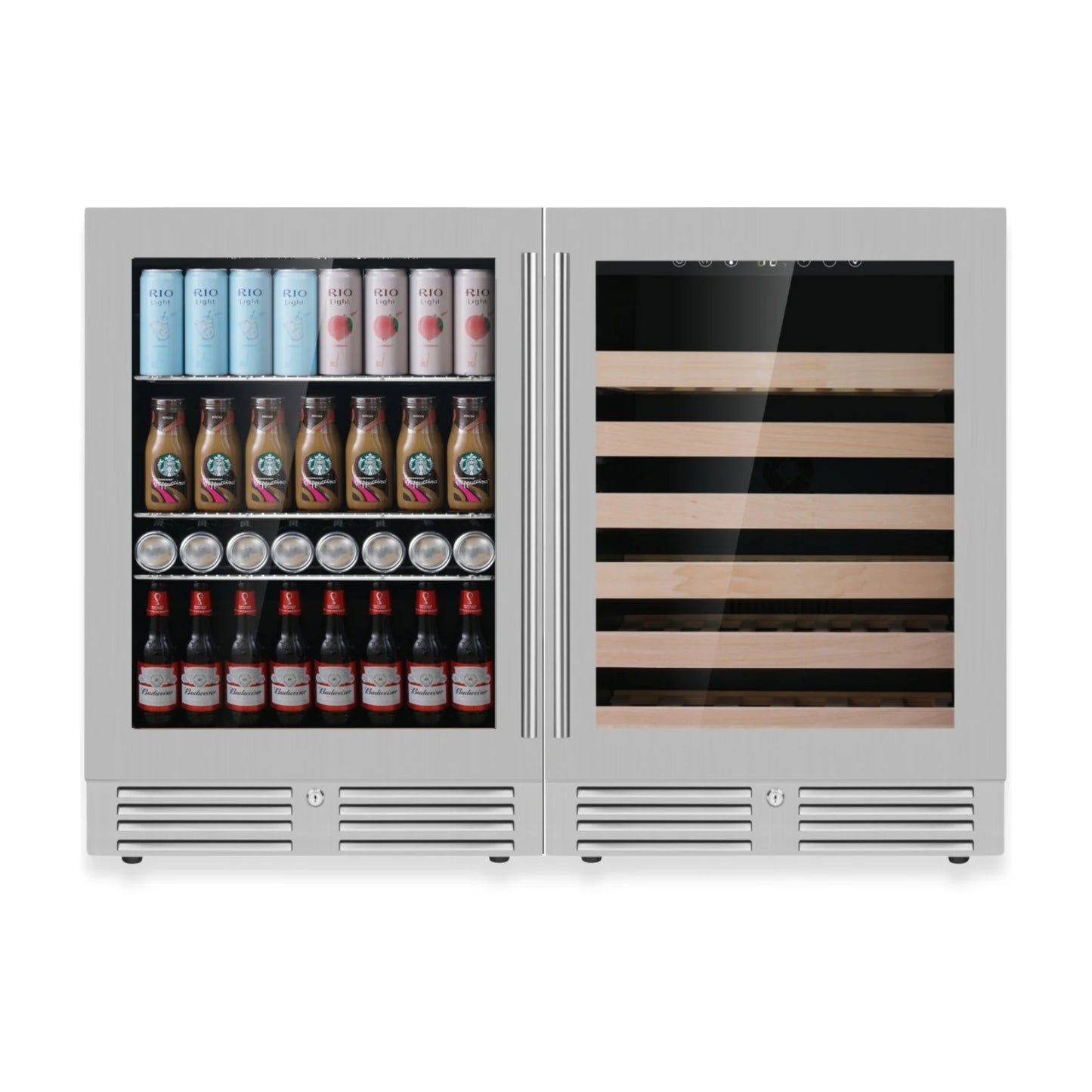

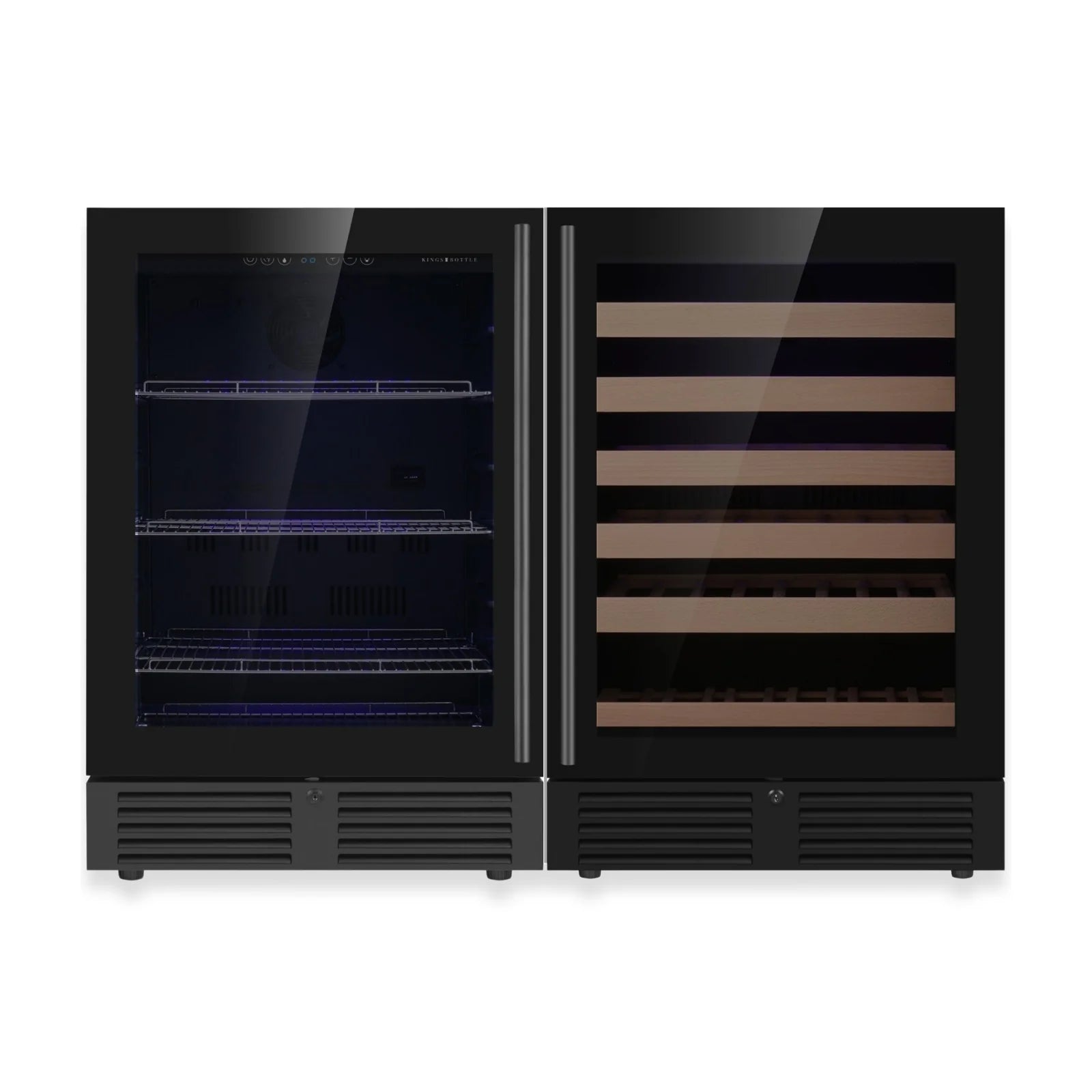

Under-Bench Wine & Beverage Refrigerator Combo
Space-Efficient Wine & Beverage Storage
The Ultimate Under-Bench Wine & Beverage Refrigerator Combo is designed for wine and beverage lovers who want versatile, space-efficient storage.
Featuring a dual-zone setup, it combines a wine cooler for up to 46 bottles with a beverage compartment for 161 cans, each with its own independent temperature control.
Powered by the Embraco Inverter Compressor, this unit ensures ultra-quiet, energy-efficient operation, reducing consumption while keeping your drinks perfectly chilled.
Suitable for built-in or freestanding installation, its sleek design makes it a stylish addition to kitchens, bars, or entertainment spaces.
Key Features
-
Dual-Zone Cooling: Independent storage for wine and beverages.
-
Embraco Inverter Compressor: Quiet operation with up to 40% energy savings.
-
Patented Sink of Compressor: Improves airflow, cooling, and reduces vibration.
-
Low-E Glass Door: Reduces energy loss, condensation, and UV exposure.
-
Fan-Circulated Air Cooling: Maintains even temperature and humidity.
-
Activated Carbon Filter: Keeps cabinet air fresh and odor-free.
-

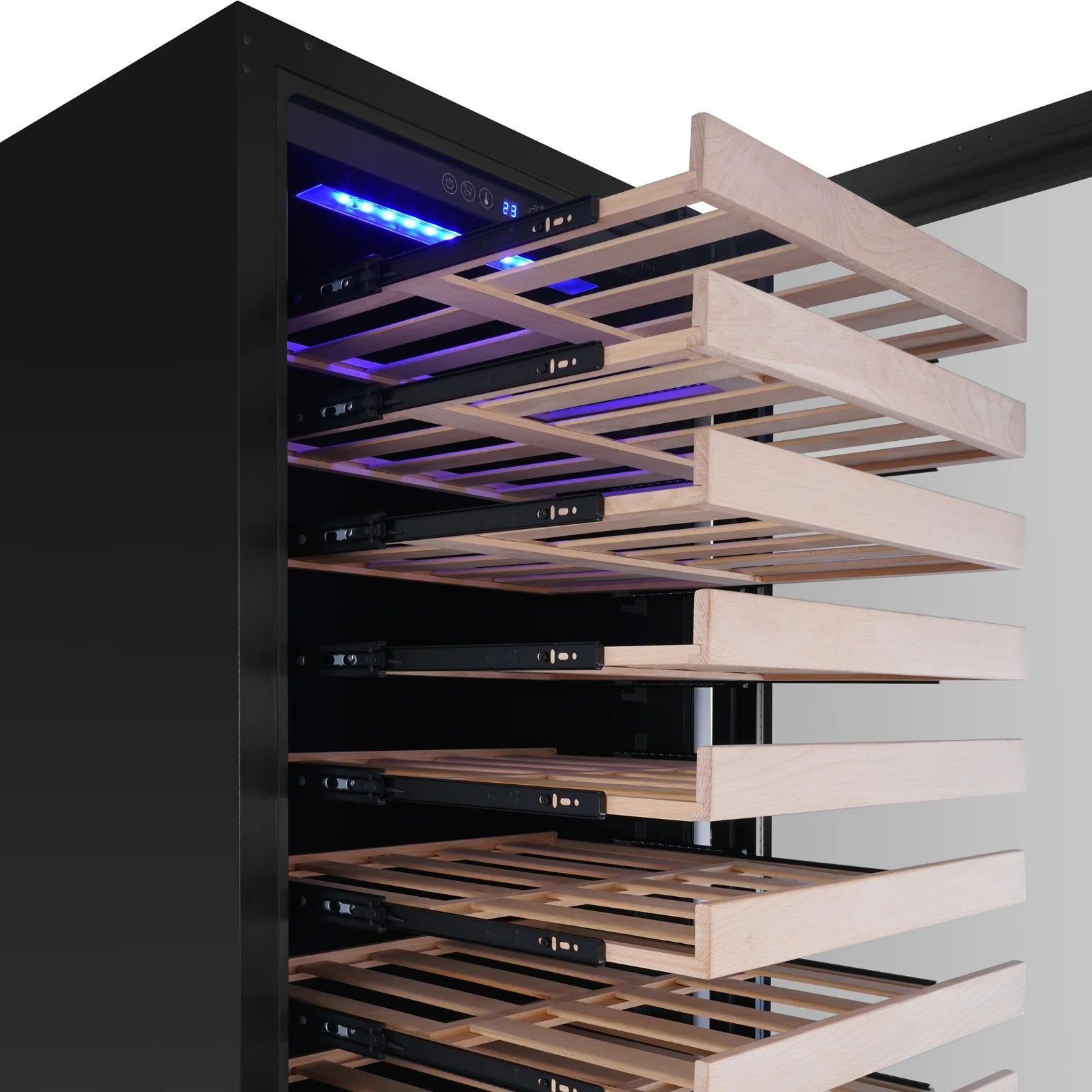

Full-Extension Beechwood Shelves: Fits both standard and larger bottles (up to 3.39").
-

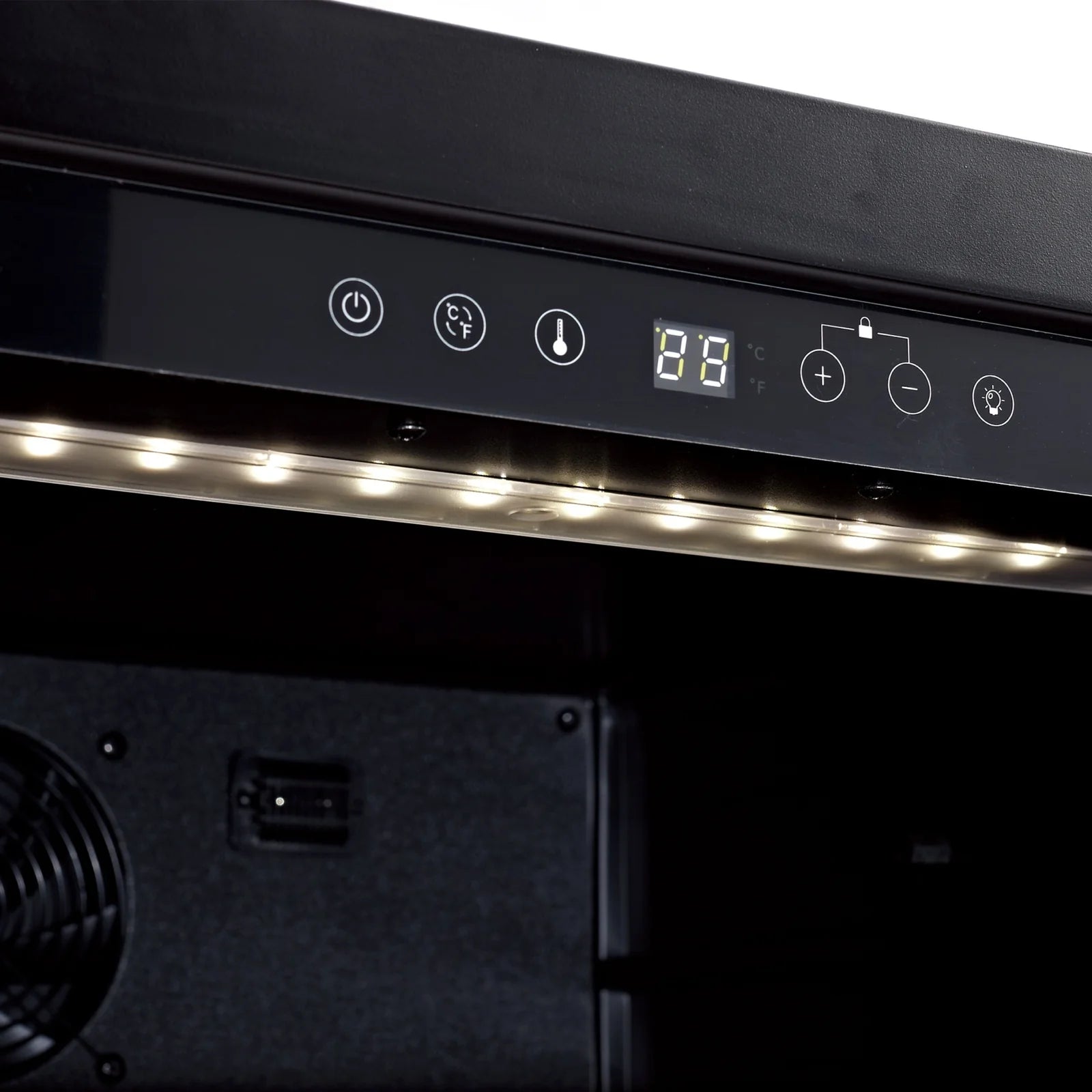

LED Digital Touch Controls: Easy-to-use with accurate temperature settings.
-
Hidden Door Hinge: Clean, built-in appearance.
-
Magnetic Door Switch: Alarm triggers after 2 minutes if left open.
-

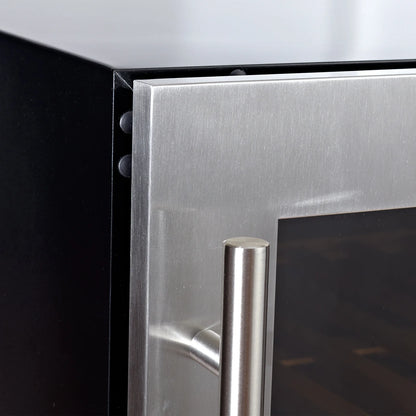

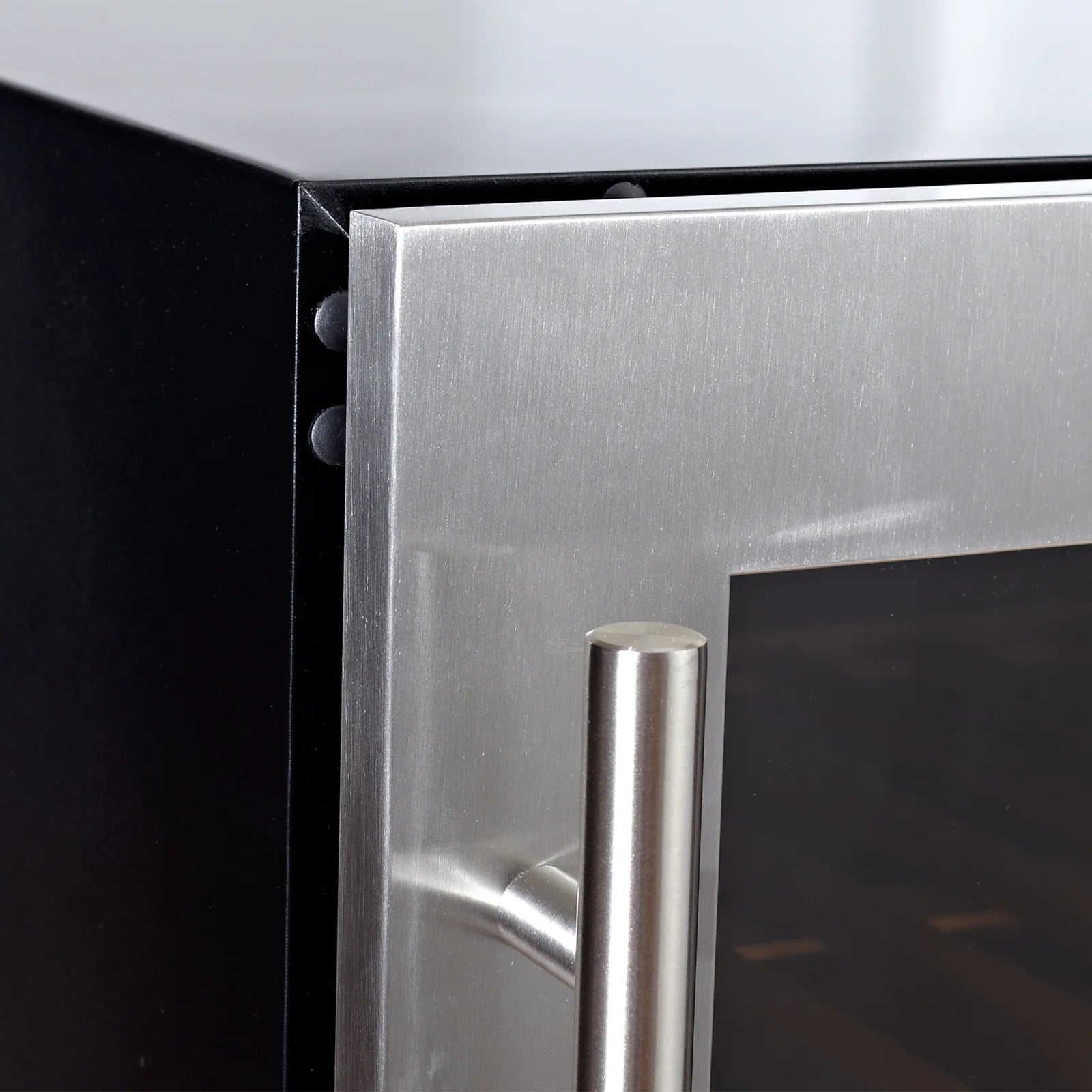

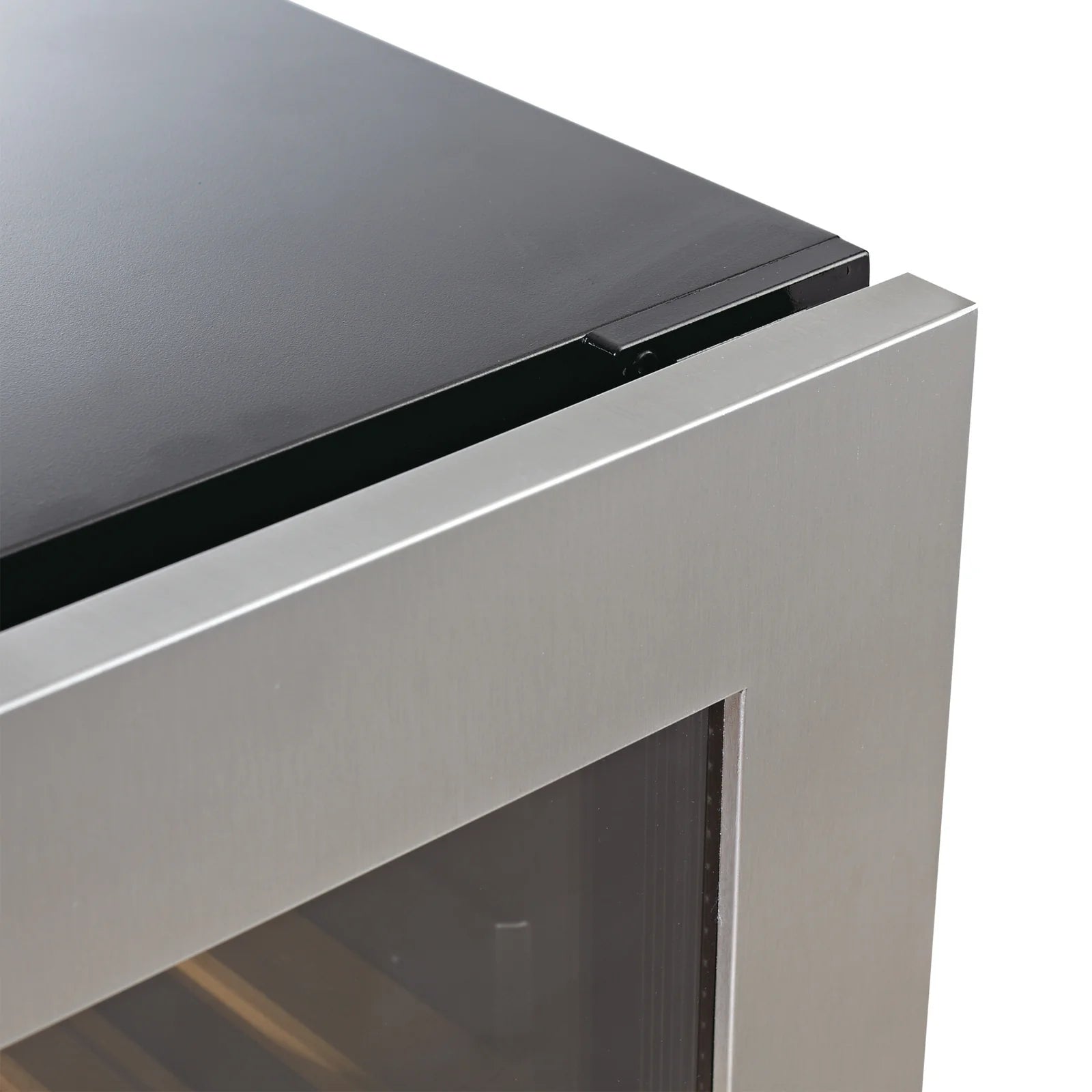

Seamless Stainless Steel Frame: Thin, modern door design.
-
Enhanced Insulation (45mm C-Pantane Foam): Optimizes efficiency and cooling performance.
Specifications
General
-
Volume: 10.24 CF (290 Liters Total), 5.12 CF per side
-

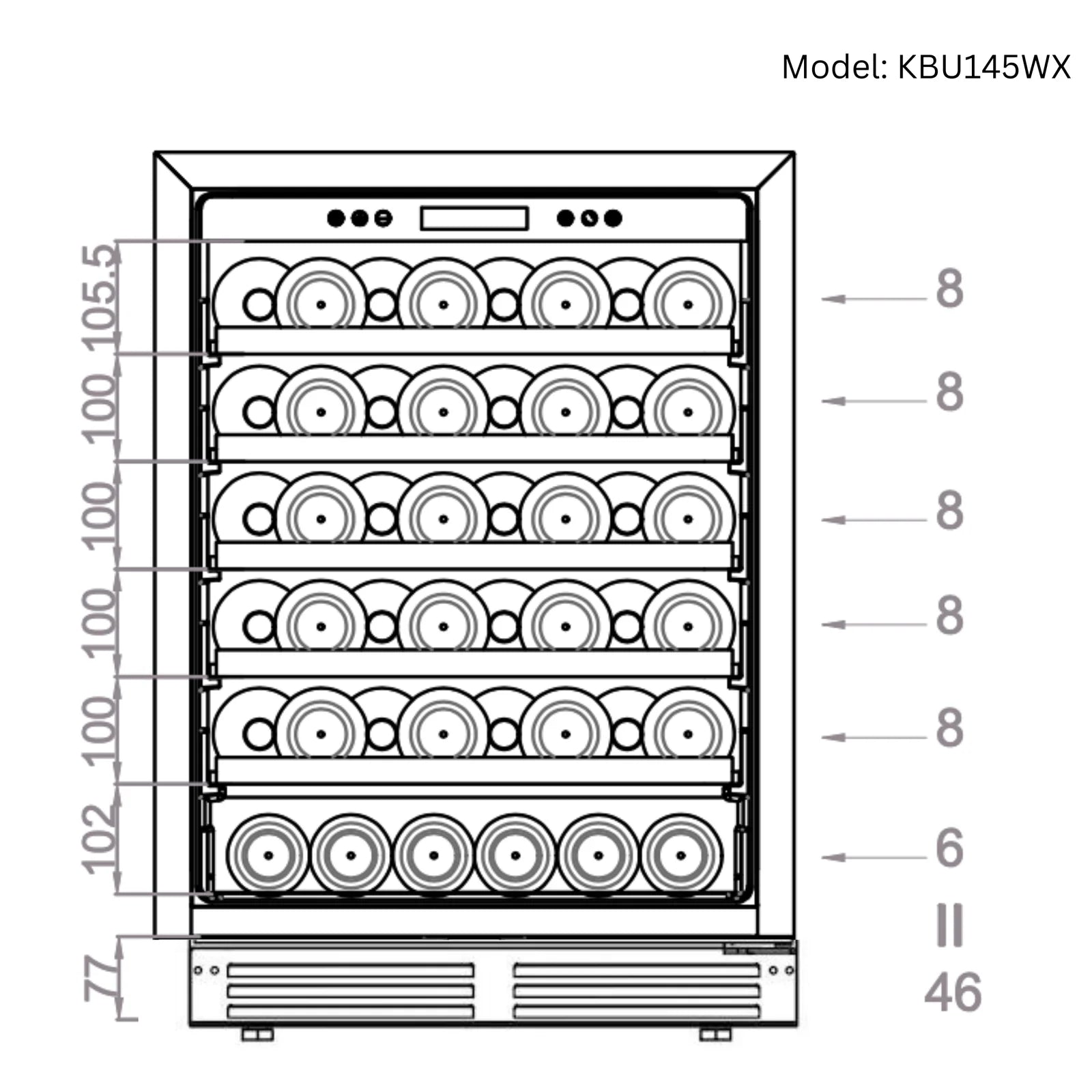

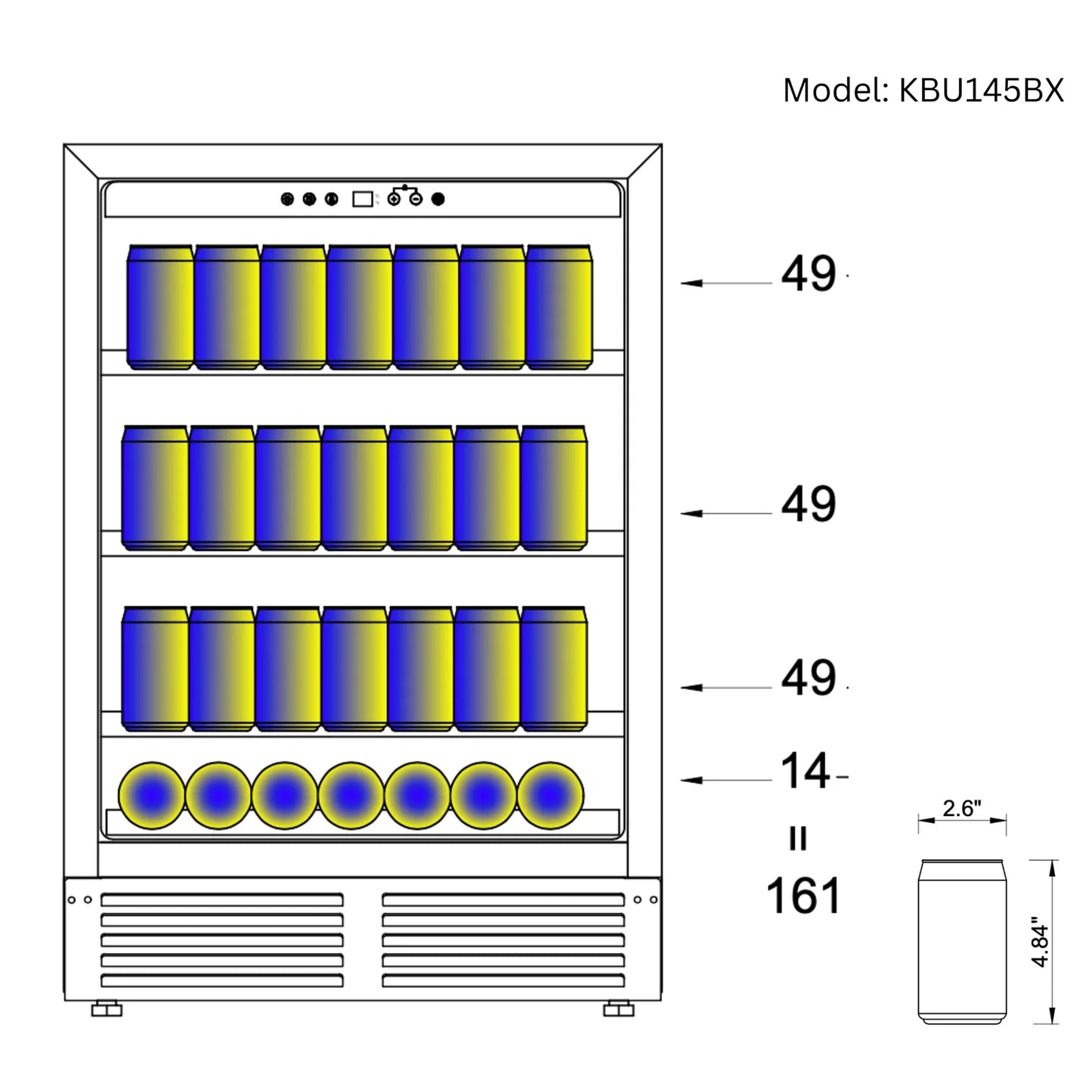

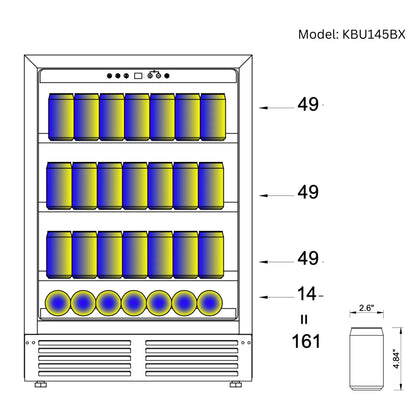

Capacity: 46 Bottles + 161 Cans
-
Installation Type: Built-In or Freestanding
-
Climate Type: N
-
Temperature Zones: Dual Zone
-
Temperature Range:
-
Beverage Side: 35°F – 68°F (2°C – 20°C)
-
Wine Side: 41°F – 68°F (5°C – 20°C)
-
-
Operating Room Temperature: 32°F – 100°F (0°C – 38°C)
-
Shelf Configuration: 4 Chromed Steel + 6 Beech Wooden Shelves
-
Dimensions: 46.84” W × 22.75” D × 32.87” H (includes 0.59” stand)
Electrical & Cooling
-
Compressor: Embraco Inverter Compressor
-
Power Supply: 110–115V / 60Hz
-
Rated Power: 200W (100W per unit)
-
Rated Current: 2.4A (1.2A per unit)
-
Refrigerant: R600A / 25g per unit
-
Compliance: ETL / DOE
Dimensions & Diagrams (Set of Two)
Technical Dimensions
Installation Diagram
