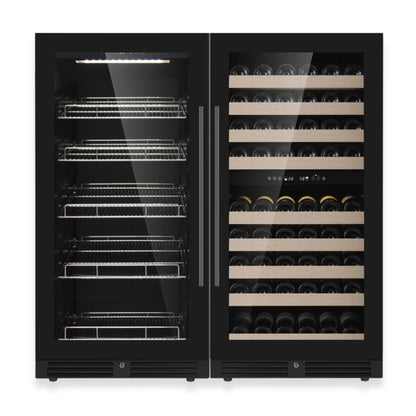

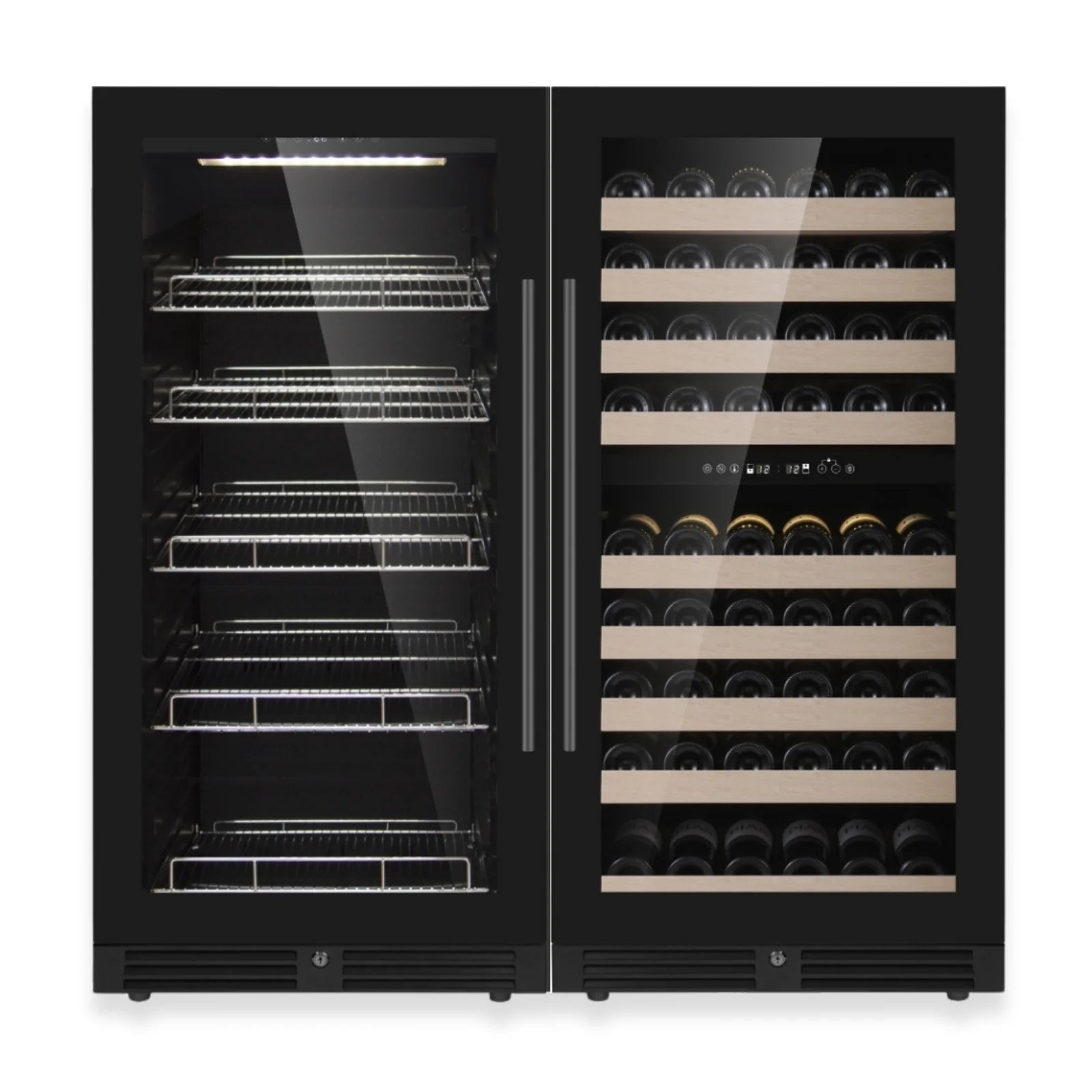

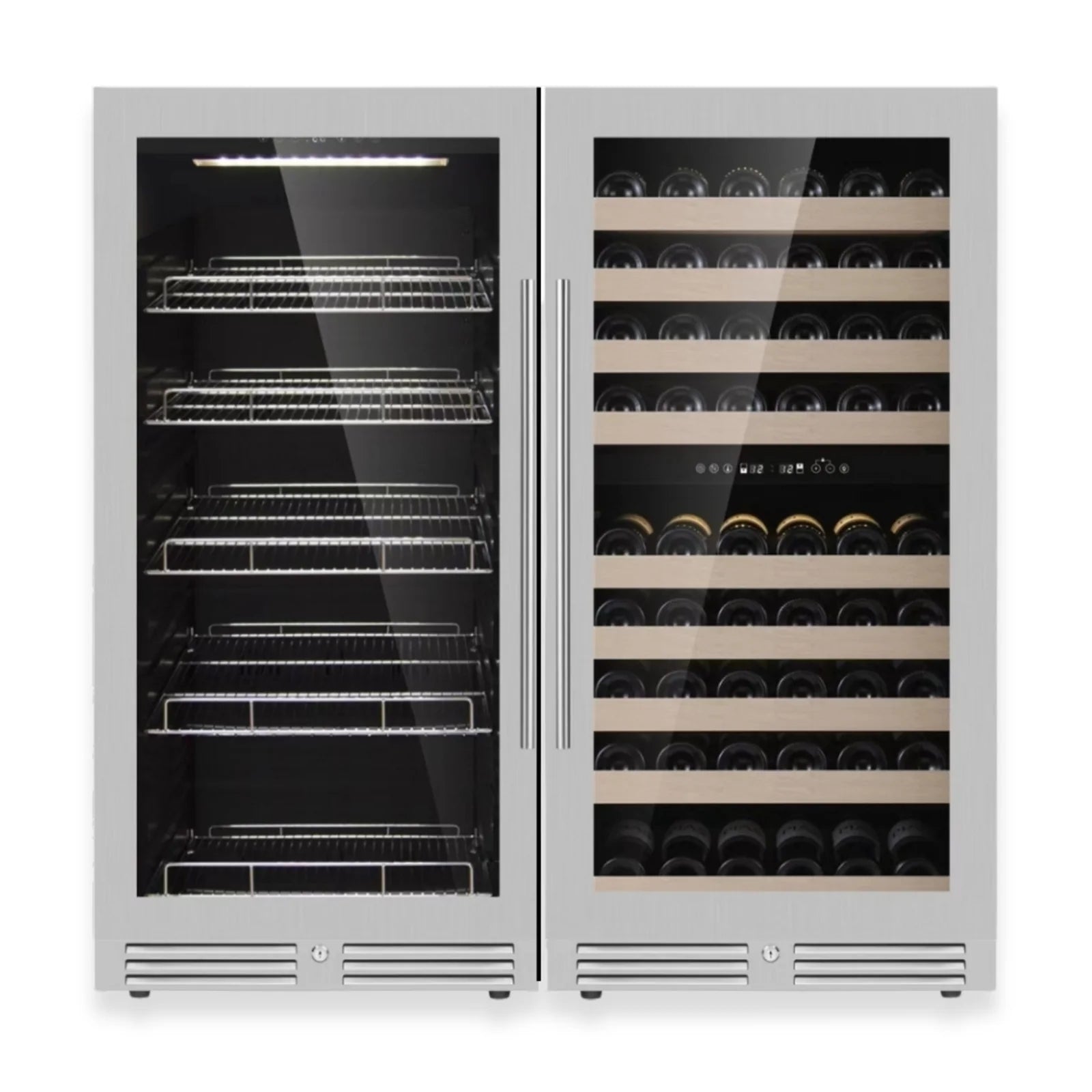

47" High Triple-Zone Wine & Beverage Refrigerator Combo
The 47" High Triple-Zone Wine & Beverage Refrigerator Combo is designed for wine enthusiasts and beverage lovers who require optimal storage for both wine and drinks. It features dual-zone wine cooling for reds and whites, plus a dedicated beverage compartment for cans.
Powered by the Embraco Inverter Compressor, this unit delivers ultra-quiet, energy-efficient cooling with precise temperature control. The sleek Low-E glass door provides UV protection and enhances energy efficiency.
Specifications
-
Volume: 18.72 CF (530 Liters) Total, 9.36 CF (265 Liters) Each
-

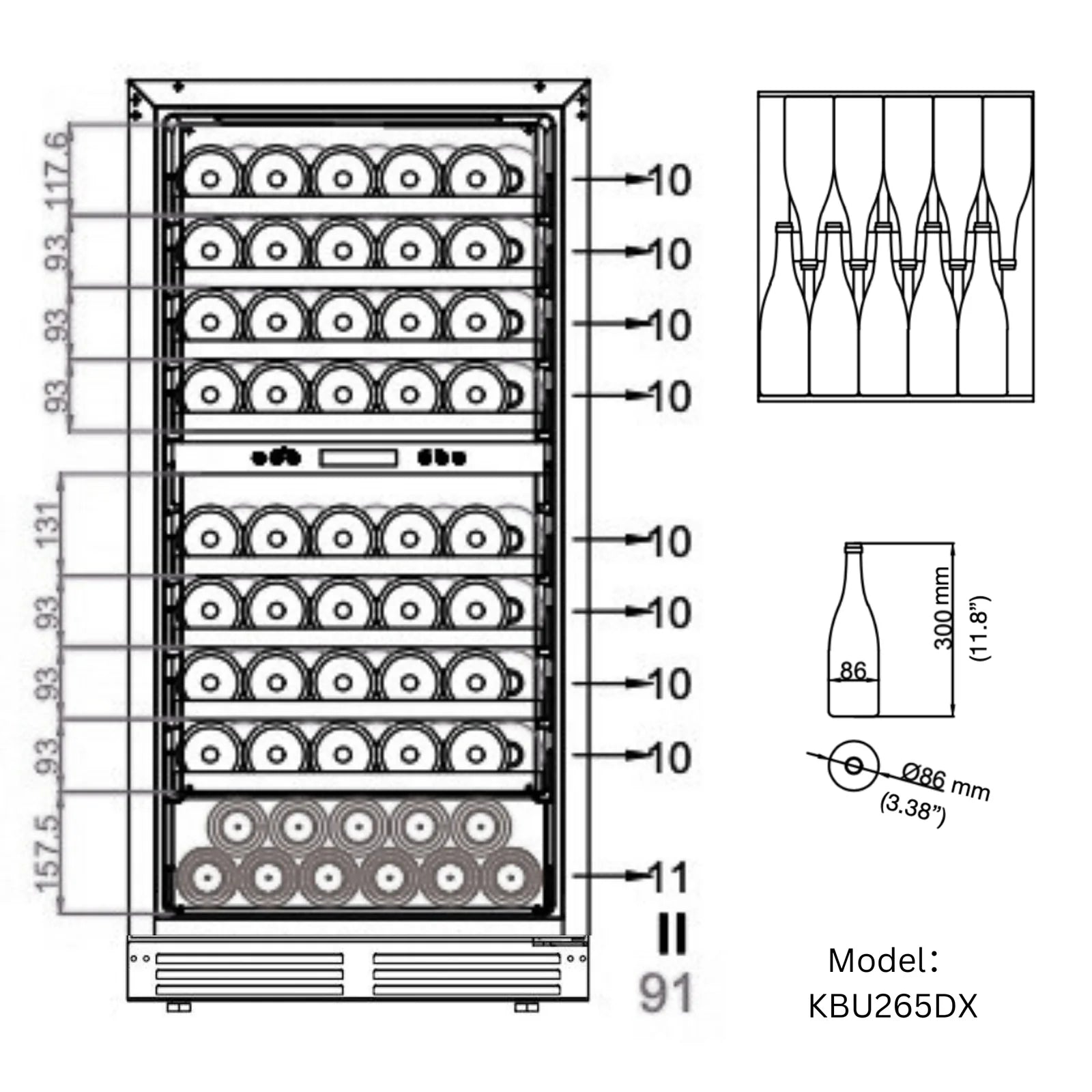

Capacity (Wine): 91 bottles
-

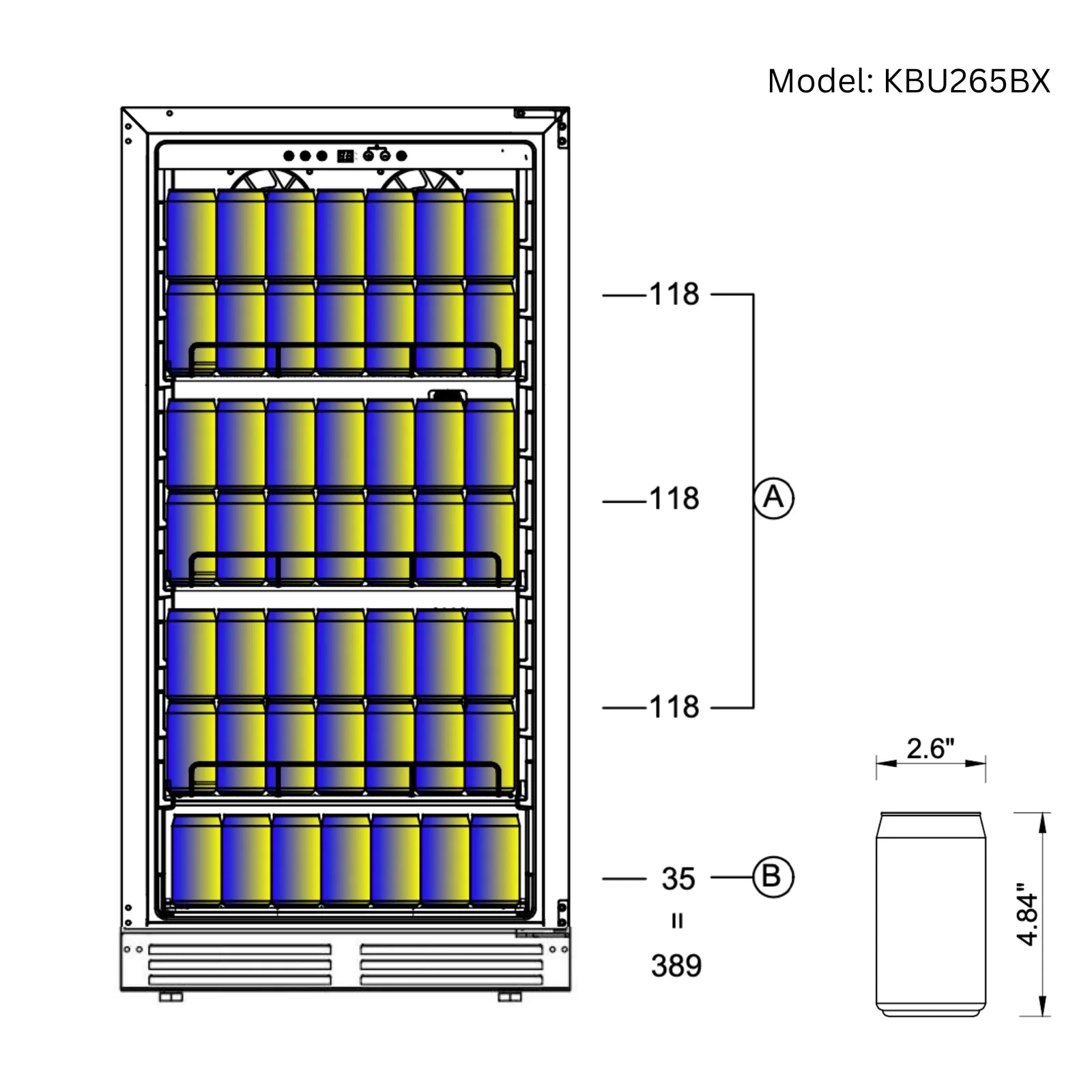

Capacity (Beverages): 389 cans
-
Installation Type: Built-In or Freestanding
-
Climate Type: N
-
Temperature Zones: Triple Zone
-
Adjustable Temperature Range:
-
Beer Side: 35°F to 68°F (2°C to 20°C)
-
Wine Side:
-
Upper Zone: 35°F to 54°F (2°C to 12°C)
-
Lower Zone: 54°F to 68°F (12°C to 20°C)
-
-
-
Operating Room Temperature: 32–100°F (0–38°C)
-
Shelf Configuration: 5 Chromed Steel Shelves + 8 Beech Wooden Shelves
-
Dimensions: 46.84” W x 27.55” D x 47.24” H (includes stand height 0.59”)
Electrical
-
Compressor: Embraco Inverter Compressor
-
Power Supply: 110–115V / 60Hz
-
Rated Power Input: 330W (165W per unit)
-
Rated Current: 3.4A (1.7A per unit)
-
Refrigerant: R600A / 45g per unit
Key Features
Inverter Compressor
-
Embraco inverter compressor
-
Quiet operation
-
Reduces energy consumption by up to 40%
Patented Sink of Compressor
-
Improves air circulation around compressor
-
Enhances cooling performance
-
Reduces vibration and noise
Low-E Glass
-
Minimizes condensation and energy loss
-
Provides UV protection
-
Acts as an invisible insulating barrier
Note: Coating reduces heat transfer, improving energy efficiency and cooling performance
Fan-Circulated Air-Cooling System
-
Maintains uniform temperature
-
Controls humidity to protect contents
Activated Carbon Filter
-
Filters impurities in the air
-
Keeps cabinet fresh and odor-free

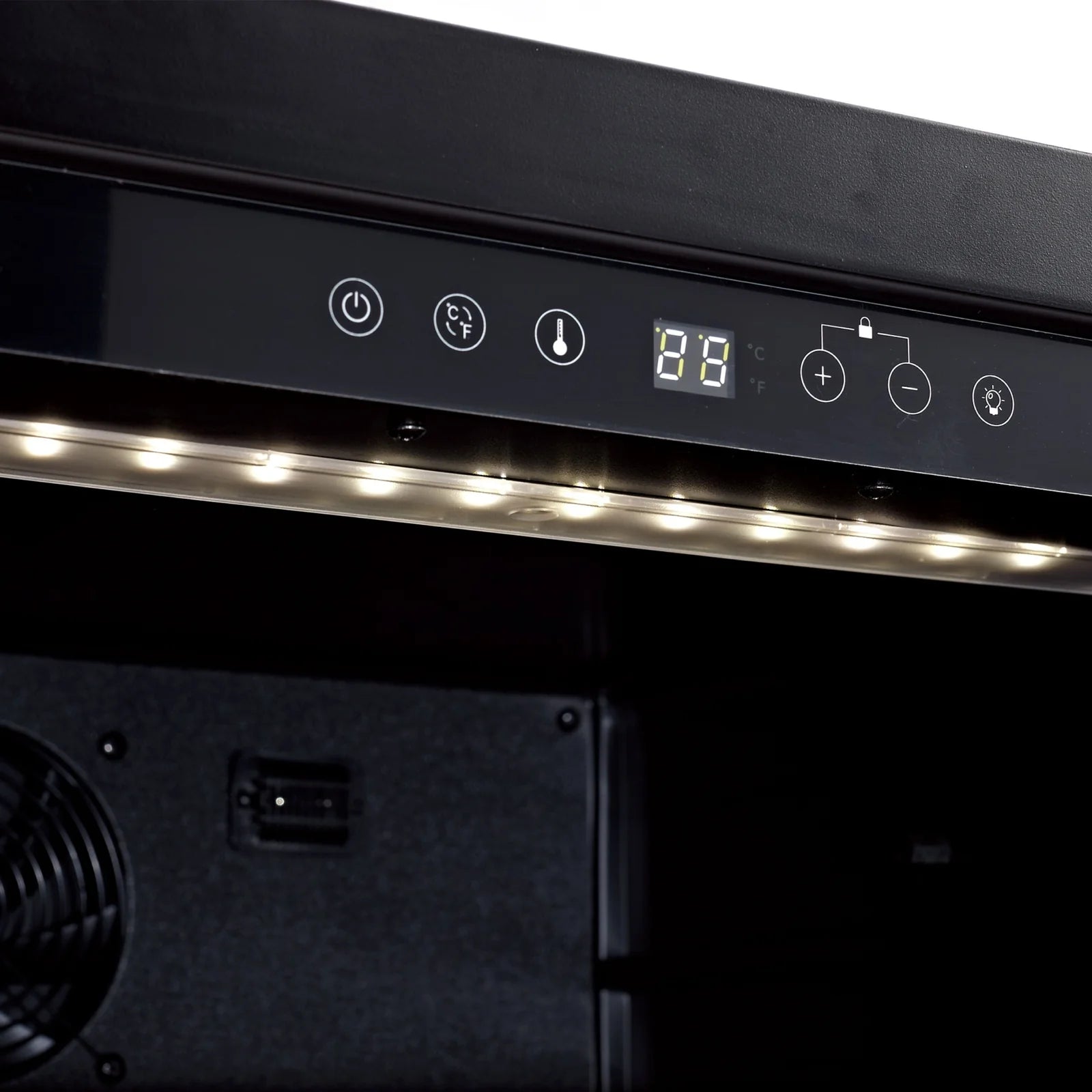

LED Display with Digital Touchpad
-
Easy-to-use controls
-
Clear and accurate temperature display

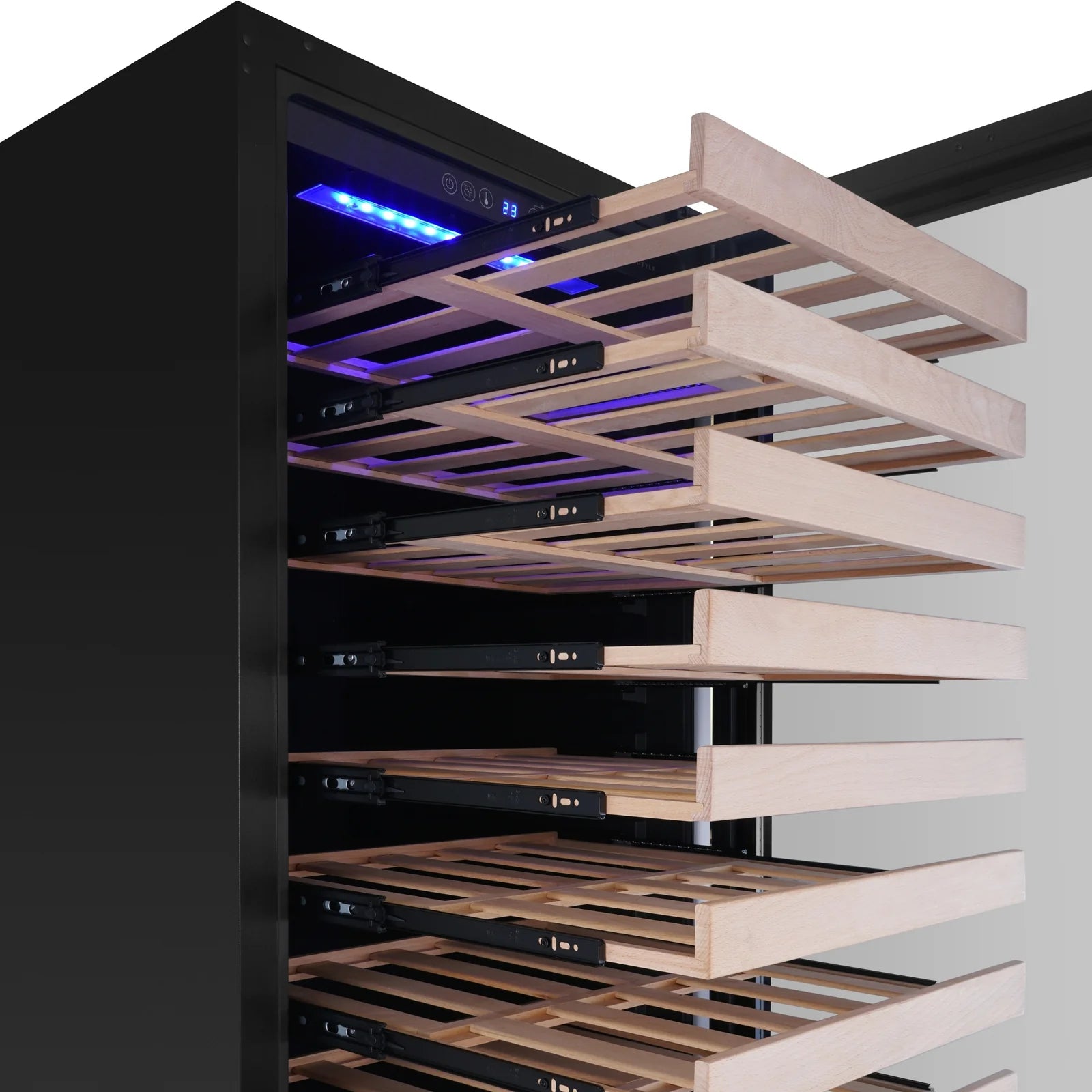

Beech Wooden Shelves
-
Full-extension pull-out design
-
Durable and wine-friendly beech wood
-
Fits both standard and larger bottles (up to 3.39" diameter)
Magnetic Switch
-
Door-open alarm after 2 minutes

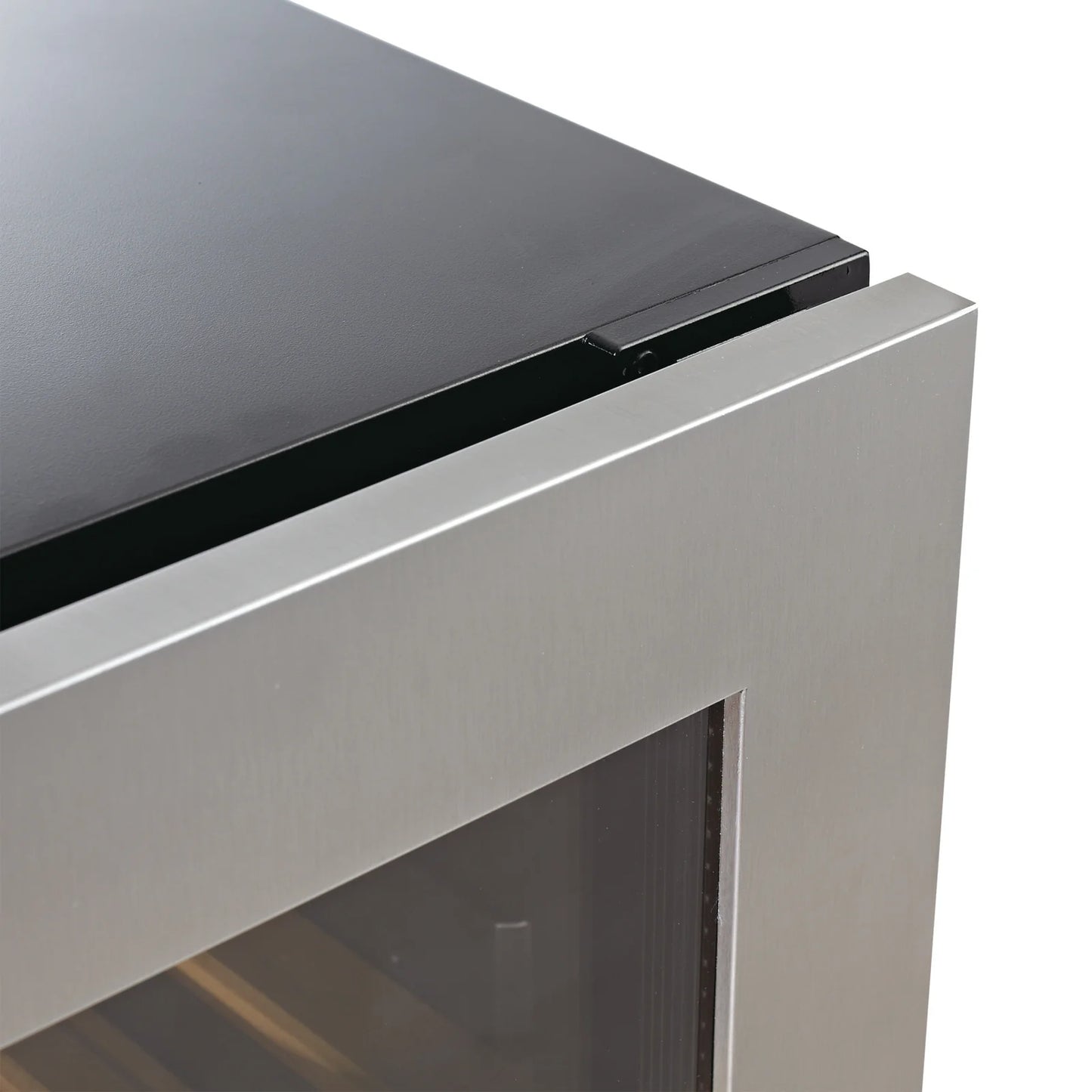

Hidden Door Hinge
-
Laminated steel plate with integrated molding
-
Full built-in seamless design

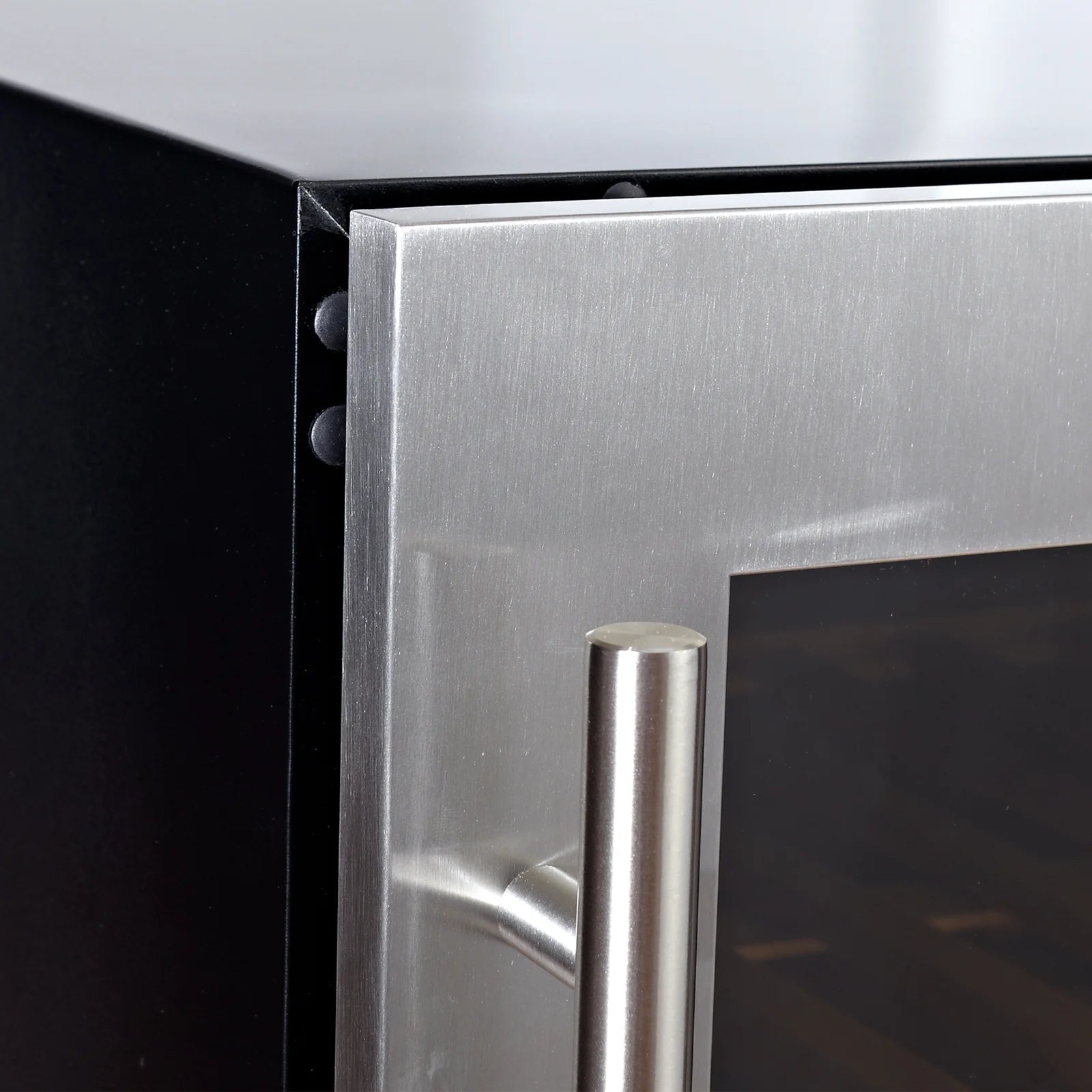

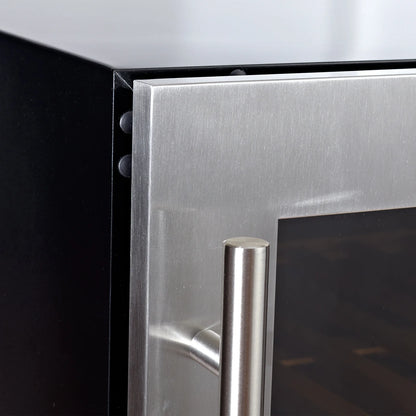

Seamless Stainless Steel Door Frame
-
Thin, modern design with artistic finish
45mm Thickness C-Pantane
-
Thick foam layer improves cooling performance
-
Reduces overall energy consumption
Dimensions & Diagrams
Technical Dimensions
Installation Diagrams
