24-Inch Under-Counter Single-Zone Wine Cooler
Keep your wine collection perfectly chilled with style and efficiency. The 24-Inch Under-Counter Single-Zone Wine Cooler combines sleek design, advanced cooling technology, and smart storage features to protect and showcase your wines in any home or office.
Key Features
-
Single-Zone Temperature Control
Adjustable range: 35°F – 68°F (2°C – 20°C), ideal for both red and white wines. -
Ultra-Quiet Inverter Compressor
Reduces energy use by 40% and ensures silent operation. -
Patented Sink of Compressor
Improves air circulation, cooling performance, and lowers vibration. -
Low-E Glass Door
Blocks UV rays, reduces condensation, and improves insulation. -
Fan-Circulated Cooling System
Maintains even temperature and balanced humidity. -
Activated Carbon Filter
Keeps air fresh and odor-free inside the cabinet. -
Smart Digital Touchpad
Easy-to-use LED display for precise control. -
Premium Beechwood Shelves
Full-extension pull-out design, optimized for larger bottles (up to 3.39” / 86mm diameter). -
Magnetic Door Switch & Alarm
Alerts you if the door is left open for more than 2 minutes. -
Seamless Stainless Steel Frame & Hidden Hinge
A modern, built-in design with an elegant finish. -
Energy-Efficient Build
Thick 45mm foam insulation boosts cooling performance and reduces power consumption.
Specifications
-
Volume: 5.12 CF (145L)
-
Capacity: 46 bottles
-
Installation: Built-in or freestanding
-
Operating Room Temp: 32°F – 100°F (0°C – 38°C)
-
Shelves: 6 beechwood pull-out shelves
-
Dimensions: 23.42”W x 22.75”D x 33.99”H (stand height: 0.59”)
-
Electrical: 110–115V / 60Hz, 165W, 1.7A, R600A refrigerant
-
Certifications: ETL / DOE
Dimensions & Diagrams

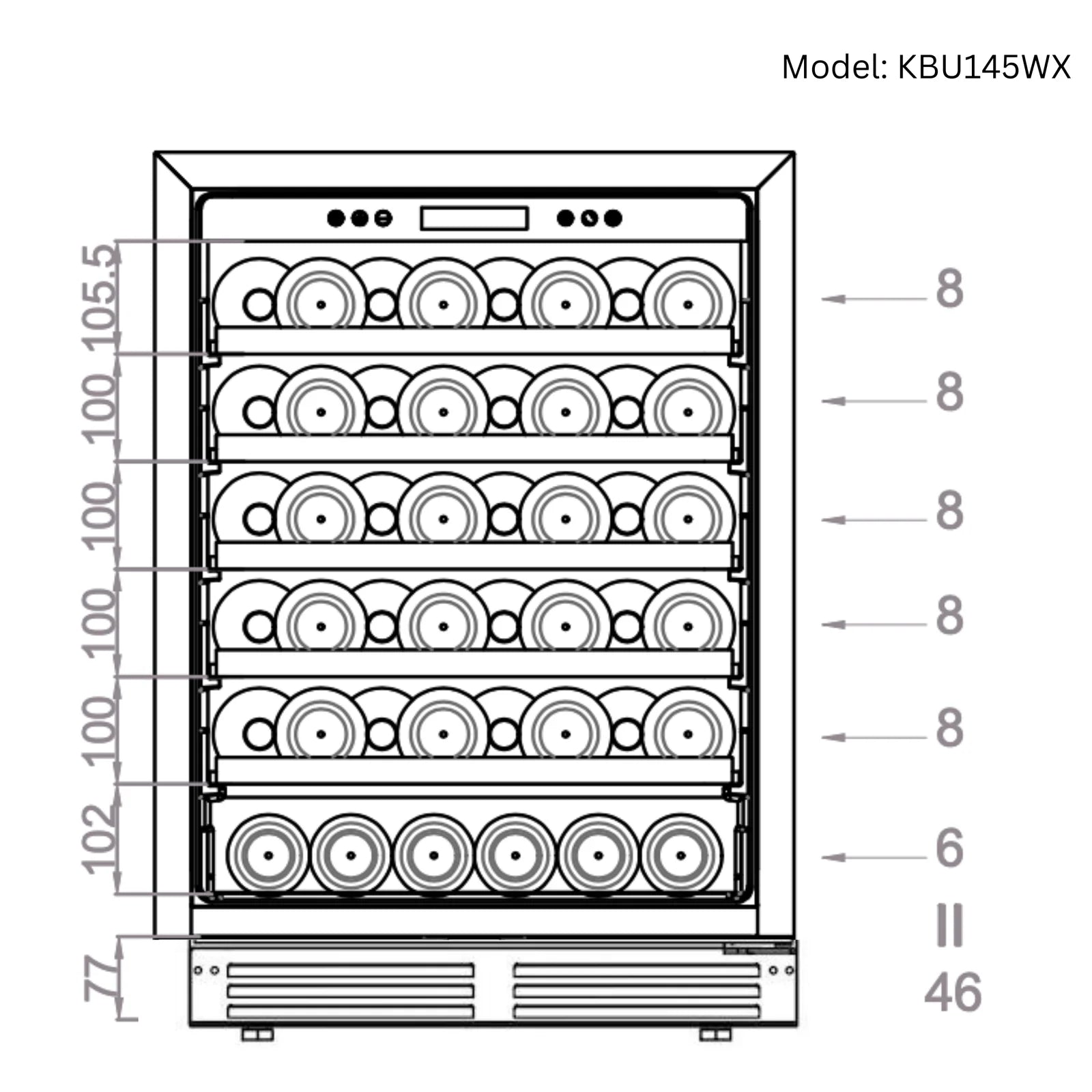

Technical Dimensions
Installation Diagrams
